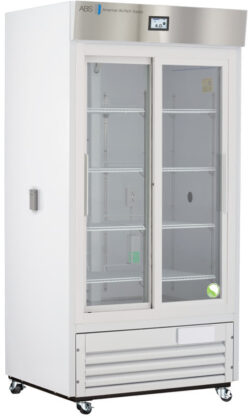

36 cu. ft. capacity TempLog Premier Glass Door Chromatography Refrigerator

Product Number: ABT-HC-CP-36-TS
Green-Leaf-ABS intertek-etl-listed-us-mark-seeklogo31 (002)

The TempLog Premier Glass door Chromatography Refrigerators are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings. An automatic cycle-defrost design prevents product damaging temperature spikes.

The Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging. Industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller. Real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual high and low temperature alarms, along with power outage, sensor error and door ajar alarms, remote alarm dry contacts, a 4-20mA output and an access port are provided to simplify connections to existing facility monitoring systems. A USB port is provided for easy transfer as well as software updates.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

  • 36 Cu. Ft. capacity
  • Two swing glass door, self-closing, right hinged, not reversible
  • Eight adjustable shelves (adjustable in ½” increments)
  • Forced draft air circulation
  • Keyed door lock
  • One GFCI protected duplex electrical outlet
  • Two 2” access ports with spring-loaded, self-closing gasketed metal covers
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • LED interior lights are safety shielded and switch controlled
  • Swivel Casters (3 ½”)
  • Probe access port (3/4″)
  • Advanced hydrocarbon detector
  • White powder-coated steel exterior and interior
  • High density urethane foam cabinet insulation
  • Hydrocarbon, natural refrigerant (R290)
  • ETL Listed
  • Three year parts and labor warranty, plus an additional two year compressor parts warranty
  • Exterior dimensions: 41 1/8” W* x 34 3/4” D x 81 ¾” H with casters; 78 ¼” H without casters. *Width w/access ports closed; 49 1/8” width w/access ports open
  • Cycle defrost
  • 115V, 60 Hz, 4.5 Amps, 1/4 HP
  • Shipping weight: 405 lbs. Note: This unit requires two (2) outlets
  • Microprocessor temperature controller
  • Adjustable operating temperature range: 1°C – 10°C
  • Touch Screen Digital Temperature Display and Alarm Module
  • Password-protected control panel
  • Sample simulated digital temperature display; .1° Resolution, adjustable temperature display in Celsius or Fahrenheit
  • Active temperature scale bar display
  • Resettable 1-point min/max history and digital 24-hour temperature chart Temperature data logging
  • USB port for data transfer and software updates
  • Real-time operational display clock
  • 4-20mA output
  • Electronic troubleshooting guide
  • Electronic QR Code to access Owner’s Manual & technical support contact info Adjustable alarm volume
  • Audible and visual high/low temperature alarms
