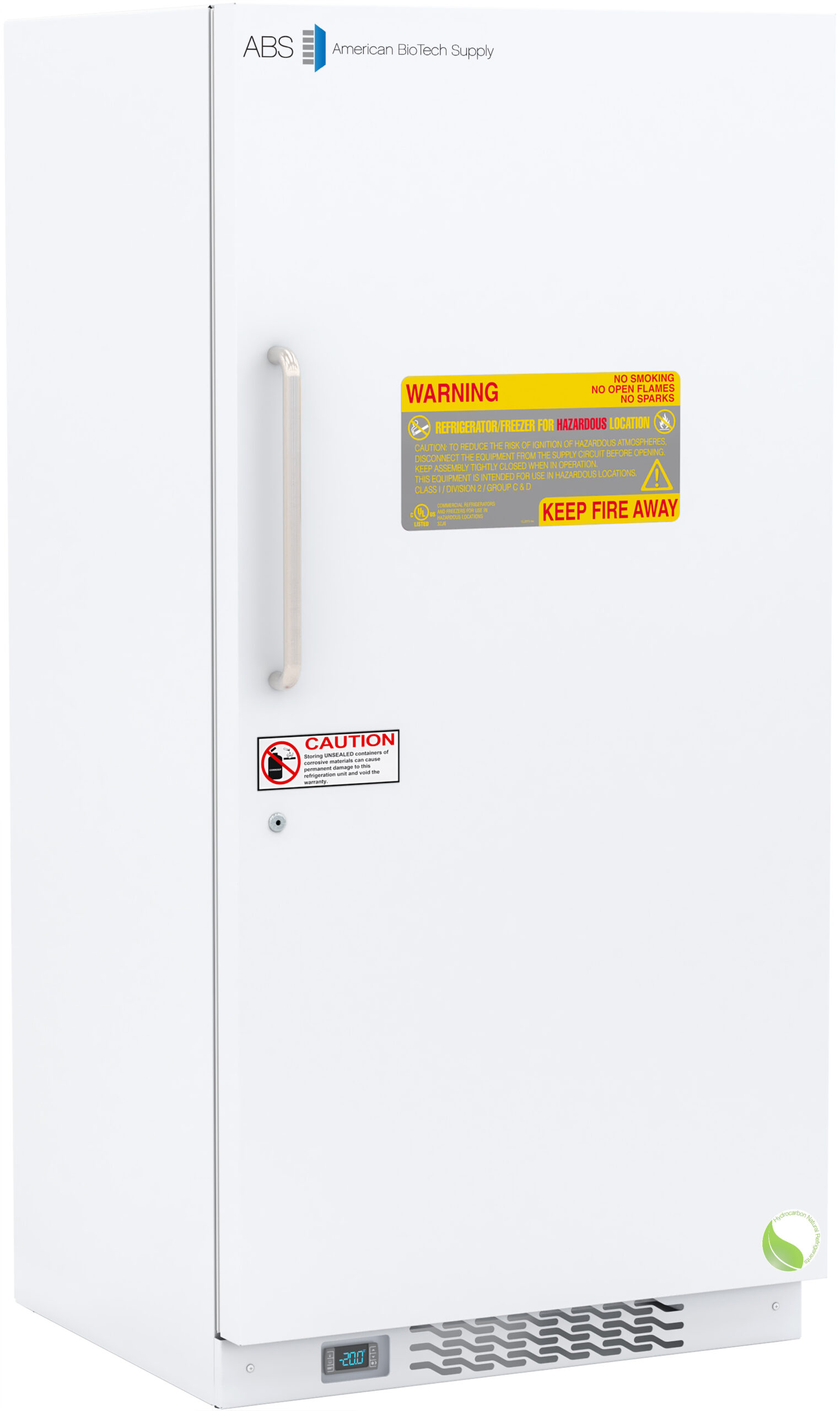

A tall, white upright freezer with a vertical handle on the left side. It has yellow and red warning labels on the front door and a digital temperature display at the bottom. The freezer is from American BioTech Supply.
A white, upright refrigerator with its door open, revealing four empty wire shelves inside. The door has a vertical handle and built-in shelf grooves. A small digital temperature display is located at the bottom front panel of the fridge.
ABT-HC-EFS-30 DataSheet

30 cu. ft. Standard Hazardous Location Freezer

Product Number: ABT-HC-EFS-30 ★ NEW PRODUCT

This hazardous location freezer meets NFPA and OSHA guidelines for the safe storage of materials in potentially hazardous work environments. This model is the ideal choice for industrial environments requiring strict safety protocols. It delivers 30 cubic feet of spacious storage and utilizes EPA SNAP compliant natural refrigerants for environmentally responsible operation. Powered by microprocessor temperature technology, this model delivers precise and stable temperature control. Please note that this unit must be hardwired for safety. With low energy consumption and high safety standards, this model is a safe and efficient solution for hazardous laboratory locations and industrial settings.

A minimalist leaf icon with a gradient color transition from blue at the top to green at the bottom. The leaf features a simple, stylized design with a vertical line down the center, resembling a stem, and two side veins.ul

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Description
Storage capacity (cu. ft) 30 Cu. Ft.
Door One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves Four (4) fixed evaporator shelves
Mounting and Installation Leveling legs
External probe access 3/4″ probe access port on rear wall
Insulation EPA compliant high density urethane foam
Exterior materials Powder coated steel
Access control Keyed door lock
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor parts warranty
Product Weight (lbs) 300
Shipping Weight (lbs) 330
Rated Amperage 3.3 Amps
Power Plug/Power Cord Power cord not included, final power connections must be hardwired to meet local codes
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 Meet NFPA and OSHA guidelines for hazardous locations, Class 1 Division II, Groups C & D
Uniformity (Cabinet air) +/- 3°C
Stability (Cabinet air) +/- 4°C
Maximum temperature variation (Cabinet air) 8°C Total
Energy Consumption (kWh/day) 5.0 kWh/day
Average Heat Rejection (BTU/hr) 705 BTU/hr
Pull down time to nominal operating temp 70 min (empty)
Compressor Hermetic, variable speed
Refrigerant EPA SNAP compliant R290 propane
Condenser Static – exterior walls of cabinet with auxiliary fan
Evaporator Evaporator shelves
Defrost Manual defrost
Controller technology Microprocessor temperature controller with variable frequency compressor control
Battery Backup N/A
Display technology Digital temperature display, sample simulated digital temperature display; .1° resolution
Adjustable Temperature Range -15° C to -25° C
External alarm connection Remote alarm contacts
Alarms Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts
Display Probe Product simulator bottle with glass bead media
Disclaimers Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change. Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure. Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation. Performance may vary with environmental conditions, product load, or door openings.
