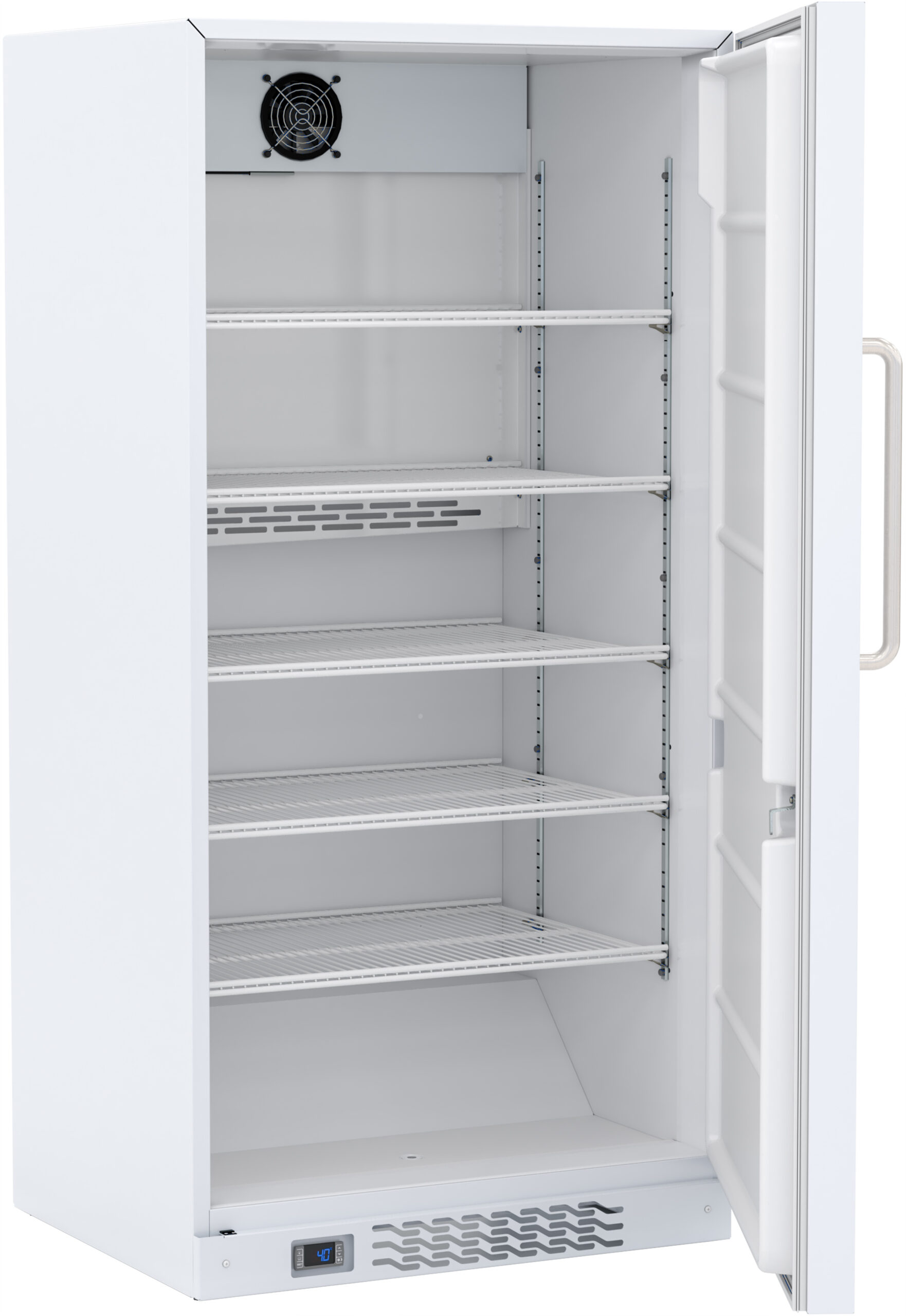

Upright hazardous location refrigerator, door open, shelves showing
ABT-HC-ERS-30 DataSheet 26167 Manual - 30Cuft HC Refrigerator Haz Loc REV 1

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

30 Cu. Ft. Standard Hazardous Location Refrigerator

Product Number: ABT-HC-ERS-30
ALSO AVAILABLE IN THESE SIZES5 9 14 17 20 CU. FT.

This 30 cu. ft. hazardous location refrigerator is meticulously engineered for the safe and reliable storage of volatile materials in potentially hazardous work environments. It’s the ideal choice for industrial environments requiring strict safety protocols. This unit utilizes EPA SNAP compliant natural refrigerants for environmentally responsible operation. Maintaining a consistent temperature range of 2°C to 10°C with tight temperature uniformity, this refrigerator provides dependable cold storage backed by microprocessor technology. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. With low energy consumption and precise temperature control, the ABT-HC-ERS-30 is a safe and efficient solution for hazardous laboratory locations and industrial settings.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-ERS-30

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does the ABT-HC-ERS-30 maintain?

The adjustable temperature range is 2°C to 10°C, with the minimum temperature limited to avoid freezing. Uniformity is +/- 1.6°C and stability is +/- 1.5°C.

Temp Controller tab
What are the exterior dimensions of this refrigerator?

The unit measures 35.75″ wide, 35.5″ deep, and 72.5″ high.

Performance tab
How much clearance does the unit need around it?

The refrigerator requires a minimum 4” of clearance around the back and sides for proper ventilation, with more needed if it is next to heat rejecting equipment. Improper installation will void the warranty and lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What electrical service is required, and does it ship with a power cord?

The facility must provide 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle, with a rated amperage of 3.1 Amps. A power cord is not included — final power connections must be hardwired to meet local codes.

Description tab
What alarms and monitoring features are included?

The unit has audible and visual high/low-temperature alarms, a door ajar alarm, and remote alarm contacts for external alarm connection. A 3/4″ probe access port on the rear wall is provided for external probe access.

Temp Controller tab
What hazardous location certifications does this refrigerator carry, and what is the warranty?

It is UL and c UL listed and meets NFPA and OSHA guidelines for Hazardous locations, Class 1, Division II, Groups C & D. It comes with a two (2) year parts and labor warranty and a five (5) year compressor parts warranty.

Description tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-ERS-30

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
30 Cu. Ft.
Door
One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves Drawers
Five adjustable Non-applicable
Mounting and Installation
Leveling Legs
Interior lighting
Non-applicable
Airflow Management
Forced draft circulation
External probe access
3/4″ probe access port on rear wall
Insulation
EPA compliant high density urethane foam
Exterior materials
Powder coated steel
Access control
Keyed Door Lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor parts warranty
Product Weight (lbs)
320
Shipping Weight (lbs)
350
Rated Amperage
3.1 Amps
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
UL and c UL listed, Meets NFPA and OSHA guidelines for Hazardous locations, Class 1,
Division II, Groups C & D

*Please Note: Power cord is not included, final power connections must be hardwired to meet local codes

Uniformity (Cabinet air)
+/- 1.6°C
Stability (Cabinet air)
+/- 1.5°C
Maximum temperature variation (Cabinet air)
4.6 °C Total
Energy Consumption (KWh/day)
< 1.5 KWh/day
Average Heat Rejection (BTU/hr)
500 BTU/hr
Pull down time to nominal operating temp
<35 min (empty)
Width (in.)
35.75″
Depth (in.)
35.5″
Height (in.)
72.5″
Refrigerant
EPA SNAP compliant R600a Isobutane
Controller technology
Microprocessor temperature controller
Temperature Setpoint Range Notes
Minimum temperature limited to avoid freezing
Refrigerant
EPA SNAP compliant R600a Isobutane
Condenser
Static – exterior walls of cabinet
Evaporator
Fin and tube design, high efficiency fan, hazardous location rated
Display Probe
Product simulator bottle with glass bead media
Adjustable Temperature Range
2°C to 10°C
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low-temperature alarms, Door ajar alarm, Remote alarm contacts
Disclaimers
Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
