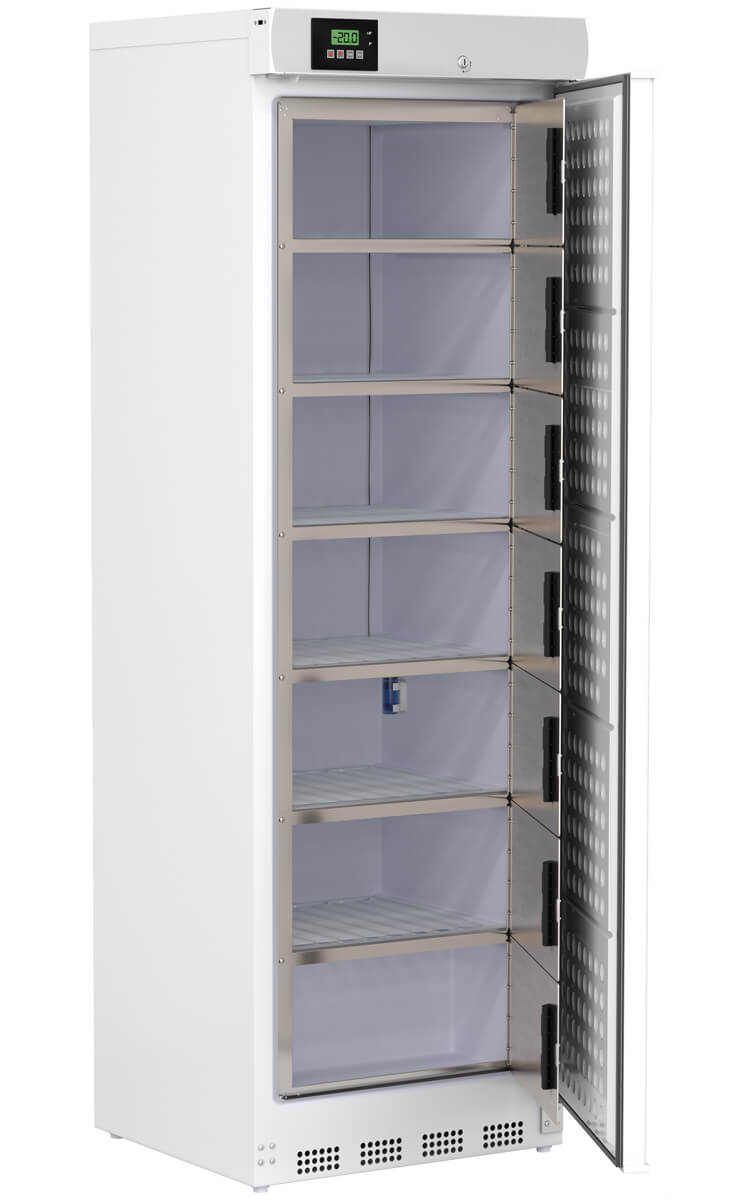

White laboratory refrigerator with glass-fronted door open, revealing seven adjustable shelves and a blue temperature probe inside. Digital control panel with green display sits atop the unit.
White laboratory refrigerator with glass-fronted door open, revealing seven adjustable shelves and a blue temperature probe inside. Digital control panel with green display sits atop the unit.
ABT-HC-FFP-14P Datasheet Manual 21638 - Flammable Series with D100 and MP Control V52 5.10.19

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

14 Cu. Ft. Premier Flammable Storage Manual Defrost Freezer

Product Number: ABT-HC-FFP-14P
ALSO AVAILABLE IN THESE SIZES17 20 30 CU. FT.



Flammable storage freezers meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.

Our Premier Series includes premium additions such as extensive alarm systems and digital touch pad displays. All units run on natural, hydrocarbon refrigerant for environmental health and energy efficiency.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-FFP-14P

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this freezer?

The adjustable temperature range is -15°C to -25°C, controlled by a microprocessor temperature controller with a digital, °C/°F switchable display.

Temp Controller tab
How much clearance do I need around the unit?

The unit requires 4" of clearance around the back and sides for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating, and possible failure.

Details tab
What alarms are built into this freezer?

It has audible and visual high and low temperature alarms, a sensor error alarm, a power failure alarm, alarm validation (audible, visual, and remote alarm), and alarm mute with ring back. State switching remote alarm contacts are provided for external alarm connection.

Temp Controller tab
How many shelves and inner doors does it have?

The freezer includes 6 fixed shelves and 7 inner doors across its freezer compartments.

Details tab
What are the electrical requirements?

The unit requires 115V, 60 Hz service, draws 3.5 Amps, and uses a NEMA 5-15 plug that conforms to UL471 requirements.

Specifications tab
Is this freezer safe to place in a room with explosive vapors?

No. The datasheet states these units are NOT designed for use in environments where volatile/explosive conditions could potentially exist. They are intended for indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH.

Temp Controller tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-FFP-14P

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Door
Solid, right hinged, magnetic door gasket for positive seal
Shelves
6 Fixed
Freezer Compartments
7 Inner Doors
Mounting
Leveling Legs
External probe access
Rear wall port (3/4″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access Control
Keyed Door Lock
Warranty Disclaimer
Products require 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
Agency Listing and Certification
ETL Listed



Rated Amperage
3.5 Amps
Power Plug/Power Cord
NEMA 5-15 Plug, conforms to UL471 requirements
Facility Electrical Requirement
115V, 60 Hz
Agency Listing and Certification
ETL Listed



Controller technology
Microprocessor temperature controller with digital temperature display, °C/°F switchable
Display technology
Bi-Colored LED display and alarm module with .1°C resolution, touchpad controls, resettable 1-point min/max history
Adjustable Temperature Range
-15°C to -25°C
External alarm connection
State switching remote alarm contacts
Alarms
Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, alarm validation (audible, visual, and remote alarm), and alarm mute with ring back
Controller probe
2 Probes; 1 in air and 1 in sample bottle
Disclaimers
These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist Defrosting of the unit will need to be performed periodically to prevent severe ice build-up
Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
Specifications are subject to change
