Upright flammable storage refrigerator, LCD display, door closed, door handle on left Upright flammable storage refrigerator, LCD display, door open

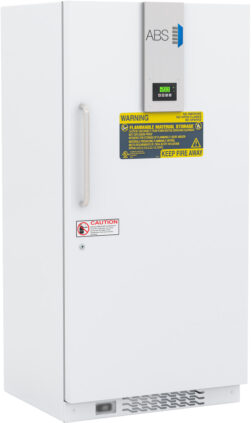

Upright flammable storage refrigerator, LCD display, door closed, door handle on left
Upright flammable storage refrigerator, LCD display, door open
ABT-HC-FRP-30 DataSheet

30 cu. ft. Capacity Premier Flammable Storage Refrigerator with Natural Refrigerants

Product Number: ABT-HC-FRP-30

This 30 cu. ft. premier flammable storage refrigerator with touch pad offers a secure solution for storing volatile materials in laboratory and industrial settings. Utilizing EPA SNAP compliant hydrocarbon refrigerants, this unit minimizes environmental impact while maximizing energy efficiency. This refrigerator provides precise temperature control through microprocessor technology. Enjoy tight temperature uniformity with an operation range of 2°C and 10°C. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. Designed with safety in mind, it includes a comprehensive alarm system with audible and visual high/lowtemperature, sensor error, and power failure alerts, along with remote alarm contacts and a battery backup on alarms for continuous monitoring. With its low energy consumption and enhanced safety features, the ABT-HC-FRP-30 delivers reliable operation for the safe storage of flammable substances.

Product Inquiry
Description
Storage capacity (cu. ft) 30 Cu. Ft.
Door One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves Five adjustable
Drawers Non-applicable
Mounting and Installation Leveling Legs
Interior lighting Non-applicable
Airflow Management Forced draft circulation
External probe access 3/4″ probe access port on rear wall
Insulation EPA compliant high density urethane foam
Exterior materials Powder coated steel
Access control Keyed Door Lock
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor parts warranty
Product Weight (lbs) 350
Shipping Weight (lbs) 380
Rated Amperage 3.1 Amps
Power Plug/Power Cord NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120
standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45 Performance
Uniformity (Cabinet air) +/- 1.6°C
Stability (Cabinet air) +/- 1.0°C
Maximum temperature variation 3.6 °C Total
(Cabinet air)
Energy Consumption (KWh/day) < 1.7 KWh/day
Average Heat Rejection (BTU/hr) 520 BUT/hr
Pull down time to nominal operating temp
<35 min (empty)
Width (in.) 35.75″
Depth (in.) 35.5″
Height (in.) 72.5″
Refrigerant EPA SNAP compliant R600a Isobutane
Controller technology Microprocessor temperature controller with variable frequency compressor control
Battery Backup Temperature display and alarm only (no active cooling)
Display technology Digital Temperature Display, Sample simulated digital temperature display; .1° Resolution
Digital Communication Non-applicable
Data Transfer Non-applicable
Temperature Setpoint Range Notes Minimum temperature limited to avoid freezing
Adjustable Temperature Range 2°C to 10°C
External alarm connection Remote alarm contacts
Alarms Audible and visual high and low temperature alarms, Remote alarm contacts, Sensor error alarm, Power failure alarm, Resettable 1-point Min/Max History, Alarm validation (audible, visual, and remote alarm), Alarm mute with ring back
Display Probe Product simulator bottle with glass bead media
Disclaimers Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
