30 Cu. Ft. Templog Premier Flammable Storage Refrigerator

Product Number: ABT-HC-FRP-30-TS

This 30 cu. ft. touchscreen flammable storage refrigerator offers a cutting-edge solution for storing volatile materials in laboratory and industrial settings. This refrigerator provides precise temperature control through microprocessor technology. Experience tight temperature uniformity with an operation range of 2°C to 10°C. This advanced unit features an intuitive touchscreen digital display that offers a user-friendly interface including digital 24-hour temperature charting with data logging capabilities. For enhanced safety, it includes a comprehensive array of customizable audible and visual alarms, such as high/low temperature, sensor error, power failure, door ajar, and low battery alerts—all alarms including a battery backup for continuous monitoring. Utilizing EPA SNAP compliant hydrocarbon refrigerants, this unit minimizes environmental impact while maximizing energy efficiency. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. With its integrated alarms and enhanced safety features, the ABT-HC-FRP-30-TS delivers advanced performance for the safe storage of flammable substances.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-FRP-30-TS

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The adjustable temperature range is 2°C to 10°C, with the minimum temperature limited to avoid freezing.

Temp Controller tab
What are the exterior dimensions and weight?

The unit measures 35.75″ wide, 35.5″ deep, and 72.5″ high. Product weight is 350 lbs and shipping weight is 380 lbs.

Performance tab and Description tab
How much clearance does it need for installation?

The refrigerator requires a minimum of 4″ of clearance around the back and sides for proper ventilation, and more if placed next to heat-rejecting equipment. Improper installation will void the warranty and can lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What alarms are included and do they keep working during a power outage?

It includes audible and visual high/low temperature alarms, sensor error, power failure, door ajar, and low battery alarms, with adjustable volume, alarm mute with ring back, and customizable time delay settings. A battery backup powers the temperature display and alarms only (no active cooling).

Temp Controller tab
What are the electrical requirements?

The unit is rated at 3.1 Amps and uses a NEMA 5-15P plug with a 6 ft long cord. The facility must provide 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle.

Description tab
What refrigerant does it use and what is the warranty?

It uses EPA SNAP compliant R600a Isobutane refrigerant. The warranty is two (2) years parts and labor, plus a five (5) year compressor parts warranty.

Performance tab and Description tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-FRP-30-TS

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
30 Cu. Ft.
Door
One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves
Five adjustable
Drawers
Non-applicable
Mounting and Installation
Leveling Legs
Interior lighting
Non-applicable
Airflow Management
Forced draft circulation
External probe access
3/4″ probe access port on rear wall
Insulation
EPA compliant high density urethane foam
Exterior materials
Powder coated steel
Access control
Keyed Door Lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor parts warranty
Product Weight (lbs)
350
Shipping Weight (lbs)
380
Rated Amperage
3.1 Amps
Power Plug/Power Cord
NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45 Performance
Uniformity (Cabinet air)
+/- 1.6°C
Stability (Cabinet air)
+/- 1.0°C
Maximum temperature variation
3.6 °C Total
(Cabinet air)
Energy Consumption (KWh/day)
< 1.7 KWh/day
Average Heat Rejection (BTU/hr)
520 BUT/hr
Pull down time to nominal operating temp
<35 min (empty)
Width (in.)
35.75″
Depth (in.)
35.5″
Height (in.)
72.5″
Refrigerant
EPA SNAP compliant R600a Isobutane
Controller technology
Microprocessor temperature controller with variable frequency compressor control
Battery Backup
Temperature display and alarm only (no active cooling)
Display technology
Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24- hour temperature chart, and temperature data logging
Digital Communication
Non-applicable
Data Transfer
Non-applicable
Temperature Setpoint Range Notes
Minimum temperature limited to avoid freezing
Adjustable Temperature Range
2°C to 10°C
External alarm connection
Remote alarm contacts
Alarms
Adjustable alarm volume, Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, door ajar alarm, low battery alarm, alarm validation (audible, visual, and remote alarm), alarm mute with ring back, and customizable alarm time delay settings
Display Probe
Product simulator bottle with glass bead media
Disclaimers
Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure

Related Products

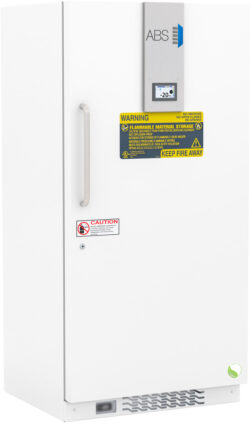

A white, upright ABS laboratory freezer with a silver handle, warning labels, a small digital display showing -20.9°C, and ventilation grilles at the bottom. The freezer is marked for flammable material storage and has a caution sticker.
