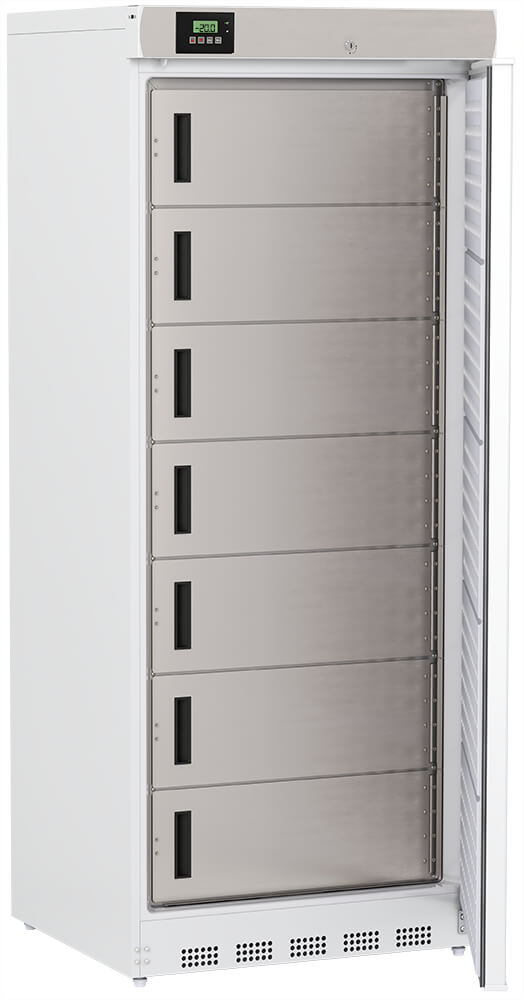

A tall, white, upright freezer with an open door, displaying six horizontal stainless steel drawers and a digital control panel on top.

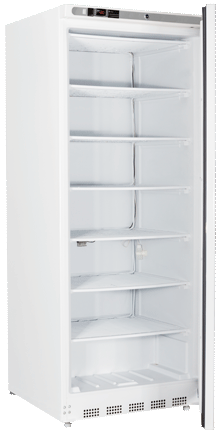

An upright, white commercial refrigerator with the door open, revealing multiple empty shelves inside. The interior is clean and well-lit, showing no contents.
ABT-HC-MFP-20P Datasheet Manual 21632 - Pharmacy, Laboratory, and Chromatography Glass Door Series with D100 and MP Control V52 5.10.19

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

20 Cu. Ft. Premier Manual Defrost Laboratory Freezer

Product Number: ABT-HC-MFP-20P
ALSO AVAILABLE IN THESE SIZES14 15 17 30 CU. FT.



These manual defrost laboratory freezers offer professional cold storage for scientific and industrial settings. Units come equipped with temperature alarms, keyed door locks, probe access, and precise temperature monitoring through microprocessor control.

Our Premier Series freezers include premium additions such as extensive alarm systems and digital touch pad displays. All units run on natural, hydrocarbon refrigerant for environmental health and energy efficiency.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-MFP-20P

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this freezer?

The adjustable temperature range is -15°C to -25°C, controlled by a microprocessor temperature controller with digital temperature display that is °C/°F switchable.

Temp Controller tab
How much does the unit weigh and what are the exterior dimensions?

Product weight is 261 lbs and shipping weight is 286 lbs. Per the datasheet, exterior dimensions are 30.875" wide, 28.75" deep, and 76.325" high, with a door swing of 29.25".

Specifications tab and Datasheet
What clearance does it need for installation?

The product requires 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Details tab
Since this is manual defrost, what do I need to know about defrosting?

Defrost is manual. Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.

Temp Controller tab
What alarms are included?

It includes audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, alarm validation (audible, visual, and remote alarm), and alarm mute with ring back. State switching remote alarm contacts are provided for external alarm connection.

Temp Controller tab
What electrical supply does it require?

The facility electrical requirement is 115V, 60 Hz, with a rated amperage of 6 Amps. The power cord uses a NEMA 5-15 plug that conforms to UL471 requirements.

Specifications tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-MFP-20P

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Door
Solid, right hinged, magnetic door gasket for positive seal
Shelves
6 Fixed
Freezer Compartments
7 Inner Doors
Mounting
Leveling Legs
External probe access
Rear wall port (3/4″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access Control
Keyed Door Lock
General warranty
Two (2) year parts and labor warranty
Compressor Parts Warranty
Five (5) year compressor parts warranty
Warranty Disclaimer
Products require 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
Agency Listing and Certification
ETL Listed



Product Weight (lbs)
261
Shipping Weight (lbs)
286
Rated Amperage
6 Amps
Power Plug/Power Cord
NEMA 5-15 Plug, conforms to UL471 requirements
Facility Electrical Requirement
115V, 60 Hz

Defrost                                           Manual

Controller technology
Microprocessor temperature controller with digital temperature display, °C/°F switchable
Display technology
Bi-Colored LED display and alarm module with .1°C resolution, touchpad controls, resettable 1-point min/max history
Adjustable Temperature Range
-15°C to -25°C
External alarm connection
State switching remote alarm contacts
Alarms
Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, alarm validation (audible, visual, and remote alarm), and alarm mute with ring back
Controller probe
2 Probes; 1 in air and 1 in sample bottle
Disclaimers
Defrosting of the unit will need to be performed periodically to prevent severe ice build-up Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
Specifications are subject to change



Related Products

A large, upright, white laboratory freezer with a digital control panel on the upper front, a long vertical handle, a Caution sign, and vents at the bottom. The freezer stands on four wheels for mobility and is photographed against a plain background.
ABT-MFP-30 30 Cu. Ft. Manual Defrost Laboratory Freezer
Product Number: ABT-MFP-30

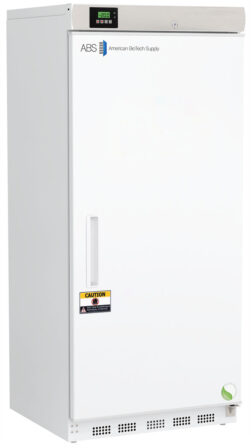

A tall, white laboratory freezer with a digital temperature display on top, labeled ABS American BioTech Supply. The door has a handle, a caution sticker, and a circular green certification mark near the bottom. The surface is clean and unadorned.
