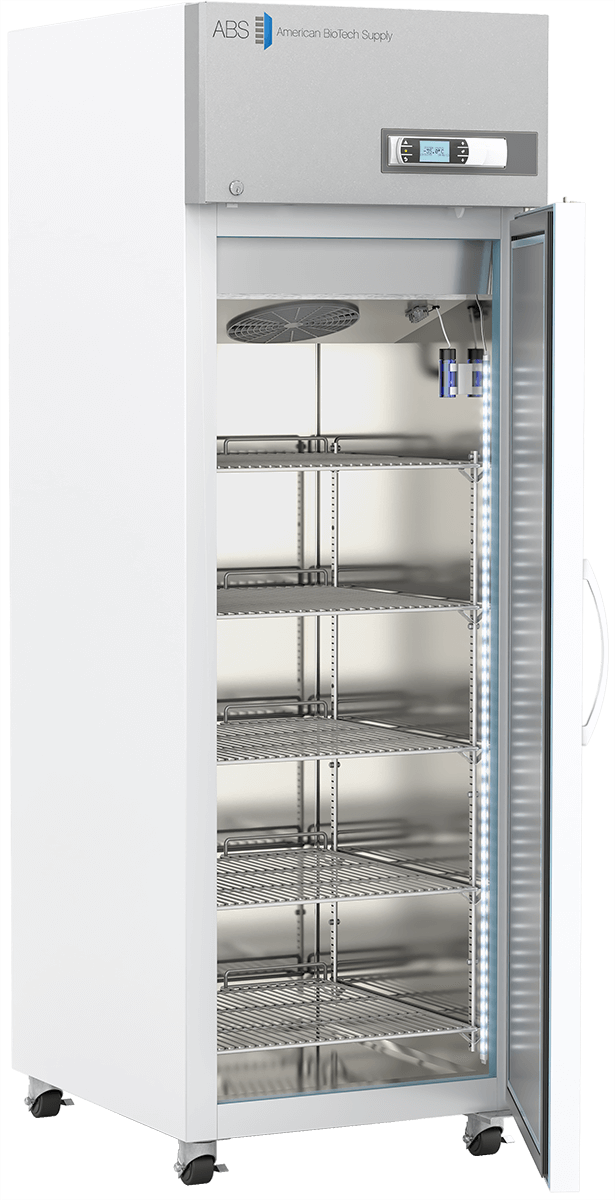

A tall, white 23 Cu. Ft. Premium Laboratory Auto Defrost Freezer by American Biotech Supply with a gray top control panel, glass door partially open, interior lit by vertical LED lights, and six empty metal wire shelves inside; temperature controls on the front.
ABT-HC-PLF-23 DataSheet

23 Cu. Ft. Premium Laboratory Auto Defrost Freezer

Product Number: ABT-HC-PLF-23
Green-Leaf-ABSintertek-etl-listed-us-mark-seeklogo31 (002)

The ABT-HC-PLF-23 Premium Laboratory Freezer delivers superior cooling performance through advanced variable speed compressor (VSC) technology. This 23 cubic foot unit provides ultra-quiet operation while achieving exceptional temperature uniformity of ±0.7°C and stability of ±1.8°C across the cabinet. With energy consumption of just 8.57 kWh per day, the system optimizes power usage by self-adjusting compressor speeds based on cooling demands.

Engineered for demanding laboratory environments, the ABT-HC-PLF-23 features microprocessor-controlled temperature management with a full array of protective alarms including power failure, sensor failure, and high/low temperature alerts. The unit maintains precise control across an adjustable range of -35°C to -15°C, with rapid pull-down to operating temperature. A 24V high-capacity battery backup ensures continuous monitoring and data logging even during power interruptions.

Built for reliability and longevity, the ABT-HC-PLF-23 is backed by a two-year parts and labor warranty and a seven-year compressor warranty. With high-density urethane foam insulation and durable white powder-coated steel construction. Five adjustable shelves with rear guard rails maximize the 23 cubic foot storage capacity, while full-coverage LED lighting provides excellent visibility. The unit arrives ready to install on four preinstalled swivel casters with front locking capability, requiring only a standard 110-120V AC connection.

Key Features

  • Variable speed compressor technology for optimized cooling
  • Ultra-quiet operation at 43 dBA or less
  • Temperature uniformity of ±0.7°C and stability of ±1.8°C across cabinet
  • Energy-efficient 8.57 kWh/day consumption with 1710 BTU/hr heat rejection
  • Seven-year compressor warranty with two-year parts and labor coverage

Benefits

  • Reduce laboratory noise pollution while maintaining superior cooling performance
  • Lower operating costs through intelligent energy consumption that self-adjusts to demand
  • Protect samples with precise temperature control and comprehensive alarm systems
  • Ensure data integrity with battery backup monitoring during power failures
  • Meet compliance requirements with ETL/C-ETL certification to UL471 standards

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Description
Storage capacity (cu. ft) 23
Door Single Swing Solid Right Hinged Door(s)
Shelves Five adjustable shelves with guard rail on back
Drawers Optional pull-out drawers available
Mounting and Installation 4 preinstalled swivel casters, front casters locking
Interior lighting Shielded, switched LED lighting, full coverage, balanced spectrum
Airflow Management Non-applicable
External probe access Rear wall port (3/4″) dia.
Insulation Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials White powder coated steel
Access control Key Lock
General warranty Two (2) years parts and labor warranty
Compressor warranty Seven (7) years compressor warranty
Product Weight (lbs) 272
Shipping Weight (lbs) 331
 Exterior Width (in)  26 7/8
 Exterior Depth (in)  36 3/8
 Exterior Height (in)  81 1/2
Rated Amperage 7 Amps
Power Plug/Power Cord NEMA 5-15 plug
Facility Electrical Requirement 110-120V AC: 15 A (minimum)
Agency Listing and Certification ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety

Accessory:

ABT-DWRKIT-PL23



Uniformity¹ (Cabinet air) ±0.7
 Stability² (Cabinet air) ±1.8
Maximum temperature variation (Cabinet air) ±1.8
Stability² (Simulator ballast) Non-applicable
Stability² (Simulator bag) Non-applicable
Temperature Rise after Short Door Openings Non-applicable
Recovery after Short Door Openings Non-applicable
Energy Consumption (KWh/day) 8.57
Average Heat Rejection (BTU/hr) 1710
Noise Pressure Level (dBA) 43 or less installed
Pull down time to nominal operating temp 78 min
Compressor Hermetic, variable speed (VSC). Rated speed range: 2000-4500
Refrigerant EPA SNAP compliant, R290
Condenser Fin and tube design, high efficiency fan
Evaporator Fin and tube design, high efficiency fan
Defrost Cycle optimized, automatic



Controller technology Proportional Integral Derivative (PID) microprocessor with LCD display
Battery Backup 24V high-capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
Display technology Non-applicable
Digital Communication RS-485 (MODBUS)
Data Transfer USB port for data transfer and software updates
Chart Recorder Non-applicable
Adjustable Temperature Range -35°C to -15°C
External alarm connection State switching remote alarm contacts
Alarms Alarm logging (last 100 entries) with Visual and audible indicators: Power failure, Temperature sensor failure, Battery voltage monitor and replacement, High / Low temperature, Door ajar.
 Controller probe   Bottle with glass bead thermal media



Related Products

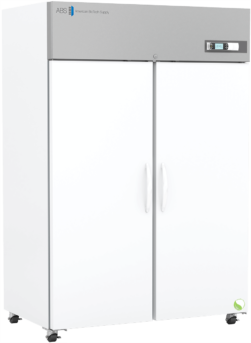

A large, white, double-door ABS Premium Lab Freezer with a gray control panel labeled “ABS American Biotech Supply.” It features curved handles, a digital display, caster wheels, and a green circular logo at the bottom right corner. Ideal as a laboratory freezer.
