16 Cu. Ft. Refrigerator and Auto Defrost Freezer Combination

Product Number: ABT-HC-RFC-16A



These Laboratory refrigerator and freezer combination units are designed with a variable speed compressor to deliver unparalleled temperature control. Safeguard your samples with superior temperature uniformity and recovery, even after frequent door openings. Monitor your laboratory samples though intuitive digital displays and protective alarms.

Champion sustainability with natural hydrocarbon refrigerants—which not only contribute to energy savings, but also foster a greener laboratory footprint.  Elevate your laboratory cooling experience with an integrated solution that brings together innovation, performance, and precision.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-RFC-16A

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the adjustable temperature ranges for the refrigerator and freezer sections?

The refrigerator has an adjustable temperature range of 1°C to 10°C, and the freezer has an adjustable range of -35°C to -15°C.

Temp Controller tab
What refrigerant does this combination unit use?

It uses R600a, a natural hydrocarbon refrigerant.

Performance tab
How is the interior configured for shelving and storage?

The unit provides 13 cu. ft. of refrigerator space with 3 adjustable vented stainless steel shelves, and 3 cu. ft. of freezer space with 1 fixed shelf. Both compartments are accessed through double swing solid right hinged doors.

Description tab
What are the exterior dimensions and weight of ABT-HC-RFC-16A?

The exterior measures 31 in wide, 35.5 in deep, and 76 in high. Product weight is 262 lbs and shipping weight is 292 lbs.

Description tab
What alarms and battery backup are included?

The unit has audible and visual high and low temperature alarms for both the refrigerator and freezer, loss of power alarm, door alarm, and remote alarm contacts. A 12V high-capacity battery provides 36 hours of backup for alarms, controller, temperature monitoring DAQ, and event logging.

Temp Controller tab
What warranty coverage comes with this unit?

It carries a two (2) year parts and labor warranty and a seven (7) year compressor warranty.

Description tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-RFC-16A

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description



Storage capacity (cu. ft)
13 Cu. Ft. Refrigerator / 3 Cu. Ft. Freezer
Door
Double Swing Solid Right Hinged Doors
Shelves (Frg/Frz)
3 adjustable, vented stainless steel shelves refrigerator / 1 fixed shelf freezer
Drawers (Frg/Frz)
Non-applicable
Mounting and Installation
Leveling Legs
Interior lighting
12V LED light bar (Refrigerator)
Airflow Management (Refrigerator)
Forced draft air circulation (Refrigerator)
External probe access
Probe access port (3/8″) dia., 2 ea. (1 for Refrigerator/1 for Freezer)
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
Bioscience Grey powder coated canopy, white textured chamber exterior
Access control
Keyed door lock
General warranty
Two (2) years parts and labor warranty
Compressor warranty
Seven (7) years compressor warranty
Product Weight (lbs)
262
Shipping Weight (lbs)
292
 Exterior Width (in)
 31
 Exterior Depth (in)
 35.5
 Exterior Height (in)
 76
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 Plug
Facility Electrical Requirement
110-120V AC: 15 A (minimum)
Agency Listing and Certification
ETL, C-ETL listed and certified to UL 471 Standard for Commercial Refrigerators and Freezers and CSA C22.2#120 Refrigeration Equipment



Refrigerator Uniformity¹ (Cabinet air)
+/-0.22°C
Refrigerator Stability² (Cabinet air)
±0.48°C
Refrigerator Maximum temperature variation
±0.71°C
(Cabinet air)
Freezer Uniformity¹ (Cabinet air) ±0.69°C
Freezer Stability² (Cabinet air) ±1.14°C
Freezer Maximum temperature variation
±1.95°C
(Cabinet air)
Energy Consumption (KWh/day)
3.73
Average Heat Rejection (BTU/hr)
5.25
Average Heat Rejection (BTU/hr)
746
Noise Pressure Level (dBA)
48 or less installed
Pull down time to nominal operating temp (Frg/Frz)
40 min / 165 min
 Compressor
 Variable speed (VSC), Refrigerator. Rated speed range: 1300-4000 rpm
 Refrigerant
 R600a
 Condenser
 Anti-fouling tube and grid design
 Evaporator
 Fin and tube design, high efficiency fan
 Defrost (Refrigerator/Freezer)
 Cycle Optimized Zero-Energy /  Auto Defrost



Controller technology
Individual XRi77CH microprocessor temperature controllers for both the refrigerator and freezer with digital temperature display, °C/°F switchable
Battery Backup
12V high-capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
Display technology
Bi-Colored LED display and alarm module with .1°C resolution, touchpad controls, resettable 1-point min/max history
Digital Communication
RS-485 (MODBUS)
Chart Recorder
Non-applicable
Adjustable Temperature Range (Refrigerator)
1°C to 10°C
Adjustable Temperature Range (Freezer)
-35°C to -15°C
External alarm connection
State switching remote alarm contacts
Alarms
Audible and visual high and low temperature alarms, refrigerator and freezer, 36 hour battery back-up on alarms, high/low temperature & loss of power, remote alarm contacts, door alarm
Controller probe
2 probes for each chamber; 1 in air and 1 in sample bottle



Related Products

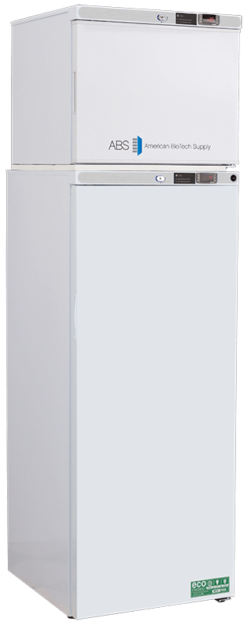

A tall, white laboratory refrigerator and freezer unit from American BioTech Supply. The top compartment is smaller, with a digital display and labeled logo. The larger bottom compartment has a separate door and digital controls. Both sections are plain with minimal markings.
