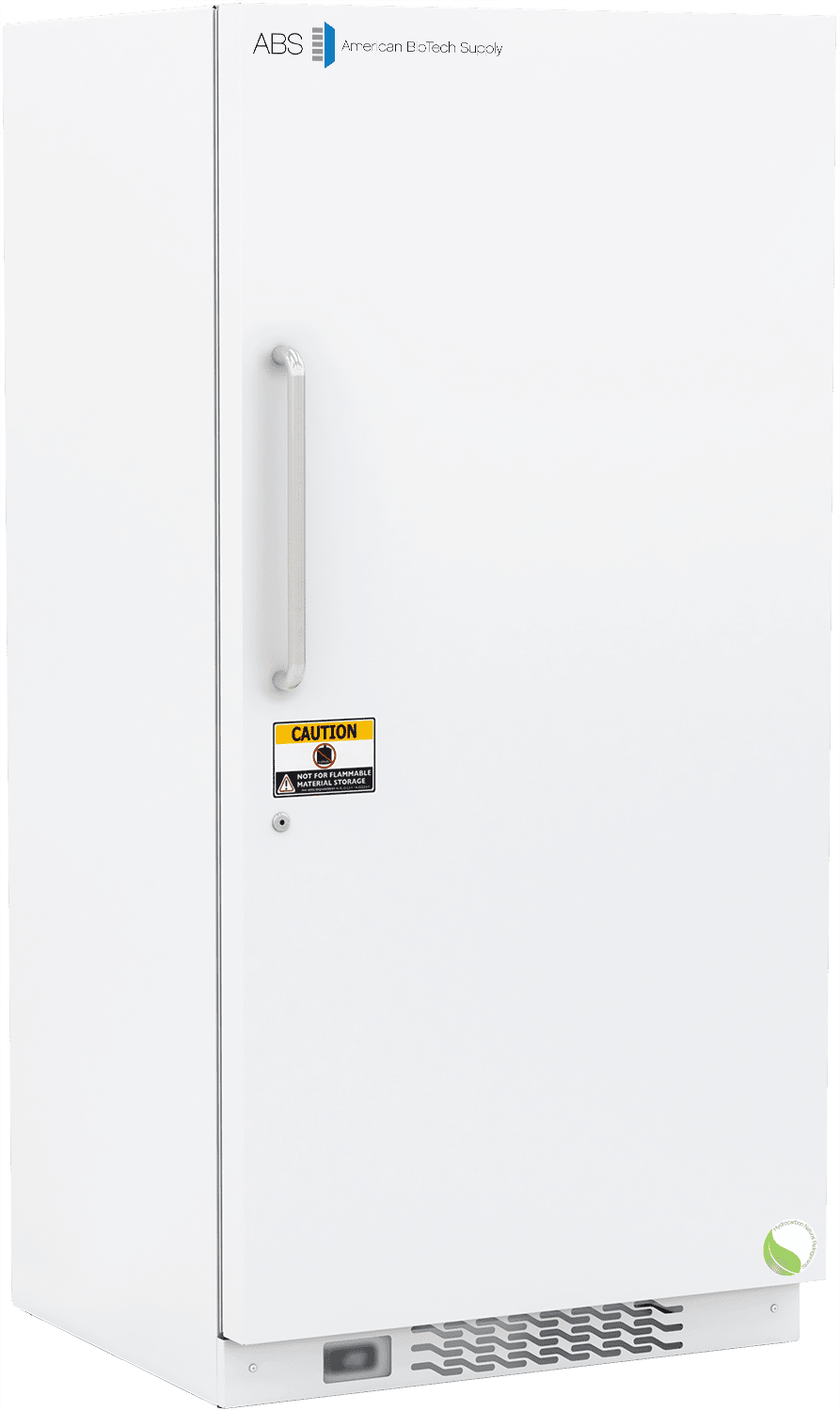

A tall, white laboratory freezer with a vertical handle on the left, a small caution sticker on the door, a digital display and vent at the bottom, and “ABS American BioTech Supply” branding at the top. The background is plain white.

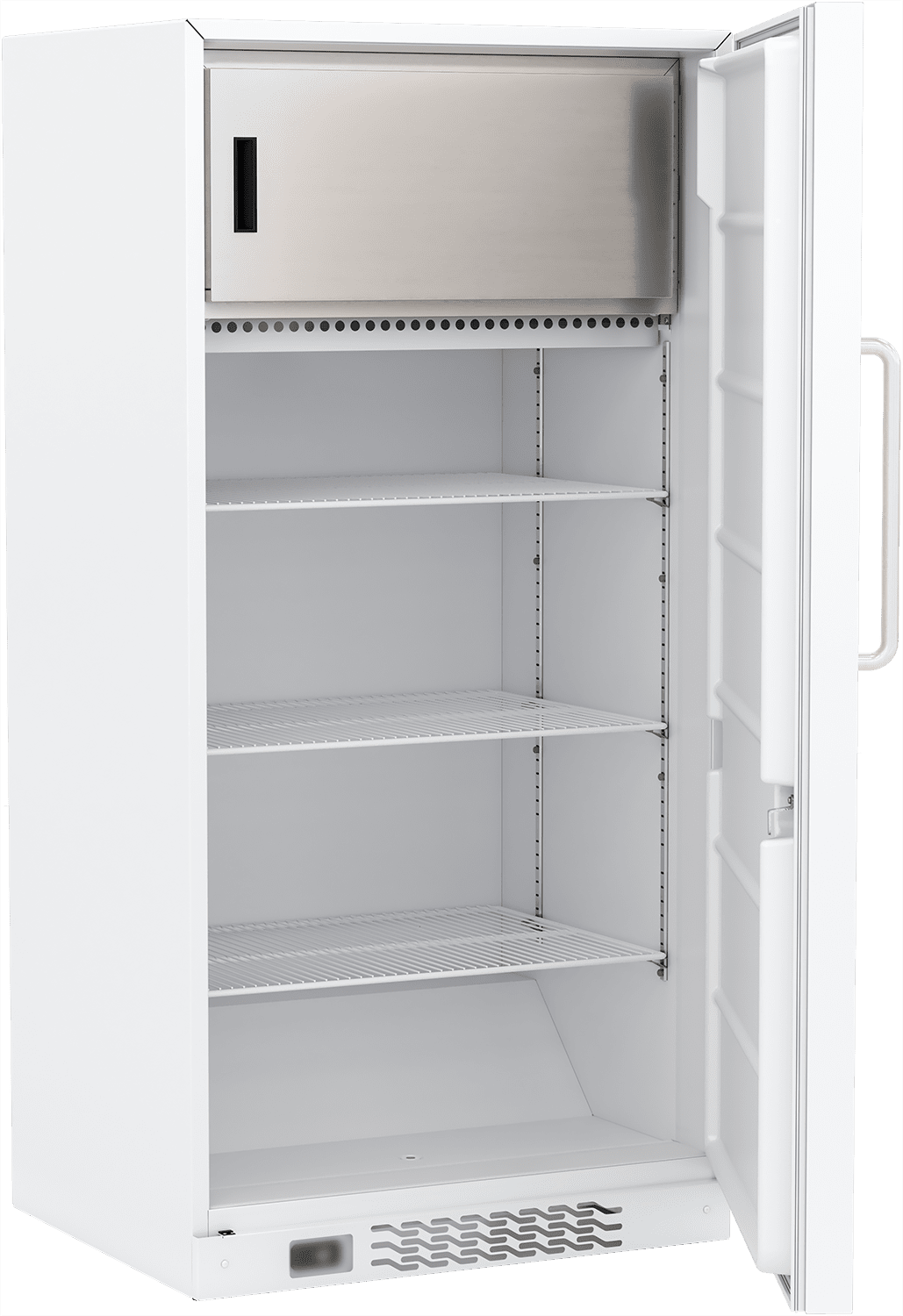

A tall, white, upright freezer with its door open, revealing three adjustable wire shelves, a bottom compartment, and a large metallic cooling unit at the top. The interior is empty and clean, with a handle on the door’s right side.

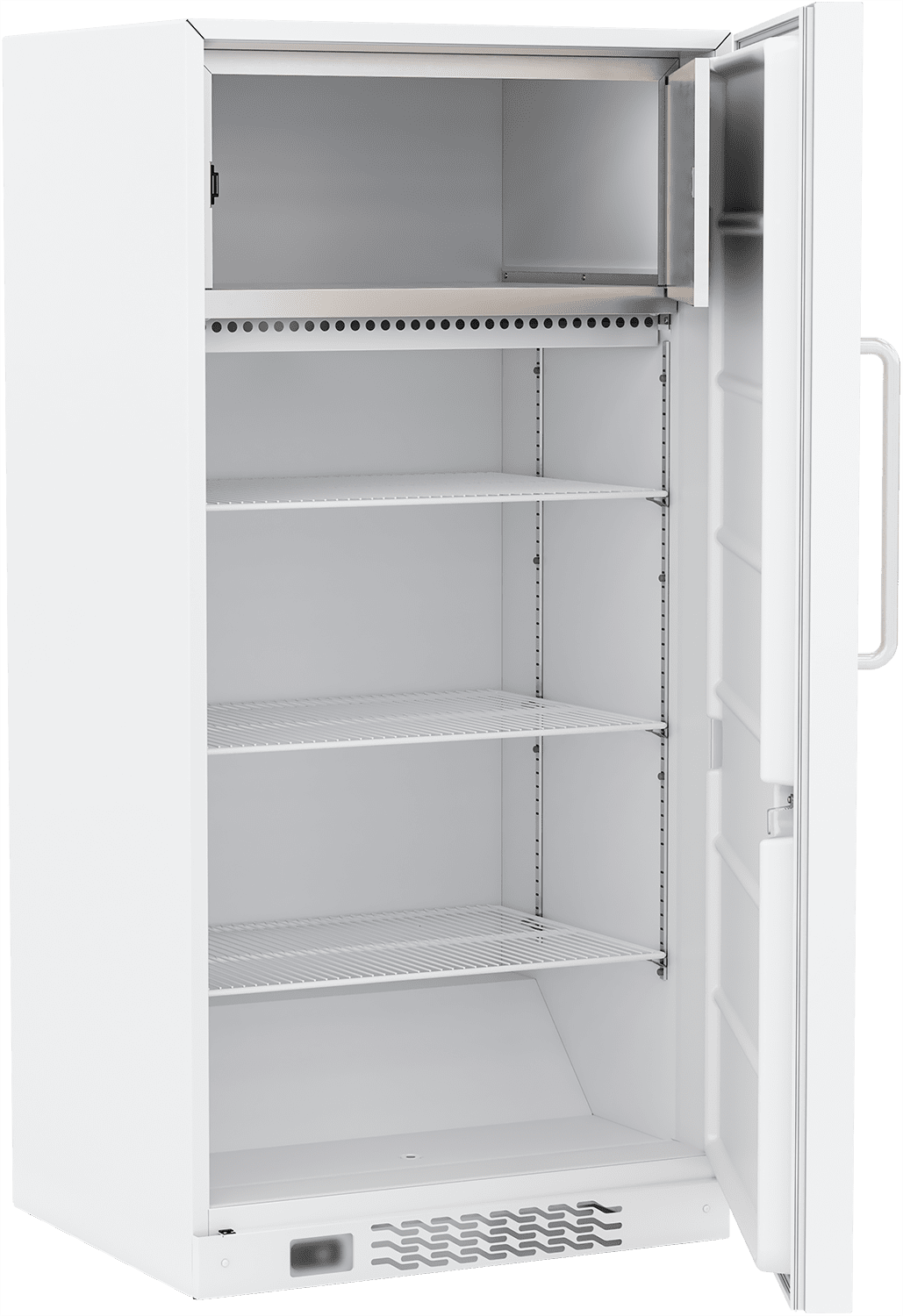

A tall, white, single-door refrigerator with the door open, revealing four empty wire shelves inside. The interior and exterior are plain and clean, and the handle is mounted vertically on the right side of the door. The fridge is well-lit and unused.
DataSheet

30 Cu. Ft. Standard Laboratory Refrigerator/Freezer Combination Unit

Product Number: ABT-HC-RFC-30M ★ NEW PRODUCT

This standard laboratory refrigerator/freezer combination unit offers 30 cubic feet of versatile storage for laboratory environments. Its temperature control is powered by microprocessor technology for improved temperature precision and uniformity. A series of audible and visual alarms safeguards stored contents for added protection. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and environmental benefits, this model is an efficient and dependable solution for general laboratory applications.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Details
Storage capacity (cu. ft) 30 Cu. Ft. (25 Cu. Ft. Refrigerator/5 Cu. Ft. Freezer
Door One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Interior One (1) inner door (Freezer)
Shelves Three (3) adjustable wire shelves (Refrigerator)
Mounting and Installation Leveling legs
External probe access Two (2) 3/4″ probe access port on rear wall
Insulation EPA compliant high density urethane foam
Exterior materials Powder coated steel
Access control Keyed door lock
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor warranty
Product Weight (lbs) 353
Shipping Weight (lbs) 383
Rated Amperage 3 Amps
Power Plug/Power Cord NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard
Freezer Maximum temperature variation +/- 4.5°C
Refrigerator Maximum temperature variation +/- 2.5°C
Freezer temperature range -15°C to -20°C
Refrigerator temperature range 0°C to 8°C
Pull down time to nominal operating temp 90 min (empty)
Energy Consumption (kWh/day) 4 kWh/day
Average Heat Rejection (BTU/hr) 570 BTU/hr
Compressor Hermetic, variable speed
Refrigerant EPA SNAP compliant R290 propane
Condenser Static – exterior walls of cabinet  with auxiliary fan
Evaporator Evaporator shelves
Defrost Manual defrost
Controller technology Microprocessor temperature controller with variable frequency compressor control
Battery Backup Non-applicable
External alarm connection Remote alarm contacts
Alarms Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts
Disclaimers Defrosting of the unit will need to be performed periodically to prevent severe ice build-up and to ensure proper temperature control. Refrigerator temperatures are impacted by the freezer temperature, especially at coldest freezer settings. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change.  Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
