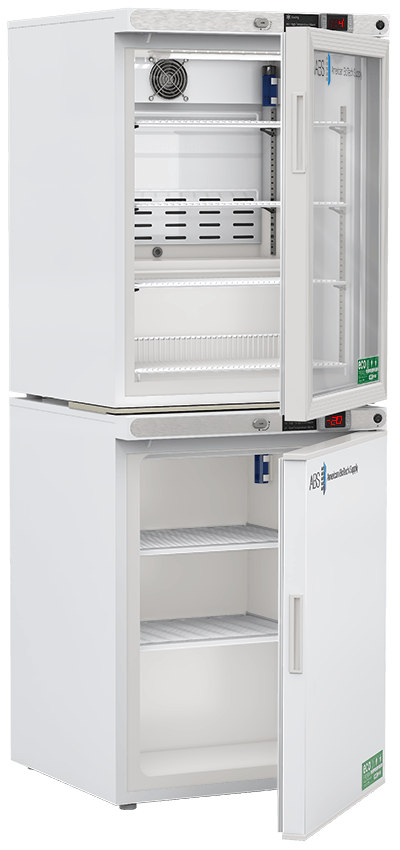

A white, double-unit laboratory refrigerator and freezer from American BioTech Supply. The upper section has a glass door, shelves, and digital display. The lower section has a solid door and its own digital display. Both feature eco-friendly labels. Two stacked white laboratory refrigerators with glass doors, each with digital temperature displays and control panels.
A white, double-unit laboratory refrigerator and freezer from American BioTech Supply. The upper section has a glass door, shelves, and digital display. The lower section has a solid door and its own digital display. Both feature eco-friendly labels.
Two stacked white laboratory refrigerators with glass doors, each with digital temperature displays and control panels.
ABT-HC-RFC1020G Int Cutsheet ABT-HC-RFC1020G SpecSheet ABT-HC-RFC1020G Ext Cutsheet Manual 21634 - Undercounter and Mid-Size with Dual Probe V52 Dual Probe

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

10 Cu. Ft. Refrigerator & Freezer (-20°C Operation) Combination, with Glass Door Refrigerator

Product Number: ABT-HC-RFC1020G



The Premier Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-RFC1020G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the temperature ranges for the refrigerator and freezer sections?

The freezer has an adjustable operating range of -15°C to -25°C, and the refrigerator adjusts from 2°C to 8°C.

Temp Controller tab
What are the exterior dimensions and clearance requirements?

Exterior dimensions are 23 3/4″ W x 24″D x 65″H. The unit must have 4" clearance on sides and back for adequate ventilation.

Specifications tab
How is defrost handled on this combination unit?

The freezer uses manual defrost and the refrigerator uses cycle defrost. For manual defrost freezers, periodic manual defrosting is required.

Specifications tab / Summary
What alarms and monitoring features are included?

The unit has a microprocessor temperature controller with digital temperature display, audible and visual high and low temperature alarms, 2 probes (1 in air and 1 in a sample bottle), and remote alarm contacts.

Temp Controller tab
What are the electrical requirements?

The unit runs on 115V, 60 Hz. The freezer draws 1.4 Amps at 1/8 HP and the refrigerator draws 1.3 Amps at 1/6 HP.

Specifications tab
What warranty comes with this unit?

It carries a two year parts and labor warranty, plus an additional three year compressor parts only warranty. Note that improper installation will void the warranty.

Details tab / Summary
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-RFC1020G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 5.2 cu. ft. capacity (Refrigerator) / 4 cu. ft. capacity (Freezer) One glass swing door (fridge), one solid swing door (freezer)
  • 2 fixed shelves (freezer); 3 adjustable shelves (fridge)
  • Bottom footed shelf to allow air circulation
  • Back wall evaporator cover
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handles
  • Stacking kit
  • Leveling legs
  • LED interior light
  • Probe access port (3/8″)
  • White cabinet and door
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty

Accessories:

0504 Basket

ABT-SLD BSKT-FULL-0504



0504 Bottom Basket ABT-BSKT-BASE-FIXED-0504

  • Exterior dimensions:23 3/4″ W x 24″D x 65″H
  • Note: This unit must have 4” clearance on sides and back for adequate ventilation
  • Manual defrost (freezer); Cycle defrost (refrigerator)
  • 115V, 60 Hz
  • 1.4 Amps, 1/8 HP (freezer); 1.3 Amps, 1/6 HP (refrigerator)
  • UL/C-UL listed
  • Shipping weight: 266 lbs.
  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
  • Adjustable operating temperature range – Freezer: -15°C – -25°C; Refrigerator: 2°C to 8°C

Related Products

Two stacked, white laboratory refrigerators by American BioTech Supply ABS, featuring digital temperature displays and eco-friendly certification stickers on the lower right corners of each door. The units have simple, rectangular shapes and metallic handles.
ABT-HC-RFC1020 10 cu. ft. Refrigerator & Freezer (-20°C Operation) Combination
Product Number: ABT-HC-RFC1020
A tall, white, medical refrigerator with a transparent lower door showing six wire shelves and a solid upper freezer compartment labeled “American BioTech Supply.” Digital displays and eco-friendly labels are visible on the front.
ABT-HC-RFC12G 12 Cu. Ft. Refrigerator and Freezer Combination with Glass Door Refrigerator
Product Number: ABT-HC-RFC12G

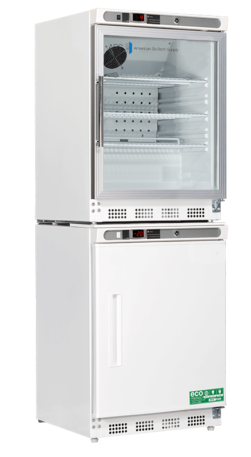

A laboratory refrigerator and freezer unit with a clear glass door on top showing shelves, and a solid white door on the bottom. Both sections have digital temperature displays, vents, and labels, with a green “ECO” sticker on the lower door.
