10 Cu. Ft. Refrigerator & Freezer (-30°C Operation) Combination

Product Number: ABT-HC-RFC1030



The Premier Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-RFC1030

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature ranges can I set on the freezer and refrigerator sections?

The adjustable operating range is -27°C to -33°C for the freezer and 2°C to 8°C for the refrigerator.

Temp Controller tab
What are the exterior dimensions and clearance requirements?

The exterior dimensions are 23 3/4" W x 24"D x 65"H. The unit requires 4" of clearance on the sides and back for adequate ventilation.

Specifications tab
How is the capacity split between the refrigerator and freezer, and what shelving is included?

The refrigerator section is 5.2 cu. ft. and the freezer section is 4 cu. ft. Each section has 3 adjustable shelves, plus a bottom footed shelf to allow air circulation.

Details tab
What type of defrost does this unit use?

The freezer uses manual defrost and the refrigerator uses cycle defrost. For the manual defrost freezer, periodic manual defrosting is required.

Specifications tab
What alarms and temperature monitoring come with the unit?

It has a microprocessor temperature controller with a digital temperature display, audible and visual high and low temperature alarms, 2 probes (1 in air and 1 in a sample bottle), and remote alarm contacts.

Temp Controller tab
What refrigerants does the combination use and what is the warranty?

The refrigerator uses HFC-free R600a and the freezer uses natural hydrocarbon R290 refrigerant. The warranty is two years parts and labor, plus an additional three year compressor parts only warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-RFC1030

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 5.2 cu. ft. capacity (Refrigerator) / 4 cu. ft. capacity (Freezer) One solid swing door (fridge), one solid swing door (freezer)
  • 3 adjustable shelves (freezer); 3 adjustable shelves (fridge)
  • Bottom footed shelf to allow air circulation
  • Back wall evaporator cover
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handles
  • Stacking kit
  • Leveling legs
  • LED interior light
  • Probe access port (3/8″)
  • White cabinet and door
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R600a) Refrigerator; Natural, Hydrocarbon refrigerant (R290) Freezer
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty

Accessories:

0504 Basket ABT-SLD BSKT-FULL-0504



0504 Bottom Basket ABT-BSKT-BASE-FIXED-0504

  • Exterior dimensions:23 3/4″ W x 24″D x 65″H
  • Note: This unit must have 4” clearance on sides and back for adequate ventilation
  • Manual defrost (freezer); Cycle defrost (refrigerator)
  • 115V, 60 Hz
  • 2.2 Amps, 1/4 HP (freezer); 1.3 Amps, 1/6 HP (refrigerator)
  • UL/C-UL listed
  • Shipping weight: 268 lbs.
  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
  • Adjustable operating temperature range- Freezer:-27°C – -33°C; Refrigerator: 2°C to 8°C

Related Products

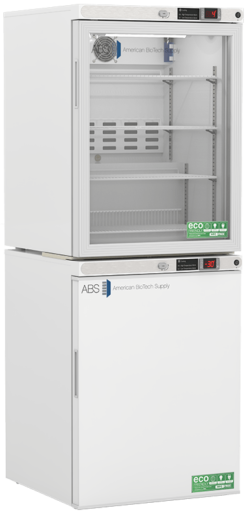

A white American BioTech Supply refrigerator-freezer combo with a glass-door fridge on top showing shelves inside, and a solid-door freezer below. Both units have digital temperature displays and green ECO-friendly labels.
