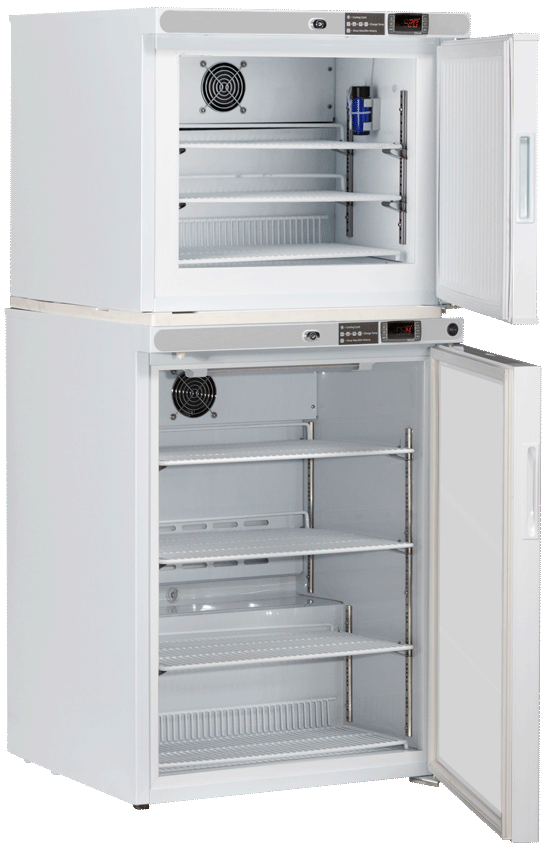

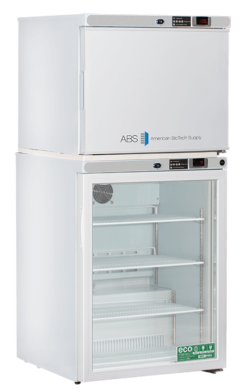

7 cu. ft. Refrigerator & Auto Defrost Freezer Combination

Product Number: ABT-HC-RFC7SA

Green-Leaf-ABS  ul


The Premier Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.

  • 5.2 cu. ft. (Refrigerator) / 1.3 cu. ft. capacity (Freezer)
  • Two exterior swing doors (solid door refrigerator/solid door freezer), right hinged, not reversible
  • 3 adjustable shelves (refrigerator)/2 adjustable shelves (freezer), shelves have back rails to prevent product from being pushed against back wall
  • Footed bottom shelf refrigerator, and freezer
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Stacking kit
  • Two probe access ports (3/8″); one, refrigerator/one, freezer White powder coated exterior
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty

Accessories:

0504 Basket ABT-SLD BSKT-FULL-0504



0504 Bottom Basket ABT-BSKT-BASE-FIXED-0504

  • Exterior dimensions:23 3/4″W x 24″D x 53 1/8″H
  • Auto defrost freezer / cycle defrost refrigerator
  • 115V, 60 Hz, 1.3 Amps refrigerator, 1 Amps freezer, 1/6 HP refrigerator, 1/8 HP freezer
  • UL/C-UL listed
  • Shipping weight: 215 lbs.
  • *Please note this unit requires 2 outlets.
  • Microprocessor temperature controller, refrigerator and freezer Digital temperature display, refrigerator and freezer
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer
  • Adjustable operating temperature range: Refrigerator: 1°C – 10°C; Freezer:-15°C – -25°C
