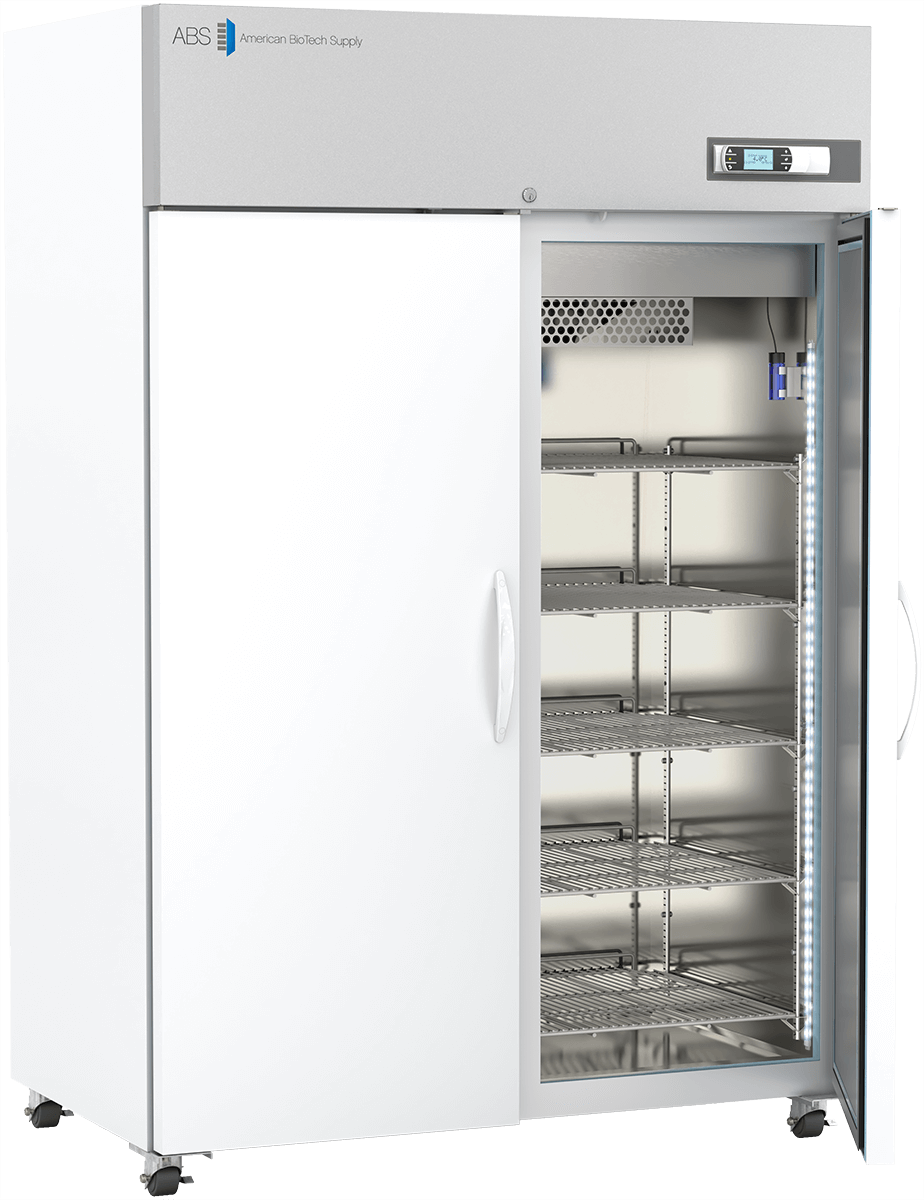

Laboratory refrigerator by American BioTech Supply with white exterior, glass door open to reveal multiple wire shelves inside, and digital temperature display on top right.
ABT-HC-SPL-49 DataSheet Manual 25781 - Premium Lab with Pco_5-18-2023

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

49 Cu. Ft. Premium Laboratory Solid Door Refrigerator

Product Number: ABT-HC-SPL-49
ALSO AVAILABLE IN THESE SIZES23 72 CU. FT.

ABS Premium Lab Refrigerators deliver superior cooling to laboratory environments. Engineered with variable speed compressors (VSCs), these units feature ultra-quiet operation and significant energy savings. VSCs optimize energy consumption by self-adjusting to cooling demands. These compressors also deliver enhanced system performance and provide a longer lifespan than other compressor variations.

Enjoy the uniformity and speed of microprocessor temperature control and a full array of alarms to safeguard your products. Unit controllers also come with a battery backup to keep your data safe. Upgrade your laboratory environment with these premium refrigerators and welcome energy savings, noise reduction, smooth operation, and improved system performance to your work environment.



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-SPL-49

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range I can set on this refrigerator?

The adjustable temperature range is 1°C to 10°C, controlled by a PID microprocessor with LCD display.

Temp Controller tab
What are the exterior dimensions and weight?

External dimensions are 54 in wide, 36 3/8 in deep, and 81 1/2 in high. Product weight is 491 lbs and shipping weight is 610 lbs.

Description tab
What electrical service does it need?

The unit uses a NEMA 5-15 plug, rated at 4.5 Amps, and requires a 110-120V AC circuit with a 15 A minimum.

Description tab
What refrigerant is used, and is the unit certified?

It uses EPA SNAP compliant R600a refrigerant. The unit is ETL and C-ETL listed and certified to UL471 standard with hydrocarbon refrigerant safety, and is also Green Leaf Verified.

Performance tab / Certifications
What alarms does the controller provide?

Alarms include power failure, temperature sensor failure, battery voltage monitor and replacement, high/low temperature, and door ajar, with visual and audible indicators and logging of the last 100 entries.

Temp Controller tab
What is the warranty?

The unit carries a two (2) year parts and labor warranty and a seven (7) year compressor warranty.

Description tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-SPL-49

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
49
Door
Double Swing Solid Right and Left Hinged Door(s)
Shelves
Ten adjustable shelves with guard rail on back
Drawers
Optional pull-out drawers available
Mounting and Installation
4 preinstalled swivel casters, front casters locking
Interior lighting
Shielded, switched LED lighting, full coverage, balanced spectrum
Airflow Management
Forced Air technology, patent pending
External probe access
Rear wall port (3/4″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Key Lock
General warranty
Two (2) years parts and labor warranty
Compressor warranty
Seven (7) years compressor warranty
Product Weight (lbs)
491
Shipping Weight (lbs)
610
 External Width (in)
 54
 External Depth (in)
 36 3/8
 External Height (in)
 81 1/2
Rated Amperage
4.5 Amps
Power Plug/Power Cord
NEMA 5-15 plug
Facility Electrical Requirement
110-120V AC: 15 A (minimum)
Agency Listing and Certification
ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety

Accessory:

ABT-DWRKIT-PL49



Uniformity¹ (Cabinet air)
±1.2
Stability² (Cabinet air)
±1.0
Maximum temperature variation (Cabinet air)
±1.6
Stability² (Simulator ballast)
Non-applicable
Stability² (Simulator bag)
Non-applicable
Temperature Rise after Short Door Openings
Non-applicable
Recovery after Short Door Openings
Non-applicable
Energy Consumption (KWh/day)
1.47
Average Heat Rejection (BTU/hr)
465
Noise Pressure Level (dBA)
38 or less installed
Pull down time to nominal operating temp
70 min
Compressor
Hermetic, variable speed (VSC). Rated speed range: 1300-4000 rpm
Refrigerant
EPA SNAP compliant, R600a
Condenser
Anti-fouling tube and grid design, ultra-quiet multi-speed fan
Evaporator
Fin and tube design, high efficiency fan
Defrost
Cycle optimized, zero energy



Controller, Configuration, Alarms and Monitoring
Controller technology
Proportional Integral Derivative (PID) microprocessor with LCD display
Battery Backup
24V high-capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
Display technology
Non-applicable
Digital Communication
RS-485 (MODBUS)
Data Transfer
USB port for data transfer and software updates
Chart Recorder
Non-applicable
Adjustable Temperature Range
1°C to 10°C
External alarm connection
State switching remote alarm contacts
Alarms
Alarm logging (last 100 entries) with Visual and audible indicators: Power failure, Temperature sensor failure, Battery voltage monitor and replacement, High / Low temperature, Door ajar.
Controller probe
Bottle with glass bead thermal media
