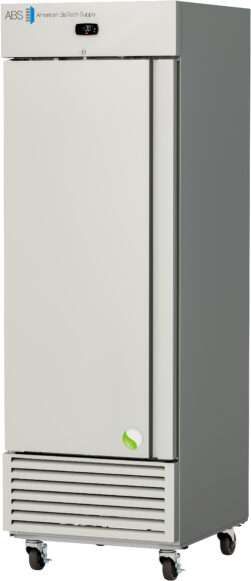

25 Cu. Ft. Stainless Steel Freezer, (-30°C Operation)

Product Number: ABT-HC-SSF-2530

intertek-etl-listed-us-mark-seeklogo31 (002)

These 25 cu. ft. freezers are built to last with their durable stainless-steel construction and
energy-efficient performance. Designed for laboratories and medical facilities, these units
deliver the accuracy and precision you need to support your critical substances.

Experience exceptional microprocessor temperature control and enjoy environmentally
friendly refrigerants for energy savings and sustainability. Choose this future-focused
freezer to take your lab to the next level of performance.

Request a Quote

Details Specifications Temp Controller

Storage capacity (cu. ft)	25 Cu. Ft.
Door	One solid, insulated, right hinged, stainless steel
Shelves	Four modular PVC coated wire shelves
Freezer Compartments	Non-applicable
Baskets	Non-applicable
Mounting	Four, 3.5″ Casters, front locking
Interior lighting	6500K LED Strip mounted above door opening
Airflow management	Specialized plenum to improve uniformity
External probe access	3/4″ Probe access port
Insulation	Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials	Ferritic stainless steel exterior
Access Control	Keyed Door Lock
General warranty	Two (2) year parts and labor warranty
Compressor Parts Warranty	Five (5) year compressor parts warranty

Product Weight (lbs)	280
Shipping Weight (lbs)	305
Rated Amperage	7 Amps
Power Plug/Power Cord	NEMA 5-15 Plug, conforms to UL471 requirements
Facility Electrical Requirement	115V, 60 Hz
Agency Listing and Certification	ETL Listed

Refrigerant

EPA SNAP compliant R290

Ext Width (in)

Ext Depth (in)

Ext Height (in)

Defrost

27.625″

32.25″

84.5″

Auto defrost with electric heating element

Controller technology	Microprocessor temperature controller
Display technology	Segmented display with LED indicators
Adjustable Temperature Range	-32°C to -25°C
External alarm connection	State switching remote alarm contacts
Alarms Display probe	Audible and visual high and low temperature alarms, door open Controller with glass bead media
Compressor	1 HP, Hermetic
Condenser	Tube and fin construction with fan
Evaporator	Tube and fin construction with forced draft cooling system
Disclaimers	Indoor use only, +18C to +26C (+65F to +78F), <70% RH Specifications are subject to change Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
