23 Cu. Ft. Premier Stainless Steel Laboratory Freezer (-30°C Operation)

Product Number: ABT-HC-SSP-23FA3
ALSO AVAILABLE IN THESE SIZES25 25 LH CU. FT.
FAST TRACKINVENTORY
Fast Track Inventory — 5–8 business day lead time



The Premier Stainless Steel Laboratory Freezers feature a microprocessor temperature controller, allowing for precise temperature control, recovery and maintenance versus mechanical style thermostats.

Critical samples and supplies are security backed with an extensive package of temperature security and alarm features.

DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-SSP-23FA3

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this freezer?

The adjustable operating temperature is -27°C to -35°C (-16°F to -31°F), controlled by a digital display microprocessor temperature controller.

Temp Controller tab
What are the exterior dimensions and electrical requirements?

Exterior dimensions are 27" wide, 36" deep, and 83 1/4" high with casters (77 1/2" without casters). It runs on 115V, 60 Hz, 8 Amps, 3/4 HP.

Specifications tab
How does the alarm system work?

It has an audible and visual Hi/Lo temperature alarm with 2 probes — one in air and one in a sample bottle. It also includes a sensor error alarm and remote alarm contacts.

Temp Controller tab
What refrigerant does this freezer use?

It uses hydrocarbon natural refrigerant (R290). Per the summary, these natural HC refrigerants reduce global-warming potential and meet EPA/SNAP mandates along with UL and ASHRAE compliance guidelines.

Details tab
Does the freezer defrost automatically, and are there any trade-offs?

Yes, it is auto defrost. The disclaimer notes that auto defrost freezers use an electric heater on the evaporator to help remove frost and ice, which can raise temperatures within the freezer during the cycle.

Summary
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-SSP-23FA3

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details



  • Forced draft air circulation
  • Keyed door lock
  • Magnetic door gaskets for positive seal
  • Integrated door handle
  • LED interior lights are safety shielded and switch controlled
  • Probe access port (3/4″)
  • Stainless steel exterior
  • White-powder coated aluminum interior with 304 stainless steel floor
  • Easily cleaned smooth interior
  • Hydrocarbon natural refrigerant (R290)
  • 2 year parts and labor warranty, plus an additional 3 year compressor parts warranty
  • Auto defrost
  • 4 swivel casters (5 3/4″)



  • Exterior dimensionsWidth: 27”Depth: 36”Height: 83 1/4” with casters; 77 1/2” without casters
  • 115V, 60 Hz, 8 Amps, 3/4 HP
  • ETL listed
  • Shipping weight: 327 lbs.



  • Digital display microprocessor temperature controller
  • Adjustable operating temperature: -27°C to -35°C (-16°F to -31°F)
  • Audible and visual Hi/Lo temperature alarm 2 probes;
  • 1 in air and 1 in sample bottle
  • Probe attached to evaporator for defrost termination sensing
  • Sensor error alarm
  • Continuous product (simulated) temperature display
  • Remote alarm contacts

Related Products

American BioTech Supply HC-PLF-23 pharmaceutical freezer, external view showing solid door design for secure medical storage
ABT-HC-PLF-23 23 Cu. Ft. Premium Laboratory Auto Defrost Freezer
Product Number: ABT-HC-PLF-23

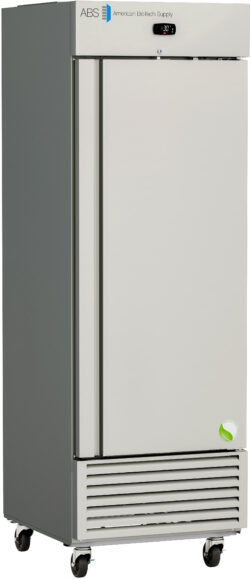

A tall, silver laboratory refrigerator on wheels with a single door, digital temperature display, and vents at the bottom. The top panel shows ABS American BioTech Supply branding. A green and white eco-friendly symbol appears near the lower right corner.
