4.2 Cu. Ft. Premier Undercounter Freezer Built-In-LEFT HINGED

Product Number: ABT-HC-UCBI-0420-LH

The Premier Built In Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.

Periodic defrosting is required.

The Built-In models are designed with a “front breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-UCBI-0420-LH

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set this freezer to?

The adjustable operating temperature range is -15°C to -25°C, controlled by a microprocessor temperature controller with a digital display.

Temp Controller tab
What are the exterior dimensions and shipping weight?

Width 23 ¾", Depth 24 ½", and Height 33 ⅜". Shipping weight is 132 lbs.

Specifications tab
Does it need clearance on the sides and top for installation?

No. The Built-In models use a "front breathing" ventilation system, eliminating the need for clearance around the top and sides so the unit can be incorporated into cabinets and other applications with limited free space.

Summary
How does defrosting work on this unit?

It is manual defrost, and the summary notes that periodic defrosting is required.

Specifications tab
What alarms and monitoring does it include?

It has audible and visual high and low temperature alarms, two probes (one in air and one in a sample bottle), and remote alarm contacts.

Temp Controller tab
What refrigerant does it use and what certifications does it carry?

It uses HFC-free natural hydrocarbon refrigerant R600a. The unit is ENERGY STAR Certified, Green Leaf Verified, and UL/cUL Listed (US & Canada).

Certifications
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-UCBI-0420-LH

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • Two fixed shelves
  • Keyed door lock
  • Recessed door handle
  • Magnetic door gasket for positive seal
  • Leveling legs
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty
  • Exterior dimensionsWidth: 23 ¾”Depth: 24 ½”Height: 33 ⅜”
  • Manual defrost
  • 115V, 60 Hz, 1.5 Amps 1/8 HP
  • UL/C-UL listed
  • Shipping weight:  132 lbs.
  • ENERGY STAR CERTIFIED
  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
  • Adjustable operating temperature range:  -15°C to -25°C

Related Products

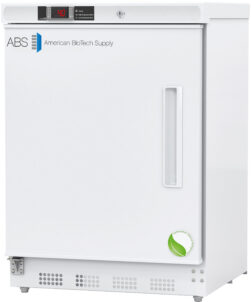

A white laboratory refrigerator by American BioTech Supply with a digital temperature display, a rectangular handle, a lock on top, and a green leaf sticker at the bottom right corner of the door. The ABS logo appears on the upper left.
ABT-HC-UCBI-0404-LH 4.6 Cu. Ft. Premier Undercounter Refrigerator Built-In-LEFT HINGED
Product Number: ABT-HC-UCBI-0404-LH
Exterior view of American BioTech Supply's undercounter biomedical refrigerator model HC-UCbi-0420, showcasing its compact design and stainless steel finish.
ABT-HC-UCBI-0420 4.2 Cu. Ft. Premier Undercounter Freezer Built-In
Product Number: ABT-HC-UCBI-0420

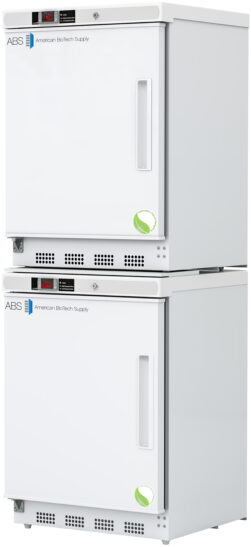

Two white, medical-grade refrigerators from American BioTech Supply are stacked vertically. Each has a digital temperature display, vented base, vertical handle, and a green circular leaf symbol on the lower right corner of the door.
