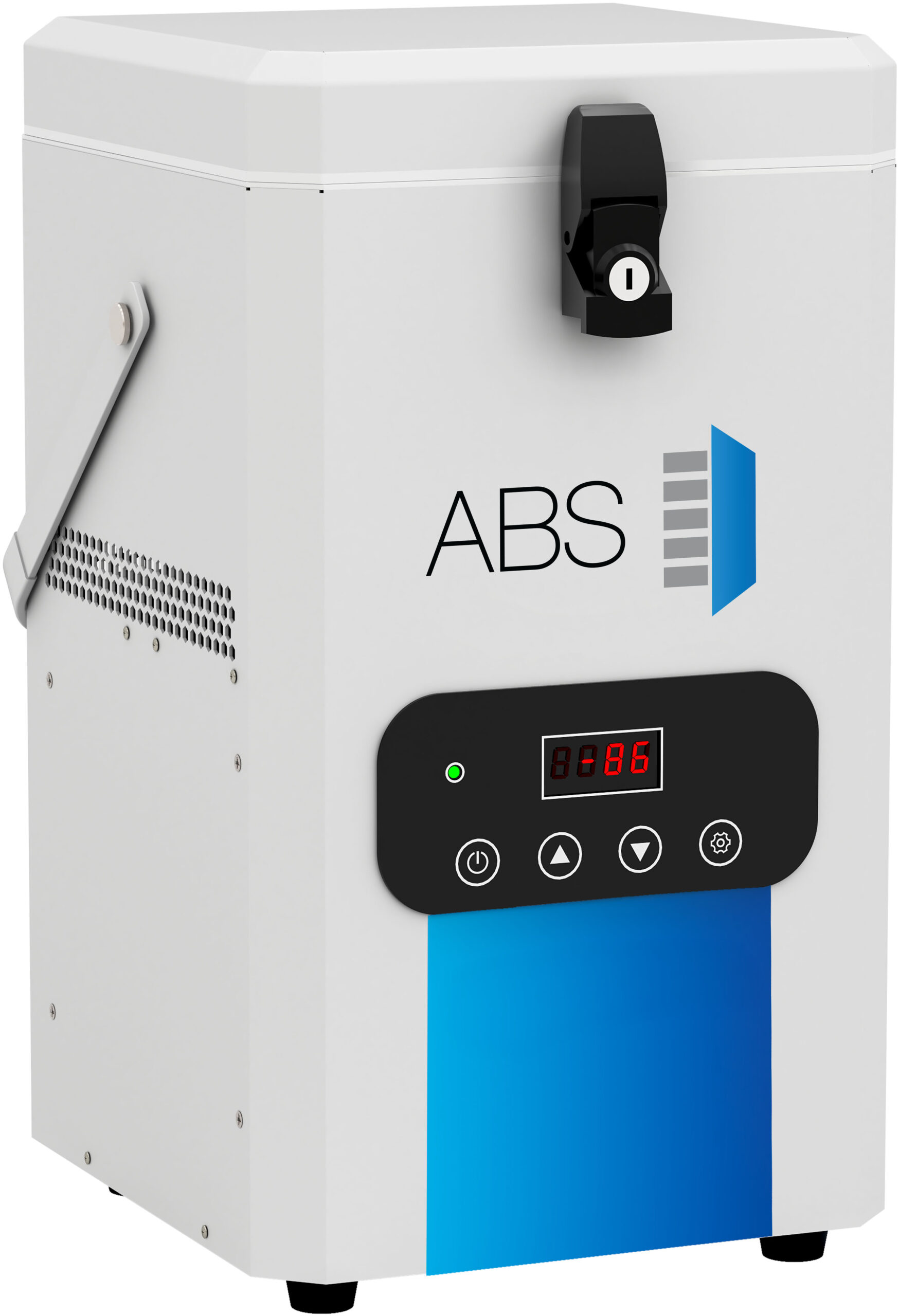

A white and blue rectangular medical or laboratory device labeled ABS with a black digital control panel featuring buttons and a red LED display. The unit has a handle on the side and a black latch on top, standing on four small feet.

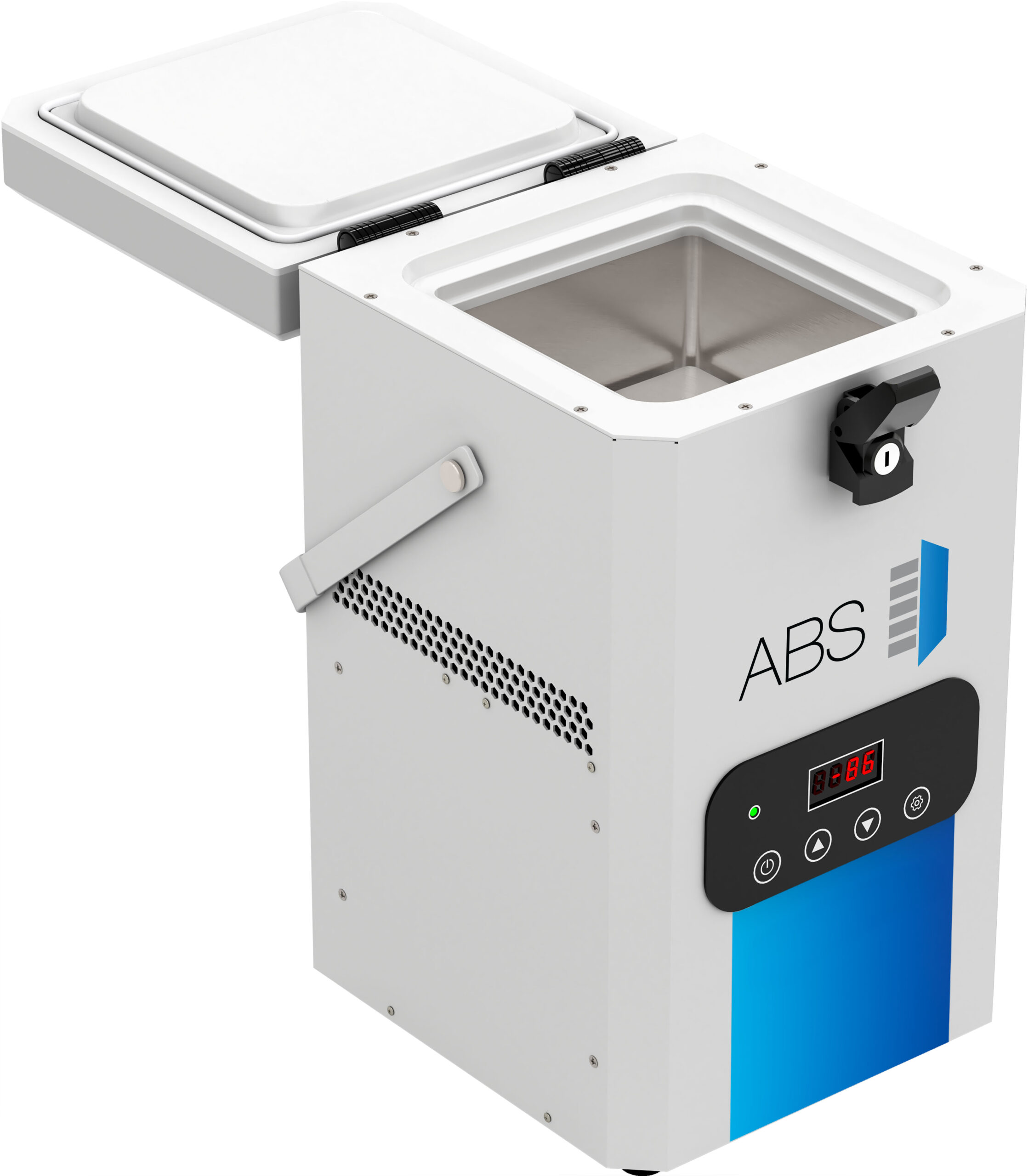

A white, box-shaped laboratory freezer with a digital display reading 6.5°C, labeled “ABS.” The lid is open, revealing a metal interior. The front panel has buttons and indicator lights, and the side features a handle and ventilation holes.
ABT-ULT-BT-86 DataSheet Manual 26219 - ULT Benchtop 05-18-26

Ultra Low Temperature Freezer Benchtop

Product Number: ABT-ULT-BT-86 ★ NEW PRODUCT

This compact ULT Freezer Benchtop delivers reliable ultra-low temperature performance in a compact design. Engineered with Stirling engine technology and helium refrigerant, this unit provides efficient cooling down to -86°C while maintaining low energy consumption and quiet operation. Designed for benchtop convenience, the freezer features a top-access swing door with a compression latch closure and a keyed lock for safety. This compact ULT is ideal for specialty applications where dependable -86°C storage is required without the footprint of a full-size ULT freezer.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-ULT-BT-86

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this benchtop ULT reach?

The temperature setpoint range is 40°C to -86°C. Pull down time to nominal operating temperature is less than 210 minutes to -86°C in an empty chamber.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior dimensions are 10.25" wide, 11" deep, and 18.5" high. Product weight is 21 lbs and shipping weight is 40 lbs.

Details tab
How much clearance does the unit need for ventilation?

The freezer requires a minimum 2" of clearance at the back and sides of the unit for proper ventilation.

Temp Controller tab
What refrigerant and compressor does this freezer use?

It uses a Stirling engine compressor with helium refrigerant. The condenser is an integral heatsink and the evaporator is an integral cold plate. Defrost is manual.

Refrigeration System tab
What are the electrical requirements and plug types?

The AC configuration requires 110-127V, 15A on a NEMA 5-15 receptacle with a NEMA 1-15P plug and draws 1 Amp. The DC configuration uses a 12V automotive socket with a 15A fuse and draws 10 Amps.

Details tab
What alarms are included and is there any battery backup?

The unit provides audible and visual alarms when the temperature is above the set point by 10°C for 5 minutes. An adapter is included for 12V socket power as a battery backup option; an external alarm connection is not applicable.

Temp Controller tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-ULT-BT-86

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity:
5.25″ x 5.25″ x 3″ cryogenic sample storage box
Door:
Top access swing door, compression latch closure
Freezer Compartment
One, top access
Mounting and Installation
Rubber feet
Interior lighting:
Non-applicable
Airflow management:
Non-applicable
External probe access:
Non-applicable
Insulation:
Enclosure is foamed-in-place with EPA compliant high density urethane foam and VIPs
Exterior materials:
White powder coated steel
Access control:
Keyed door lock
General warranty:
Two (2) years parts and labor warranty
Compressor warranty:
Non-applicable
Product weight (lbs):
21
Shipping weight (lbs):
40
Exterior width (in):
10.25
Exterior depth (in):
11
Exterior height (in):
18.5
Rated Amperage:
AC: 1 Amp
DC: 10 Amps
Power Plug/Power Cord:
AC: NEMA 1-15P plug
DC: 12V automotive socket
Facility Electrical Requirement:
AC: 110-127V, 15A, NEMA 5-15 receptacle
DC: 12V, 15A fuse, automotive socket
Agency Listing and Certification:
cETLus, CE, FC, RoHS, UK CA.  24V DC system operating voltage
Compressor:
Stirling engine
Refrigerant:
Helium
Condenser:
Integral heatsink
Evaporator:
Integral cold plate
Defrost:
Manual defrost
Average heat rejection (kWh/day):
< 1.33 kWh/day
Average heat rejection(BTU/hr):
< 190 BTU/hr
Noise pressure level:
45 dBA or less installed
Pull down time to nominal operating  temp:
< 210 min to -86C (empty)
Energy consumption:
< 1.10 kWh/day
Controller technology:
Microprocessor with capacitance touch display
Simulator ballast:
Display simulates the air temperature in the geometric center of the chamber as measured in an empty chamber
Temperature setpoint range:
40°C to -86°C
External alarm connection:
Non-applicable
Battery backup:
Adapter included for 12V socket power
Display probe:
Integral RTD probe
Alarms:
Audible & Visual Alarms when the temperature is above the set point by 10°C for 5 minutes
Performance Note(s):
Temperature readout is based on an empty chamber at steady state using a bare (unweighted) thermocouple probe in the geometric center.  Product loading, door openings, and ambient conditions will affect performance.
Disclaimer(s):
The freezer requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
