12 Cu. Ft. Upright Controlled Room Temperature Cabinet, Glass Door

Product Number: CRT-ABT-HC-S12G
ALSO AVAILABLE IN THESE SIZES16 23 26 36 49 CU. FT.

Replaces part #: CRT-ABT-S12G

The Upright Controlled Room Temperature Cabinets are purpose built for medical applications. These units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for medication storage at room temperature. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.

A controlled temperature environment will ensure approved storage; preventing time wasted on unnecessary expense and product recalls.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the CRT-ABT-HC-S12G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set this cabinet to?

The adjustable operating temperature range is 68°F to 77°F (20°C to 25°C).

Temp Controller tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 25" wide, 29 ¾" deep, and 65 ¾" high with casters (62 ¼" without casters). Shipping weight is 258 lbs.

Specifications tab
What refrigerant does this unit use?

It uses hydrocarbon, natural refrigerant (R290). These natural hydrocarbon refrigerants do not contain hydrofluorocarbons, reducing global-warming potential while meeting EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Details tab
What alarms and monitoring features are included?

The microprocessor temperature controller has a digital temperature display, audible and visual high and low temperature alarms, remote alarm contacts, and 2 probes (1 in air and 1 in a sample bottle).

Temp Controller tab
What are the electrical requirements?

The unit runs on 115V, 60 Hz, 3 Amps, 1/5 HP.

Specifications tab
What warranty comes with this cabinet?

It includes a one year parts and labor warranty, plus an additional four year compressor parts warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the CRT-ABT-HC-S12G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • Three adjustable shelves
  • Vaccine storage power cord warning label
  • Forced draft air circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Swivel Casters (3”)
  • LED interior lights are safety shielded and switch controlled
  • Hydrocarbon, natural refrigerant (R290)
  • One year parts and labor warranty, plus an additional four year compressor parts warranty
  • Exterior dimensionsWidth: 25”Depth: 29 ¾”Height: 65 ¾” with casters; 62 ¼” without casters
  • Cycle defrost
  • 115V, 60 Hz, 3 Amps, 1/5 HP
  • ETL listed
  • Shipping weight: 258 lbs.
  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • Adjustable operating temperature range:  68°F to 77°F (20°C to 25°C)
  • 2 probes; 1 in air and 1 in sample bottle
  • Calibrated using a NIST traceable device, certificate included

Related Products

A tall, white laboratory freezer with a stainless steel top panel displaying the American BioTech Supply logo. It has a vertical handle, a digital control panel at the bottom, vents, and caster wheels for mobility.
CRT-ABT-HC-S12S 12 Cu. Ft. Upright Controlled Room Temperature Cabinet, Solid Door
Product Number: CRT-ABT-HC-S12S

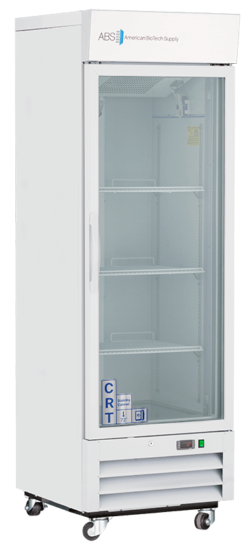

A tall, white medical refrigerator with a glass door, three adjustable interior shelves, ventilation grates at the bottom, and caster wheels. The label reads American BioTech Supply. The fridge is empty and designed for laboratory or clinical use.
CRT-ABT-HC-S16G 16 Cu. Ft. Upright Controlled Room Temperature Cabinet, Glass Door
Product Number: CRT-ABT-HC-S16G

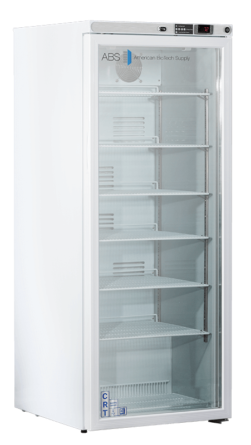

CRT-ABT-HC-10PG Controlled room temperature cabinet, glass door, closed, pharmaceutical refrigerator by American Biotech Supply, designed for safe and visible storage of temperature-sensitive medications.
