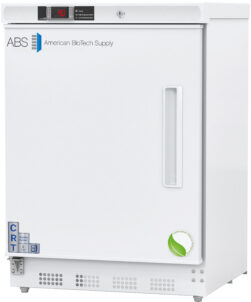

2.5 Cu. Ft. Undercounter Controlled Room Temperature Cabinet Built-In Left Hinged

Product Number: CRT-ABT-HC-UCBI-0204-LH
ulGreen-Leaf-ABS

The Undercounter Controlled Room Temperature Cabinets feature a microprocessor temperature controller and display which allows for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Medications are security backed with an extensive package of audible and visual alarms.

A controlled temperature environment will ensure approved storage; preventing time wasted on unnecessary expense and product recalls.

The Built-In models are designed with a “front breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

  • 2 probes; 1 in air and 1 in sample bottle
  • Four adjustable shelves (two large, two small) with guard rail on back to prevent product from being pushed against the back wall
  • Back wall evaporator cover
  • Vaccine storage power cord warning label
  • Forced draft circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • LED light
  • Probe access port (3/8″)
  • Powder coat exterior
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty
  • Exterior dimensions:  17 3/4″W x 19 1/2″D x 28 7/8″H
  • Cycle defrost
  • 115V, 60 Hz, .90 Amps, 1/8 HP
  • ADA compliant
  • UL/C-UL listed
  • Shipping weight:  85 lbs.
  • Microprocessor temperature controller
  • Digital temperature display
  • Adjustable operating temperature range:  68°F to 77°F (20°C to 25°C)
  • Temperature monitor device (TMD) complies with the current CDC
    guidelines, with 3 years certification of calibration, “buffered” probe
    in the product simulated solution, min/max memory. F/C switchable,
    field installable, and visual & audible temp alarm
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
