10 Cu. Ft. Pharmacy Refrigerator & Freezer Combination with Glass Door

Product Number: PH-ABT-HC-RFC1020G



The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-RFC1020G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the temperature ranges for the refrigerator and freezer sections?

The refrigerator has an adjustable range of 36°F to 46°F (2°C to 8°C), and the freezer has an adjustable range of 5°F to -13°F (-15°C to -25°C).

Temp Controller tab
What are the exterior dimensions and clearance requirements?

The unit measures 23 3/4″ wide, 24″ deep, and 65″ high. It requires 4″ of clearance on the sides and back for adequate ventilation.

Specifications tab
What are the electrical requirements?

The unit runs on 115V, 60 Hz. The freezer draws 1.4 Amps (1/8 HP) and the refrigerator draws 1.3 Amps (1/6 HP). The datasheet lists a NEMA 5-15 plug and a facility requirement of 110-120V AC, 15 A minimum.

Specifications tab
What type of defrost system does it use?

The freezer is manual defrost and the refrigerator is cycle defrost. For the manual defrost freezer, periodic manual defrosting is required.

Specifications tab
What alarms and monitoring features are included?

It has a microprocessor temperature controller with a digital temperature display, audible and visual high and low temperature alarms, two probes (one in air and one in a sample bottle), and remote alarm contacts. The datasheet also lists RS-485 (MODBUS) digital communication.

Temp Controller tab
What is the warranty on this unit?

It carries a two year parts and labor warranty, plus an additional three year compressor parts only warranty. Improper installation will void the warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-RFC1020G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 5.2 cu. ft. capacity (Refrigerator) / 4 cu. ft. capacity (Freezer)
  • One glass swing door (fridge), one solid swing door (freezer)
  • 2 fixed shelves (freezer); 3 adjustable shelves (fridge)
  • Bottom footed shelf to allow air circulation
  • Back wall evaporator cover
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handles
  • Stacking kit
  • Leveling legs
  • LED interior light
  • Probe access port (3/8″)
  • White cabinet and door
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pyxis®, Omnicell® and AcuDose RX® compatible
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty

Accessories:

0504 Basket

ABT-SLD BSKT-FULL-0504



0504 Bottom Basket ABT-BSKT-BASE-FIXED-0504

  • Exterior dimensionsWidth: 23 3/4″Depth: 24″Height: 65″
  • Note: This unit must have 4” clearance on sides and back for adequate ventilation
  • Manual defrost (freezer); Cycle defrost (refrigerator)
  • 115V, 60 Hz
  • 1.4 Amps, 1/8 HP (freezer); 1.3 Amps, 1/6 HP (refrigerator)
  • UL/C-UL listed
  • Shipping weight: 266 lbs.
  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
  • Adjustable operating temperature range – Freezer:5°F – -13°F (-15°C – -25°C); Refrigerator: 36°F to 46°F (2°C to 8°C)
  • Calibrated using a NIST traceable device, certificate included

Related Products

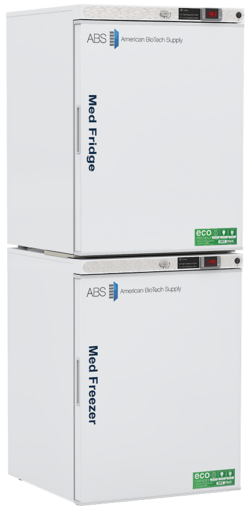

Two white dual temperature medical units are stacked vertically. The top unit is labeled Med Fridge and the bottom Med Freezer. Both display ABS and eco-friendly stickers. Each has a digital display on the top right corner above the door.
