10 Cu. Ft. Pharmacy Refrigerator & Freezer (-22°F Operation) Combination

Product Number: PH-ABT-HC-RFC1030





The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-RFC1030

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range I can set on each compartment?

The freezer has an adjustable operating range of -4°F to -22°F (-20°C to -30°C) and is factory preset at -30°C. The refrigerator adjusts from 36°F to 46°F (2°C to 8°C).

Temp Controller tab
What are the exterior dimensions and how much space do I need to leave around it?

The unit is 23 3/4″ wide, 24″ deep, and 65″ high. It requires 4″ of clearance on the sides and back for adequate ventilation.

Specifications tab
How is each section split for capacity and shelving?

The refrigerator section is 5.2 cu. ft. and the freezer section is 4 cu. ft. Each has one solid swing door and 3 adjustable shelves, plus a bottom footed shelf to allow air circulation.

Details tab
What refrigerants does this combination unit use?

The refrigerator uses HFC-free R600a, and the freezer uses natural hydrocarbon refrigerant R290. Both are hydrocarbon refrigerants that reduce global-warming potential while meeting EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Details tab
What alarms and monitoring come built in?

It has a microprocessor temperature controller with digital display, audible and visual high and low temperature alarms, 2 probes (1 in air and 1 in a sample bottle), and remote alarm contacts. It is also calibrated using a NIST traceable device, with certificate included.

Temp Controller tab
What does the warranty cover?

The unit comes with a two year parts and labor warranty, plus an additional three year compressor parts only warranty. Note that improper installation (not maintaining the required clearance) will void the warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-RFC1030

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 5.2 cu. ft. capacity (Refrigerator) / 4 cu. ft. capacity (Freezer) One solid swing door (fridge), one solid swing door (freezer)
  • 3 adjustable shelves (freezer); 3 adjustable shelves (fridge)
  • Bottom footed shelf to allow air circulation
  • Back wall evaporator cover
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handles
  • Stacking kit
  • Leveling legs
  • LED interior light
  • Probe access port (3/8″)
  • White cabinet and door
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R600a) Refrigerator; Natural, Hydrocarbon refrigerant (R290) Freezer
  • Pyxis®, Omnicell® and AcuDose RX® compatible
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty

Accessories:

0504 Basket ABT-SLD BSKT-FULL-0504



0504 Bottom Basket ABT-BSKT-BASE-FIXED-0504

  • Exterior dimensionsWidth: 23 3/4″Depth: 24″Height: 65″
  • Note: This unit must have 4” clearance on sides and back for adequate ventilation
  • Manual defrost (freezer); Cycle defrost (refrigerator)
  • 115V, 60 Hz
  • 2.2 Amps, 1/4 HP (freezer); 1.3 Amps, 1/6 HP (refrigerator)
  • UL/C-UL listed
  • Shipping weight: 268 lbs.
  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
  • Adjustable operating temperature range: Freezer: -4°F to -22°F (-20°C to -30°C). Factory Preset at -30°C;Refrigerator: 36°F to 46°F (2°C to 8°C)
  • Calibrated using a NIST traceable device, certificate included

Related Products

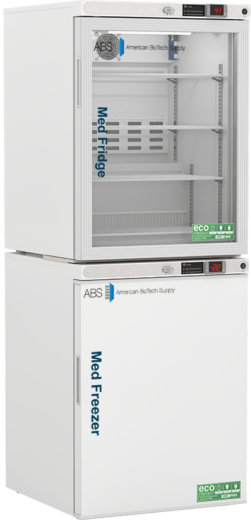

A white medical fridge and freezer 10 cu ft combo unit by American BioTech Supply. The top section is a glass-door fridge labeled “Med Fridge” with adjustable wire shelves and digital temperature display. The lower section is a solid-door freezer labeled “Med Freezer.”
