7 Cu. Ft. Pharmacy Refrigerator and Freezer Combination

Product Number: PH-ABT-HC-RFC7



The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-RFC7

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature ranges can I set on the refrigerator and freezer sections?

The refrigerator has an adjustable operating range of 36°F to 46°F (2°C to 8°C), and the freezer has an adjustable operating range of 5°F to -13°F (-15°C to -25°C).

Temp Controller tab
How much clearance does this unit need and what happens if I don't follow it?

This model requires 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Summary
What are the exterior dimensions and shipping weight?

Exterior dimensions are 23 5/8" wide, 24 1/4" deep, and 53 1/8" high. Shipping weight is 207 lbs.

Specifications tab
How is the 7 cu. ft. capacity split between the refrigerator and freezer, and how many shelves does each have?

The 7 cu. ft. capacity is split as 5.2 cu. ft. refrigerator and 1.7 cu. ft. freezer. The refrigerator has 3 adjustable shelves and the freezer has 2 adjustable shelves, both with back rails to prevent product from being pushed against the back wall.

Details tab
What are the electrical requirements for this combination unit?

The unit runs on 115V, 60 Hz, drawing 1.3 Amps for the refrigerator and 1 Amp for the freezer, with a 1/6 HP refrigerator compressor and 1/8 HP freezer compressor. Please note this unit requires 2 outlets.

Specifications tab / Details tab
What alarms and temperature monitoring features are included?

Both the refrigerator and freezer have a microprocessor temperature controller, digital temperature display, audible and visual high and low temperature alarms, remote alarm contacts, and 2 probes (1 in air and 1 in a sample bottle). The unit is calibrated using a NIST traceable device, with the certificate included.

Temp Controller tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-RFC7

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 7 cu. Ft. Capacity (5.2 ref./1.7 freezer)
  • 3 adjustable shelves refrigerator/2 adjustable shelves freezer, shelves have back rails to prevent product from being pushed against back wall
  • Footed bottom shelf refrigerator, and freezer
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Stacking kit
  • Hfc-free refrigerant (r600a), foam insulation and packaging
  • Pyxis®, Omnicell® and AcuDose RX® compatible
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • *please note this unit requires 2 outlets.

Accessories:

0504 Basket ABT-SLD BSKT-FULL-0504



0504 Bottom Basket ABT-BSKT-BASE-FIXED-0504

  • Exterior dimensionsWidth: 23 5/8″Depth: 24 ¼”Height: 53 1/8″
  • Manual defrost freezer / cycle defrost refrigerator
  • 115V, 60 Hz, 1.3 Amps refrigerator, 1 Amp freezer, 1/6 HP refrigerator, 1/8 HP freezer
  • UL/C-UL listed
  • Shipping weight: 207 lbs.
  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer
  • Adjustable operating temperature rangeRefrigerator: 36°F to 46°F (2°C to 8°C)Freezer: 5°F to -13°F (-15°C to -25°C)
  • Calibrated using a NIST traceable device, certificate included
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • Remote alarm contacts, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer

Related Products

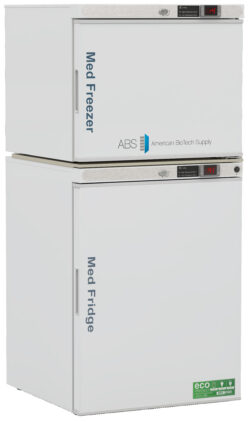

A white medical freezer sits on top of a matching medical fridge. Both have digital displays, ABS American BioTech Supply branding, and vertical blue labels reading “Med Freezer” top and “Med Fridge” bottom. The fridge shows eco-friendly stickers.
PH-ABT-HC-RFC7S 7 cu. ft. Pharmacy Refrigerator & Freezer Solid Door Combination
Product Number: PH-ABT-HC-RFC7S

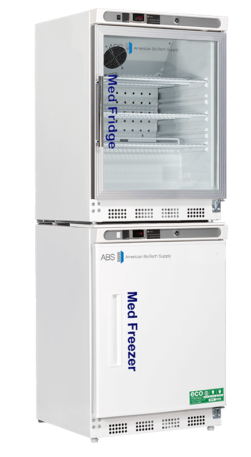

A white double-door unit with a glass-fronted top fridge labeled “Med Fridge” and a solid-door bottom freezer labeled “Med Freezer.” Both have digital displays and vents, and the unit is branded “American Biotech Supply.” Shelves are visible inside the fridge.
