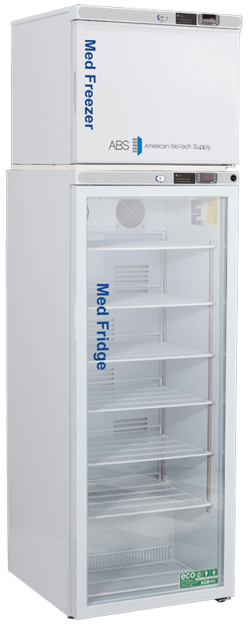

A tall, white medical appliance with two compartments: a top opaque freezer labeled Med Freezer and a lower glass-front fridge labeled Med Fridge. Both sections display digital controls. The fridge shows empty shelves and eco-friendly certification stickers.
A tall, white medical appliance with two compartments: a top opaque freezer labeled Med Freezer and a lower glass-front fridge labeled Med Fridge. Both sections display digital controls. The fridge shows empty shelves and eco-friendly certification stickers.
PH-ABT-HC-RFC7A Data Sheet

7 Cu. Ft. Pharmacy Refrigerator and Auto Defrost Freezer Combination

Product Number: PH-ABT-HC-RFC7A

Green-Leaf-ABS  ul

The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Product Inquiry
Details
  • 7 Cu. Ft. capacity (5.2 Ref./1.3 Freezer)
  • 3 adjustable shelves refrigerator/2 adjustable shelves freezer, shelves have back rails to prevent product from being pushed against back wall
  • Footed bottom shelf refrigerator, and freezer
  • Forced draft air circulation, refrigerator
  • Vaccine storage power cord warning label
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Stacking kit
  • Two probe access ports (3/8″); one, refrigerator/one, freezer
  • White powder coated exterior
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • Pyxis®, Omnicell® and AcuDose RX® compatible
  • *Please note this unit requires 2 outlets

Accessories:

0504 Basket

ABT-SLD BSKT-FULL-0504



0504 Bottom Basket ABT-BSKT-BASE-FIXED-0504

  • Exterior dimensions:
    Width: 23 ¾”
    Depth: 24 ¼”
    Height: 53 1/8″H
  • auto defrost freezer / cycle defrost refrigerator
  • 115V, 60 Hz, 1.3 Amps refrigerator, 1 Amp freezer, 1/6 HP refrigerator, 1/8 HP freezer
  • UL/C-UL listed
  • Shipping weight: 207 lbs.
  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer with battery back-up to support temperature monitoring and alarms
  • Adjustable operating temperature range:
    Refrigerator: 36°F to 46°F (2°C to 8°C)
    Freezer: 5°F to -13°F (-15°C to -25°C)
  • Auto defrost cycle every 6 hours:
    Max air temp in empty freezer: 4.34°C
    Max air temp in loaded freezer: -2.89°C
    Max sample temp in empty freezer:  -4.76°C
    Max sample temp in loaded freezer: -9.58°C.
  • Calibrated using a NIST traceable device, certificate included
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer
