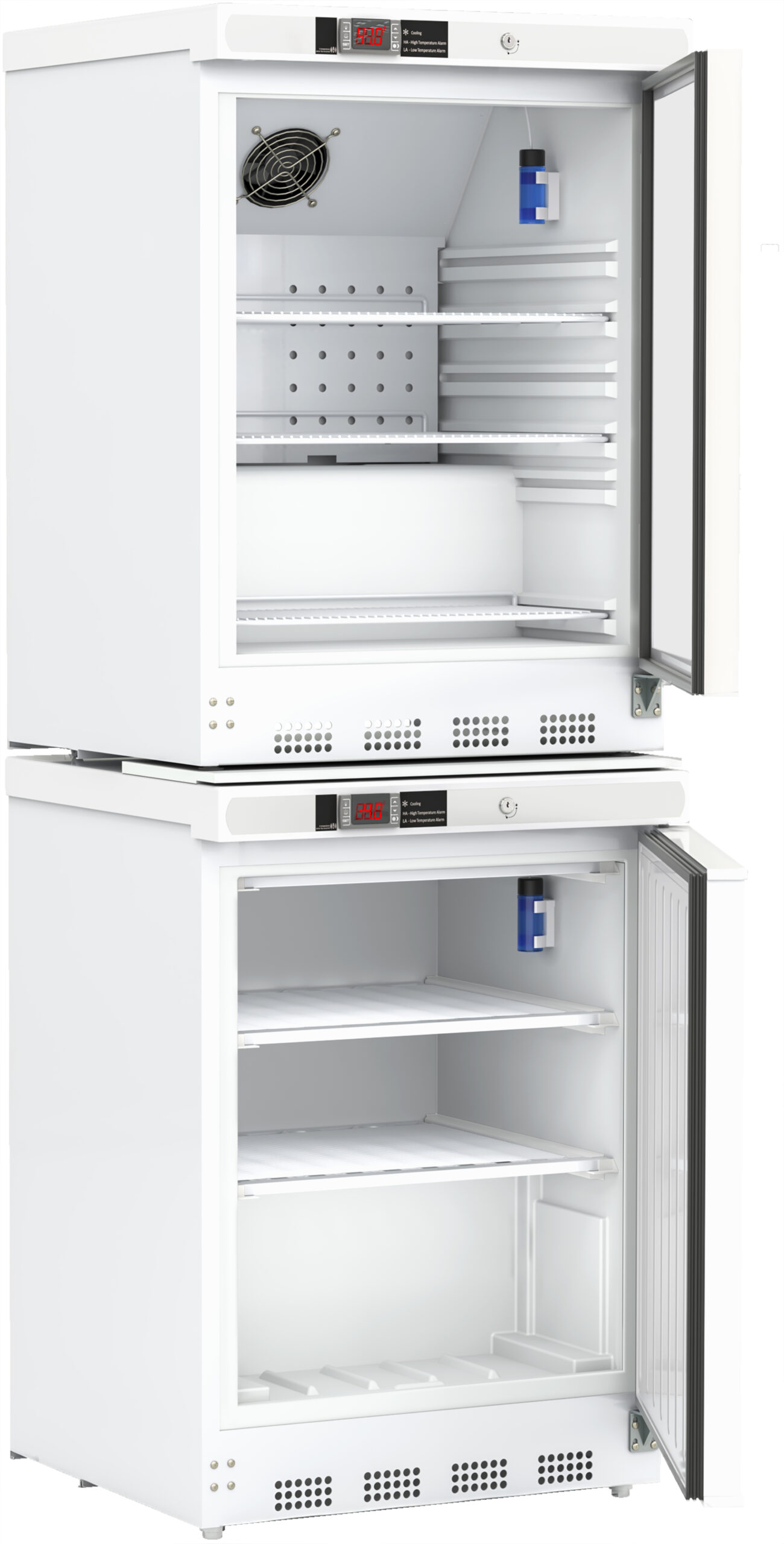

Two white, under-counter laboratory refrigerators with doors open. The top fridge contains shelves, a small fan on the back wall, and a blue-capped bottle inside. The bottom fridge is empty with three shelves. Both have digital control panels above the door.
PH-ABT-HC-RFC9 Data Sheet ABS_Natural_refrigerants_flyer Manual 21633 - Undercounter and Mid-Size with Dual Probe V10 Dual Probe 5.10.19

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

9 Cu. Ft. Pharmacy Refrigerator and Freezer Combination

Product Number: PH-ABT-HC-RFC9



The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model is designed with a “front-breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-RFC9

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the temperature ranges for the refrigerator and freezer sections?

The refrigerator has an adjustable operating range of 36°F to 46°F (2°C to 8°C), and the freezer has an adjustable operating range of 5°F to -13°F (-15°C to -25°C).

Temp Controller tab
What are the exterior dimensions and shipping weight?

Width 23 ¾", Depth 24 ½", Height 66 ¾". Shipping weight is 269 lbs.

Specifications tab
Does this unit need clearance around the top and sides?

No. It is designed with a front-breathing ventilation system, eliminating the need for clearance around the top and sides, so it can be built into cabinets and tight spaces.

Summary
What are the electrical requirements? Does it need more than one outlet?

It runs on 115V, 60 Hz, drawing 1.74 Amps for the refrigerator and 1.5 Amps for the freezer, with a 1/8 HP compressor on each. The unit requires 2 outlets.

Specifications tab / Details tab
What is the defrost method?

The freezer is manual defrost and the refrigerator is cycle defrost. For manual defrost freezers, periodic manual defrosting is required.

Specifications tab / Summary
What alarms and temperature monitoring features are included?

Each section has a microprocessor temperature controller and digital temperature display with battery back-up supporting temperature monitoring and alarms, audible and visual high and low temperature alarms, remote alarm contacts, and 2 probes (1 in air and 1 in a sample bottle) in both the refrigerator and freezer.

Temp Controller tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-RFC9

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 9 Cu. Ft. capacity (4.6 Ref./4.2 Freezer)
  • 2 adjustable/1 fixed shelves refrigerator/2 fixed shelves freezer with guard rails on back in Refrigerator to prevent product from being pushed against back wall
  • Back wall evaporator cover, Refrigerator
  • Forced draft circulation Refrigerator
  • Vaccine storage power cord warning label
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handle
  • Leveling legs
  • Stacking kit
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • PH-ABT-HC-RFC9-LH
  • Please note this unit requires 2 outlets.
  • Pyxis®, Omnicell® and AcuDose RX® compatible
  • *This product is available left hinged, product number
  • Exterior dimensionsWidth: 23 ¾”Depth: 24 ½”Height: 66 ¾”
  • Manual defrost freezer / cycle defrost refrigerator
  • 115V, 60 Hz, 1.74 Amps Refrigerator, 1.5 Amps Freezer, 1/8 HP Refrigerator and Freezer
  • UL/C-UL listed
  • Shipping weight: 269 lbs.
  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer with battery back-up to support temperature monitoring and alarms
  • Adjustable operating temperature rangeRefrigerator: 36°F to 46°F (2°C to 8°C)Freezer: 5°F to -13°F (-15°C to -25°C)
  • Calibrated using a NIST traceable device, certificate included
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • Remote alarm contacts, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
