9 Cu. Ft. Pharmacy Refrigerator and Freezer Combination-Left Hinged with Glass Door

Product Number: PH-ABT-HC-RFC9G-LH



The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model is designed with a “front-breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-RFC9G-LH

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the temperature ranges for the refrigerator and freezer sections?

The refrigerator has an adjustable operating range of 36°F to 46°F (2°C to 8°C), and the freezer has an adjustable range of 5°F to -13°F (-15°C to -25°C).

Temp Controller tab
What are the exterior dimensions and shipping weight?

Width is 23 ¾", depth is 25 ½", and height is 66 ¾". Shipping weight is 282 lbs.

Specifications tab
Do I need to leave clearance around the unit for ventilation?

No. It uses a front-breathing ventilation system, which eliminates the need for clearance around the top and sides and allows it to be built into cabinets or other space-limited applications.

Summary
What are the electrical requirements?

115V, 60 Hz, with 1.74 Amps for the refrigerator and 1.5 Amps for the freezer, 1/8 HP each. Please note this unit requires 2 outlets.

Specifications tab and Details tab
What alarms and monitoring features are included?

Both the refrigerator and freezer have a microprocessor temperature controller, digital temperature display with battery back-up, audible and visual high and low temperature alarms, 2 probes (1 in air and 1 in sample bottle), and remote alarm contacts.

Temp Controller tab
What is the warranty?

Two year parts and labor warranty, plus an additional three year compressor parts warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-RFC9G-LH

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 9 Cu. Ft. Capacity (4.6 Ref./4.2 Freezer)
  • 2 adjustable/1 fixed shelves refrigerator with guard rail on back to prevent product from being pushed against back wall/2 fixed shelves freezer
  • Back wall evaporator cover, Refrigerator
  • Forced draft circulation, Refrigerator
  • Vaccine storage power cord warning label
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handle, freezer; heavy duty door handle, refrigerator
  • Leveling legs
  • Stacking kit
  • LED interior light, Refrigerator
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • Pyxis®, Omnicell® and AcuDose RX® compatible
  • *Please note this unit requires 2 outlets.
  • Exterior dimensionsWidth: 23 ¾”Depth: 25 ½”Height: 66 ¾”
  • Manual defrost freezer / cycle defrost refrigerator
  • 115V, 60 Hz, 1.74 Amps Refrigerator, 1.5 Amps Freezer, 1/8 HP Refrigerator and Freezer
  • UL/C-UL listed
  • Shipping weight: 282 lbs.
  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer with battery back-up to support temperature monitoring and alarms
  • Adjustable operating temperature rangeRefrigerator: 36°F to 46°F (2°C to 8°C)Freezer: 5°F to -13°F (-15°C to -25°C)
  • Calibrated using a NIST traceable device, certificate included
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer

Related Products

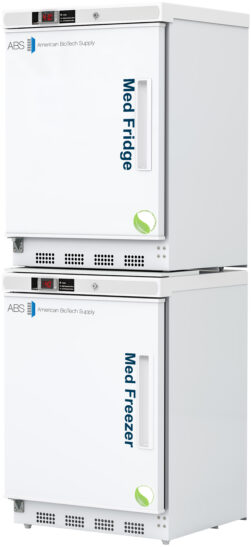

Two stacked white medical appliances: a “Medi Fridge” on top and a “Medi Freezer” below. Both units have handles on the right, digital controls, and vents at the bottom. “ABS American BioTech Supply” logos appear on the upper left of each door.
