9 Cu. Ft. Pharmacy Stainless Steel Refrigerator and Freezer Combination

Product Number: PH-ABT-HC-RFC9SS
ALSO AVAILABLE IN THESE SIZES9 LH CU. FT.



The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model is designed with a “front-breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-RFC9SS

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the temperature ranges for the refrigerator and freezer sections?

The adjustable operating range is 36°F to 46°F (2°C to 8°C) for the refrigerator and 5°F to -13°F (-15°C to -25°C) for the freezer.

Temp Controller tab
What are the exterior dimensions and shipping weight?

Width 23 ¾", depth 24 ½", height 66 ¾", with a shipping weight of 266 lbs.

Specifications tab
Do I need to leave clearance around the unit?

No. The unit uses a front-breathing ventilation system, eliminating the need for clearance around the top and sides, so it can be built into cabinets or other applications where free space is limited.

Summary
What defrost type does this combination unit use?

The freezer is manual defrost and the refrigerator is cycle defrost. Periodic manual defrosting is required for the freezer.

Specifications tab
What alarms and monitoring are included?

Both the refrigerator and freezer have a microprocessor controller with a digital temperature display backed up by battery, audible and visual high and low temperature alarms, 2 probes (1 in air and 1 in a sample bottle), and remote alarm contacts.

Temp Controller tab
What are the electrical requirements?

115V, 60 Hz, with 1.74 Amps for the refrigerator and 1.5 Amps for the freezer, 1/8 HP each. The unit requires 2 outlets.

Specifications tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-RFC9SS

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 9 Cu. Ft. Capacity (4.5 Ref./4.2 Freezer)
  • 2 adjustable/1 fixed shelves refrigerator/2 fixed shelves freezer with guard rails on back in Refrigerator to prevent product from being pushed against back wall
  • Back wall evaporator cover, Refrigerator
  • Forced draft circulation Refrigerator
  • Vaccine storage power cord warning label
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handles
  • Leveling legs
  • Stacking kit
  • LED interior lights
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • *Please note this unit requires 2 outlets.
  • Pyxis®, Omnicell® and AcuDose RX® compatible



  • Exterior dimensionsWidth: 23 ¾”Depth: 24 ½”Height: 66 ¾”
  • Manual defrost freezer / cycle defrost refrigerator
  • 115V, 60 Hz, 1.74 Amps Refrigerator, 1.5 Amps Freezer, 1/8 HP Refrigerator and Freezer
  • UL/C-UL listed
  • Shipping weight: 266 lbs.
  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer with battery back-up to support temperature monitoring and alarms
  • Adjustable operating temperature rangeRefrigerator: 36°F to 46°F (2°C to 8°C)Freezer: 5°F to -13°F (-15°C to -25°C)
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer
  • Calibrated using a NIST traceable device, certificate included

Related Products

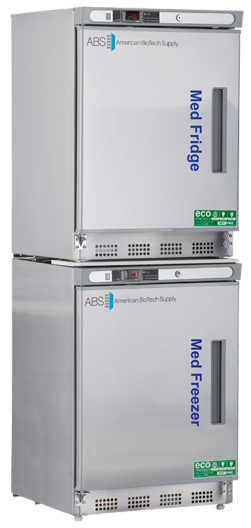

Two stacked stainless steel laboratory Medical cold storage appliances: the top labeled Med Fridge and the bottom Med Freezer. Both display the American BioTech Supply logo and eco-friendly symbols, with control panels above the left hinged doors and robust handles for secure closure.
