23 Cu. Ft. Premier Stainless Steel Glass Door Pharmacy Refrigerator

Product Number: PH-ABT-HC-SSP-23G
ALSO AVAILABLE IN THESE SIZES49 72 CU. FT.



The Premier Pharmacy Stainless Steel Refrigerators feature a microprocessor temperature controller, allowing for precise temperature control, recovery and maintenance versus mechanical style thermostats.

Critical samples and supplies are security backed with an extensive package of temperature security and alarm features.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-SSP-23G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this refrigerator operate at?

The microprocessor temperature controller has an adjustable operating temperature range of 36°F to 46°F.

Temp Controller tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 26 7/8" wide, 35 3/4" deep, and 83 1/4" high with casters (77 1/2" without casters). Shipping weight is 356 lbs.

Specifications tab
What alarms and monitoring features are included?

It has audible and visual Hi/Lo temperature alarms, a sensor error alarm, 2 probes (1 in air and 1 in a sample bottle), continuous simulated product temperature display, remote alarm contacts, and a digital temperature display with battery back-up to support temperature monitoring and alarms.

Details tab
What are the electrical requirements?

115V, 60 Hz, 3 Amps, 1/5 HP.

Specifications tab
What refrigerant does this unit use?

It uses hydrocarbon natural refrigerant (R290), which does not contain hydrofluorocarbons and reduces global-warming potential while meeting EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Details tab
What warranty and certifications come with this refrigerator?

It carries a 2 year parts and labor warranty plus an additional 3 year compressor parts warranty. It is Intertek ETL Listed and Green Leaf Verified, and the controller is calibrated using a NIST traceable device with certificate included.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-SSP-23G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • Audible and visual Hi/Lo temperature alarm 2 probes; 1 in air and 1 in sample bottle Sensor error alarm
  • Continuous product (simulated) temperature display Remote alarm contacts
  • Forced draft air circulation Keyed door lock
  • Magnetic door gaskets for positive seal Integrated door handle
  • LED interior lights are safety shielded and switch controlled Probe access port (3/4″)
  • 4 ea. adjustable shelves
  • Stainless steel exterior
  • White-powder coated aluminum interior with 304 stainless steel floor Easily cleaned smooth interior
  • Hydrocarbon natural refrigerant (R290)
  • 2 year parts and labor warranty, plus an additional 3 year compressor parts warranty
  • 4 swivel casters (5 3/4″)
  • Exterior dimensionsWidth: 26 7/8”Depth: 35 ¾”Height: 83 1/4” with casters; 77 1/2” without casters
  • Cycle defrost
  • 115V, 60 Hz, 3 Amps, 1/5 HP
  • ETL listed
  • Shipping weight: 356 lbs.
  • Microprocessor temperature controller
  • Digital temperature display with battery back-up to support temperature monitoring and alarms
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in sample bottle
  • Adjustable operating temperature range: 36°F to 46°F
  • Calibrated using a NIST traceable device, certificate included

Related Products

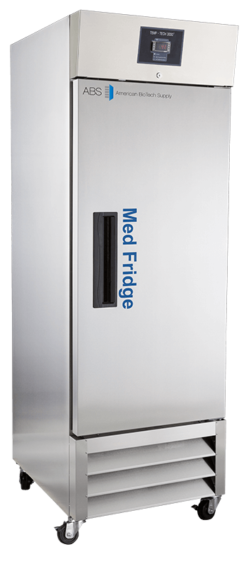

23 Cu. Ft. Stainless Steel Refrigerator solid door stainless steel pharmacy refrigerator by American Biotech Supply, designed for secure, energy-efficient storage of vaccines and medications. Door is closed. Display on top panel.
PH-ABT-HC-SSP-23 23 Cu. Ft. Premier Stainless Steel Pharmacy Refrigerator
Product Number: PH-ABT-HC-SSP-23

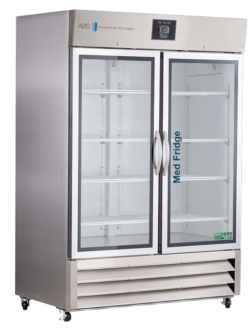

A large, Stainless Steel Pharmacy Refrigerator with two glass doors, five interior shelves, and a digital control panel on top. The left door is labeled Med Fridge. The fridge is on wheels and has vented panels at the bottom.
