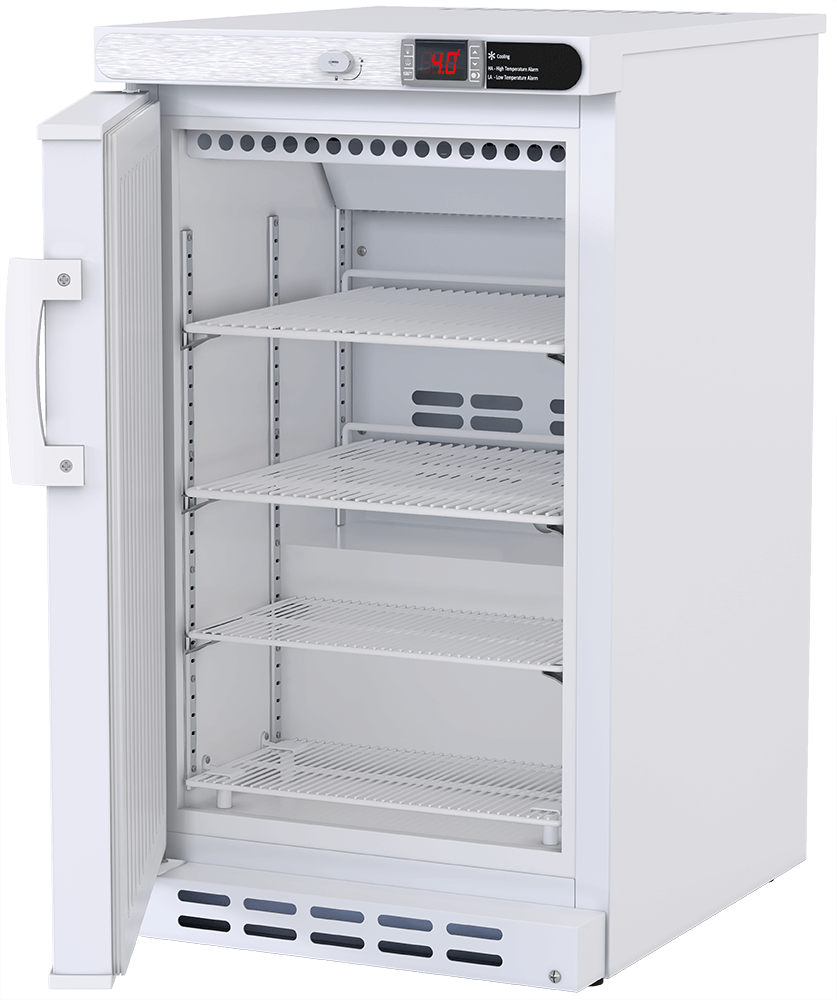

White laboratory refrigerator with glass door open, revealing four wire shelves. Digital display on top shows "40°F" in red. Left side has white handle and temperature control dial.
PH-ABT-NSF-UCBI-0204-LH DataSheet

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

2.5 Cu. Ft. Built-In Vaccine Undercounter Refrigerator Left Hinged Certified to NSF/ANSI 456

Product Number: PH-ABT-NSF-UCBI-0204-LH
**

These premier built-in undercounter refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Refrigerators protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

The solid door refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, and probe access ports with included probes. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.

For more information on Vaccine Storage: Vaccine Storage
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

*-one or more of these certifications may apply to this unit.



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-NSF-UCBI-0204-LH

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The temperature setpoint range is 1°C to 10°C. Note that the setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements.

Temp Controller tab
How much does it weigh and what's the shipping weight?

Product weight is 72 lbs. and shipping weight is 88 lbs.

Description tab
What shelving comes with it?

It includes four shelves — three adjustable and one fixed — with a guard rail on the back.

Description tab
What alarms does it have, and can I connect a remote alarm?

It has High/Low temperature alarms compliant with the alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage, and state switching remote alarm contacts for external alarm connection.

Temp Controller tab
What is the warranty?

Two (2) years parts and labor warranty, excluding display probe calibration, plus a Five (5) years compressor warranty.

Description tab
What certifications does this unit carry?

It is Certified to NSF/ANSI 456 (vaccine storage), Intertek ETL Listed, Intertek Sanitation Certified, Green Leaf Verified, and UL/cUL Listed (US & Canada), and certified to the UL471 standard for hydrocarbon refrigerant safety.

Certifications
What does NSF/ANSI 456 certified mean, and who is it for?

NSF/ANSI 456 is the vaccine storage standard from NSF International, which sets performance and construction requirements for vaccine refrigerators and freezers. A certified unit like this one is tested by an independent third-party lab under protocols that go far beyond those for a standard pharmacy refrigerator: vaccine simulation devices are placed at worst-case positions inside the unit and temperatures are recorded 30 to 90 times faster than a typical data logger. It holds temperature within ±0.5°C, with forced-air circulation and dual temperature monitoring with audible and visual alarms. It is for anyone who stores vaccines or other temperature-sensitive pharmaceuticals and needs certified protection through heavy use and frequent door openings: pharmacies, clinics, physician offices, hospitals and immunization programs.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-NSF-UCBI-0204-LH

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Description
Single Solid Door Pharmacy/Vaccine Undercounter Refrigerator Built-In Left Hinged
Operational environment
Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
Storage capacity
2.5 cu. ft. gross volume
Door
One swing solid door, self-closing, left hinged, non-reversible, magnetic sealed gasket, keyed lock
Shelves
Four shelves (three adjustable/one fixed) with guard rail on back
Mounting
Leveling legs
Interior lighting
N/A
Airflow management
Forced Air technology, patent pending
External probe access
Side wall port (3/8″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Pyxis®, Omnicell® and AcuDose RX® compatible
General warranty
Two (2) years parts and labor warranty, excluding display probe calibration
Compressor warranty
Five (5) years compressor warranty
Product Weight
72 lbs.
Shipping Weight
88 lbs.
Rated Amperage
0.9 Amps
Agency Listing and Certification
Certified in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. UL, C-UL, ETL, C- ETL listed (either single or dual agency listings) and certified to UL471 standard, hydrocarbon refrigerant safety.
Uniformity¹ (Cabinet air)
+/-1.1°C
Stability² (Cabinet air)
+/- 0.7°C
Maximum temperature variation (Cabinet air)
+/- 1.2°C
Temperature rise after 8 sec door openings
Temperature did not exceed 7.2°C at any probe for all required NSF/ANSI 456 testing protocolsᶟ
Recovery after 3 min door opening
All probes recover to under 8°C within 7.5 min.
Energy consumption
0.58 KWh/day⁴
Average heat rejection
1.00 KWh/day (142 BTU/h)⁴
Noise pressure level (dBA)
34 or less installed
Pull down time to nominal operating temp
42 min
Controller technology
Parametric, microprocessor, LED display with 0.1°C resolution
Temperature setpoint range
1°C to 10°C (Setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
Calibration
Calibrated using a NIST traceable device, certificate included
External alarm connection
State switching remote alarm contacts
Alarms
High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
Simulator ballast
Glass bead thermal media
