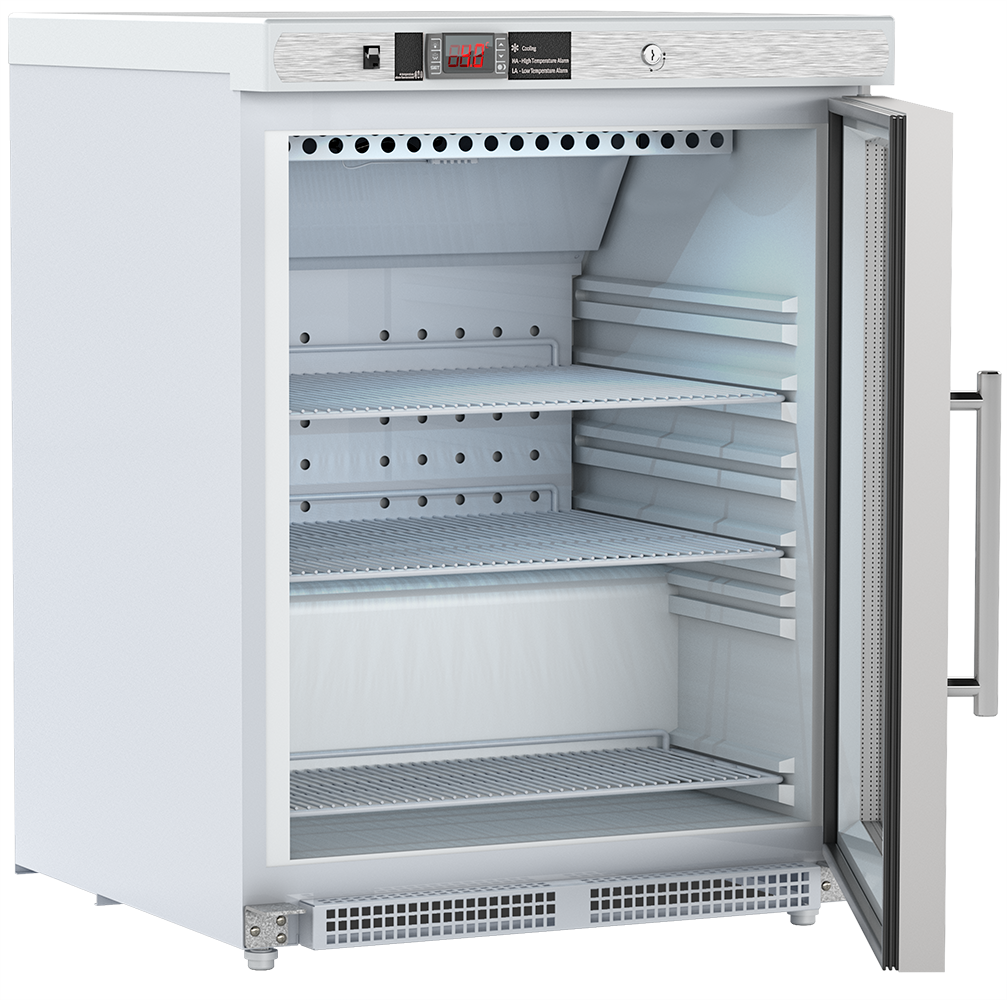

White laboratory refrigerator with open door displaying four wire shelves, digital display panel, and temperature controls. Interior includes ventilation grilles and adjustable shelf supports.
PH-ABT-NSF-UCBI-0404G-ADA DataSheet Manual 25569 - NSF-ANSI 456 Units V4

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

4.6 Cu. Ft. Built-in Glass Door Vaccine Refrigerator ADA Certified to NSF/ANSI 456

Product Number: PH-ABT-NSF-UCBI-0404G-ADA

These premier built-in undercounter refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Refrigerators protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

The ADA compliant, glass door refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports with included probes. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.

For more information on Vaccine Storage: Vaccine Storage
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

*-one or more of these certifications may apply to this unit.



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-NSF-UCBI-0404G-ADA

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The temperature setpoint range is 1°C to 10°C. The setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior width is 23 7/8″, exterior depth is 26″, and exterior height is 31 15/16″. Product weight is 100 lbs. and shipping weight is 140 lbs.

Description tab
How many shelves does it come with and are they adjustable?

It includes three shelves, two adjustable and one fixed, with a guard rail on the back.

Description tab
What are the electrical requirements?

The unit draws 1.74 Amps and uses a NEMA 5-15 plug with an 8 to 10 ft typical power cord conforming to UL471 requirements. The facility must provide 110-120V AC with a 15 A minimum circuit.

Description tab
What alarms are included on this refrigerator?

It has high and low temperature alarms compliant with the alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage, plus state switching remote alarm contacts for external alarm connection.

Temp Controller tab
What warranty coverage comes with the unit?

The general warranty is two (2) years parts and labor, excluding display probe calibration. The compressor is covered by a separate five (5) year warranty.

Description tab
What does NSF/ANSI 456 certified mean, and who is it for?

NSF/ANSI 456 is the vaccine storage standard from NSF International, which sets performance and construction requirements for vaccine refrigerators and freezers. A certified unit like this one is tested by an independent third-party lab under protocols that go far beyond those for a standard pharmacy refrigerator: vaccine simulation devices are placed at worst-case positions inside the unit and temperatures are recorded 30 to 90 times faster than a typical data logger. It holds temperature within ±0.5°C, with forced-air circulation and dual temperature monitoring with audible and visual alarms. It is for anyone who stores vaccines or other temperature-sensitive pharmaceuticals and needs certified protection through heavy use and frequent door openings: pharmacies, clinics, physician offices, hospitals and immunization programs.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-NSF-UCBI-0404G-ADA

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Description
Single Glass Door Pharmacy/Vaccine Undercounter Refrigerator Built-In ADA Compliant
Operational environment
Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
Storage capacity
4.6 cu. ft. gross volume
Door
One swing glass door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock
Shelves
Three shelves (two adjustable/one fixed) with guard rail on back
Mounting
Low profile roller wheels and leveling legs
Interior lighting
Shielded, switched LED lighting, full coverage, balanced spectrum
Airflow management
Forced Air technology, patent pending
External probe access
Rear wall port (1/2″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Pyxis®, Omnicell® and AcuDose RX® compatible
General warranty
Two (2) years parts and labor warranty, excluding display probe calibration
Compressor warranty
Five (5) years compressor warranty
 Exterior Width
23 7/8″
 Exterior Depth
26″
 Exterior Height
31 15/16″
Product Weight
100 lbs.
Shipping Weight
140 lbs.
Rated Amperage
1.74 Amps
Power Plug/Power Cord
NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine storage power cord warning label
Facility Electrical Requirement
110-120V AC: 15 A (minimum)
Agency Listing and Certification
Certified in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. UL, C-UL, ETL, C-ETL listed (either single or dual agency listings) and certified to UL471 standard, hydrocarbon refrigerant safety.
Included Accessories
Pharmacy refrigerator/freezer toolkit and temperature logs



Uniformity¹ (Cabinet air)
+/- 0.8°C
Stability² (Cabinet air)
+/- 1.2°C
Maximum temperature variation (Cabinet air)
+/- 1.4°C
Temperature rise after 8 sec door openings
Temperature did not exceed 6.4°C at any probe for all required NSF/ANSI 456 testing protocolsᶟ
Recovery after 3 min door opening
All probes recover to under 8°C within 4.8 min.
Energy consumption
1.15 KWh/day⁴
Average heat rejection
1.57 KWh/day (224 BTU/h)⁴
Noise pressure level (dBA)
43 or less installed
Pull down time to nominal operating temp
35 min
Controller technology
Parametric, microprocessor, LED display with 0.1°C resolution
Temperature setpoint range
1°C to 10°C (Setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
Calibration
Calibrated using a NIST traceable device, certificate included
External alarm connection
State switching remote alarm contacts
Alarms
High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
Simulator ballast
Glass bead thermal media
