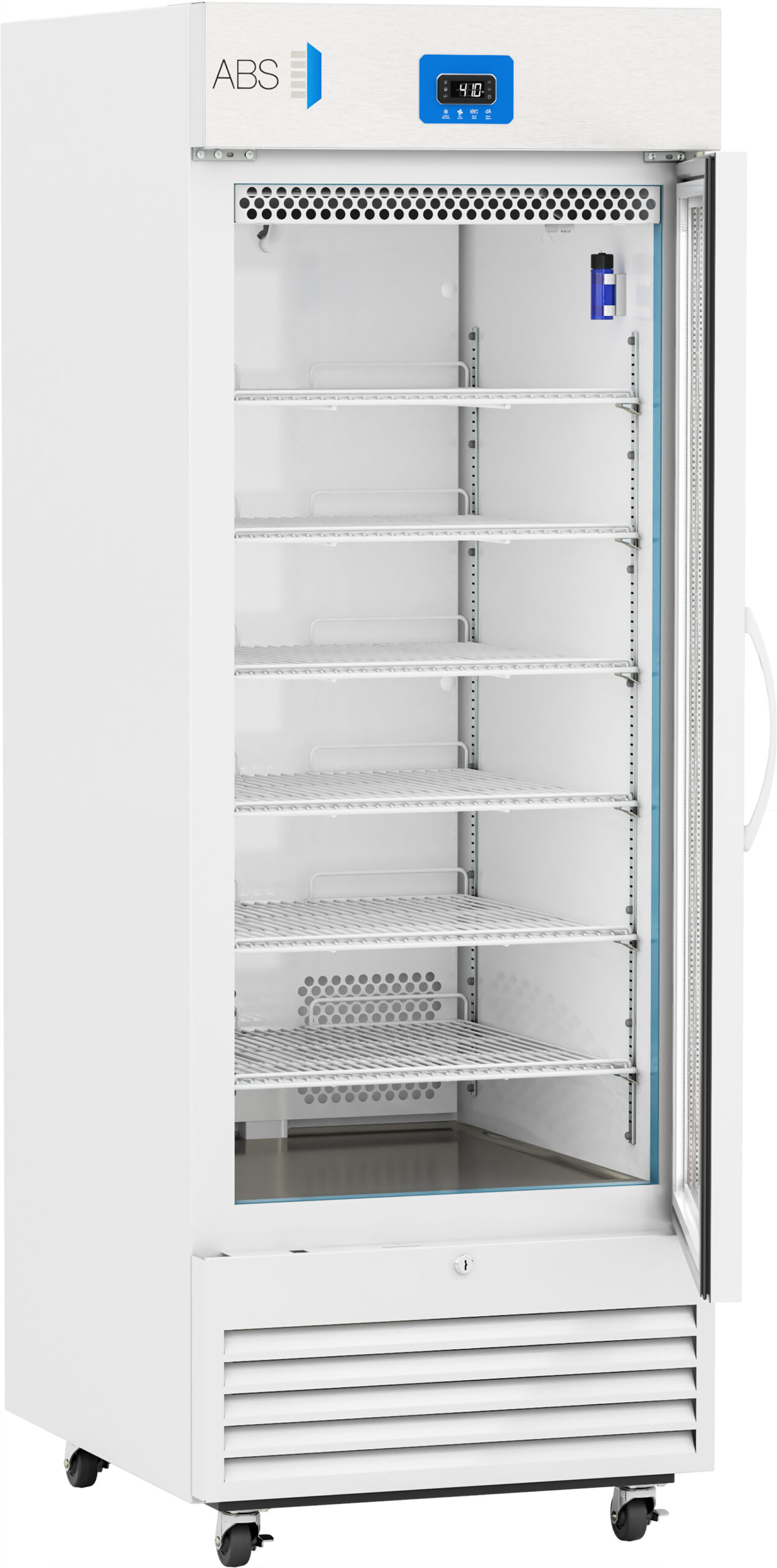

A tall, white, upright laboratory refrigerator with a glass door, several empty metal shelves, a digital temperature display, and the letters “ABS” on the top front. The unit stands on four caster wheels.
PH-ABT-VS-26G DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

26 Cu. Ft. Premier Glass Door Pharmacy Refrigerator with Variable Speed Compressor

Product Number: PH-ABT-VS-26G ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 33 36 47 49 69 72 CU. FT.

These premier pharmacy refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, a self-closing glass door, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7- year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-VS-26G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does the PH-ABT-VS-26G maintain?

The adjustable temperature range is 36° F to 46° F (2° C to 8° C). It is calibrated using a NIST traceable device, and the certificate is included.

Temp Controller tab
How much clearance does this refrigerator need for installation?

The refrigerator requires a minimum 2" of clearance at the back and sides of the unit for proper ventilation.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior dimensions are 28.5" wide, 36.5" deep, and 81.75" high. Product weight is 292 lbs and shipping weight is 345 lbs.

Description tab
What refrigerant and defrost method does it use?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, and runs on cycle defrost.

Refrigeration System tab
What are the electrical requirements?

The unit is rated at 3 Amps and uses a NEMA 5-15 plug. The facility must provide 110–120V AC with a 15A breaker and NEMA 5-15 receptacle.

Description tab
What alarms and monitoring features are included?

The unit has audible and visual high/low temperature alarms and remote alarm contacts for external alarm connection. It also includes a product simulator bottle with glass bead media as the display probe and a probe access port (3/4") on the rear wall.

Temp Controller tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-VS-26G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity
26 Cu. Ft.
Door
One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Six (6) adjustable shelves (adjustable in ½” increments)
Drawers
Non-applicable
Mounting and Installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation – Patented air flow technology
External probe access
Probe access port (3/4″) on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product Weight (lbs)
292
Shipping Weight (lbs)
345
Exterior Width (in)
28.5″
Exterior Depth (in)
36.5″
Exterior Height (in)
81.75″
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed, Energy Star Certified
Compressor
Hermetic, Variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle defrost
Controller technology
Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level   (dBA)
  40 dBA or less installed
Display technology
  Digital Temperature Display
Stability – simulator    ballast (°C)
  +/- 0.3° C
Average heat rejection (BTU/h)
  < 320 BTU/h
Max temp variation – cabinet air (°C)
  +/- 1.5° C
Adjustable Temperature Range
36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
External alarm    connection
  Remote alarm contacts
Included accessories
  Pharmacy refrigerator/freezer toolkit
Energy consumption (KWh/day)
  <1.2 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
Display probe
  Product simulator bottle with glass bead media
Pull down time to      nominal operating temp
  < 35 min (empty)
Alarms
  Audible and visual high/low temperature alarms
Disclaimer(s):
  Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note
  Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and   ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady   state, no door openings

Related Products

A tall, white medical refrigerator with a glass door, six interior shelves, digital control panel on top, ABS logo, and Med Fridge label on the door; the unit stands on four wheels and is empty inside.
PH-ABT-NSF-26G 26 Cu. Ft. Premier Pharmacy Glass Door Refrigerator Certified to NSF/ANSI 456
Product Number: PH-ABT-NSF-26G

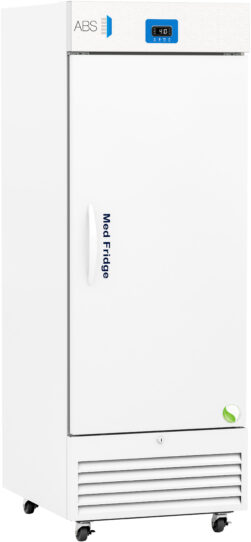

A tall, white medical refrigerator with a digital temperature display reading 3.4°C. The words Med Fridge are printed vertically on the door, which has a white handle. The unit is on wheels and features a vented base panel.
PH-ABT-VS-26S 26 Cu. Ft. Premier Solid Door Pharmacy Refrigerator with Variable Speed Compressor
Product Number: PH-ABT-VS-26S

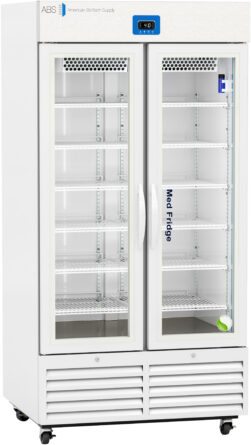

A tall, white medical refrigerator with glass double doors and shelves inside. The display panel shows a digital temperature. The label reads “Med Fridge.” The unit stands on wheels and has ventilation grilles at the bottom. Manufactured by American BioTech Supply.
PH-ABT-VS-36G 36 Cu. Ft. Premier Glass Door Pharmacy Refrigerator with Variable Speed Compressor
Product Number: PH-ABT-VS-36G

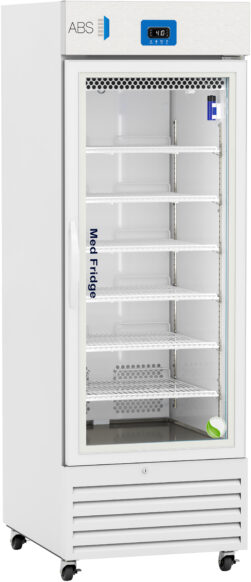

A tall, white medical refrigerator with a glass door showing seven empty shelves inside. The display panel at the top shows a digital temperature reading. The fridge is labeled “Med Fridge” on the side and stands on wheels.
