Standard Series
Shows the solid swing door with stainless steel handle and powder-coated steel exterior. Displays five adjustable shelves and spacious 30 cu. ft. storage capacity
Shows the solid swing door with stainless steel handle and powder-coated steel exterior.

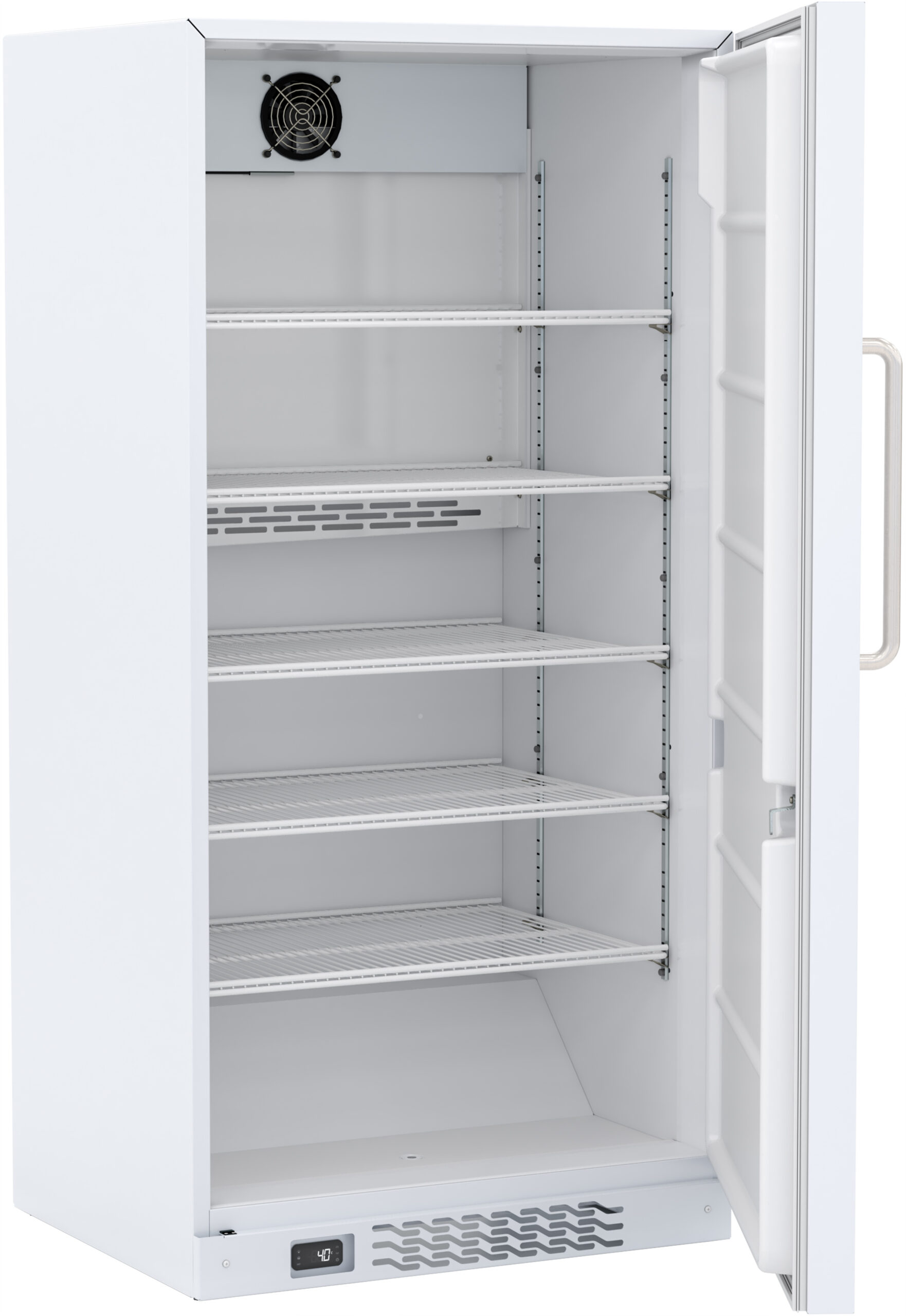

Displays five adjustable shelves and spacious 30 cu. ft. storage capacity
ABT-HC-30R DataSheet 26165 Manual - 30Cuft HC Refrigerator Laboratory REV 1

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

30 Cu. Ft. Standard Laboratory Refrigerator with Natural Refrigerants

Product Number: ABT-HC-30R
ALSO AVAILABLE IN THESE SIZES14 17 20 CU. FT.

Designed for reliable and eco-conscious laboratory storage, this 30 cu. ft. standard laboratory refrigerator offers versatile performance for lab environments. Its temperature control is powered by microprocessor technology and protected by audible and visual alarms. It maintains tight temperature uniformity with an adjustable operating range of 2°C to 10°C. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. This unit offers 30 cubic feet of spacious storage and five adjustable shelves for versatile organization. With a low energy consumption and environmental benefits, the ABT-HC-30R is an efficient and dependable solution for general laboratory applications.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-30R

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on the ABT-HC-30R?

The adjustable temperature range is 2°C to 10°C. The minimum temperature is limited to avoid freezing.

Temp Controller tab
What are the exterior dimensions and weight?

The unit is 35.75″ wide, 35.5″ deep, and 72.5″ high. Product weight is 330 lbs and shipping weight is 360 lbs.

Performance tab and Details tab
How much clearance does it need around the cabinet?

It requires a minimum of 4″ of clearance around the back and sides for proper ventilation, and more if next to heat-rejecting equipment. Improper installation will void the warranty and can lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What refrigerant does it use, and is it EPA compliant?

It uses R600a Isobutane, which is EPA SNAP compliant.

Performance tab
What alarms and monitoring features are included?

The unit has audible and visual high/low-temperature alarms, a door ajar alarm, and remote alarm contacts. It uses a microprocessor temperature controller with a digital display at 0.1° resolution, and includes a product simulator bottle with glass bead media.

Temp Controller tab
What electrical supply does it require?

It needs 110–120V AC on a 15A breaker with a NEMA 5-15 receptacle. The unit is rated at 3.1 Amps and comes with a NEMA 5-15P plug and a 6 ft cord.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-30R

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
30 Cu. Ft.
Door
One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves
Five adjustable
Drawers
Non-applicable
Mounting and Installation
Leveling Legs
Interior lighting
Non-applicable
Airflow Management
Forced draft circulation
External probe access
3/4″ probe access port on rear wall
Insulation
EPA compliant high density urethane foam
Exterior materials
Powder coated steel
Access control
Keyed Door Lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor parts warranty
Product Weight (lbs)
330
Shipping Weight (lbs)
360
Rated Amperage
3.1 Amps
Power Plug/Power Cord
NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, Energy Star Certified
Uniformity (Cabinet air)
+/- 1.6°C
Stability (Cabinet air)
+/- 1.0°C
Maximum temperature variation
3.6 °C Total
(Cabinet air)
Energy Consumption (KWh/day)
< 1.5 KWh/day
Average Heat Rejection (BTU/hr)
500 BTU/hr
Pull down time to nominal operating temp
<35 min (empty)
Width (in.)
35.75″
Depth (in.)
35.5″
Height (in.)
72.5″
Refrigerant
EPA SNAP compliant R600a Isobutane
Controller technology
Microprocessor temperature controller
Battery Backup
Optional accessory
Display technology
Digital Temperature Display, Sample simulated digital temperature display; .1° Resolution
Alarms
Product simulator bottle with glass bead media
Display Probe
Audible and visual high/low-temperature alarms, Door ajar alarm, Remote alarm contacts
Temperature Setpoint Range Notes
Minimum temperature limited to avoid freezing
Adjustable Temperature Range
2°C to 10°C
External alarm connection
Remote alarm contacts
Disclaimers
Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure

Related Products

A tall, white upright laboratory freezer with a digital ABS control panel near the top. Similar to the ABT-HC-30R-P Premier Laboratory Refrigerator, it features a solid door, vertical handle, caution sticker, vents, green logo, and stands on four wheels.
ABT-HC-30R-P 30 cu. ft. Premier Laboratory Refrigerator with Natural Refrigerants
Product Number: ABT-HC-30R-P
A tall, white, upright laboratory freezer with a vertical handle on the left side of the door. There is a caution sticker, a small digital display near the bottom, ventilation grilles, and an “American BioTech Supply” logo at the top.
ABT-HC-MFS-30 30 Cu. Ft. Standard Manual Defrost Laboratory Freezer with Natural Refrigerants
Product Number: ABT-HC-MFS-30

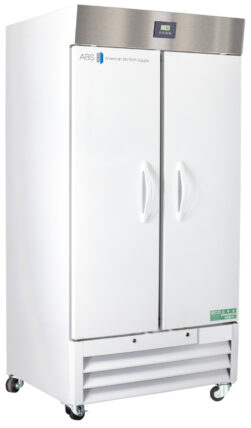

A large, white, double-door commercial refrigerator with a digital control panel on top, labeled American BioTech Supply. It stands on wheels, has two vertical handles, and a vented panel near the base. The Eco-friendly label is visible on the bottom right.
