17 Cu. Ft. Standard Laboratory Refrigerator with Natural Refrigerants

Product Number: ABT-HC-RFP-17
ALSO AVAILABLE IN THESE SIZES14 20 30 CU. FT.

The Standard Laboratory Refrigerators are purpose built for scientific and research applications.  These units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies.  A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.

Models are ETL Listed.

Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-RFP-17

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range on this refrigerator?

The adjustable operating temperature range is 1°-10°C, managed by a microprocessor temperature controller with a standard digital display at .1° resolution.

Temp Controller tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 30.75″ W x 29″D x 67.75″H, and the shipping weight is 240 lbs.

Specifications tab
What refrigerant does it use?

It uses natural hydrocarbon refrigerant (R600a), which reduces global-warming potential and meets EPA/SNAP mandates along with UL and ASHRAE compliance guidelines.

Details tab
How many shelves does it come with, and is the door reversible?

It includes 5 adjustable shelves and one solid swing door that is right hinged and not reversible.

Details tab
Does it have alarms and remote monitoring capability?

Yes, it has audible and visual high/low temperature alarms, plus remote alarm contacts.

Temp Controller tab
What's the warranty and what certifications does it carry?

The warranty is one year parts and labor, plus an additional four year compressor parts warranty. The unit is Intertek ETL Listed and Green Leaf Verified.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-RFP-17

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 17 Cu. Ft. capacity
  • One solid swing door, right hinged, not reversible
  • 5 adjustable shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • One probe access port (3/4″)
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R600a)
  • One year parts and labor warranty, plus additional four year compressor parts warranty
  • Exterior dimensions: 30.75″ W x 29″D x 67.75″H
  • Cycle defrost
  • 115V, 60 Hz, 2.5 Amps, 1/4 HP
  • ETL listed
  • Shipping weight: 240 lbs.
  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°-10°C
  • Standard Digital Temperature Display
  • Sample simulated digital temperature display; .1° Resolution
  • Audible and visual high/low temperature alarms
  • Remote alarm contacts

Related Products

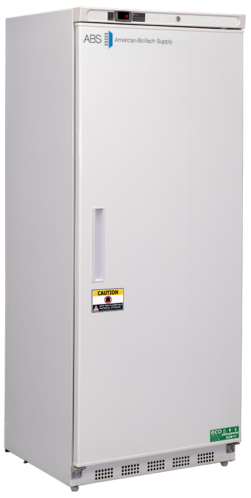

A tall, white upright laboratory freezer by American BioTech Supply with a rectangular handle, digital display, caution sticker, and eco-friendly label. The door is closed, and the freezer stands on adjustable feet.
ABT-HC-RFP-20 20 Cu. Ft. Standard Laboratory Refrigerator with Natural Refrigerants
Product Number: ABT-HC-RFP-20

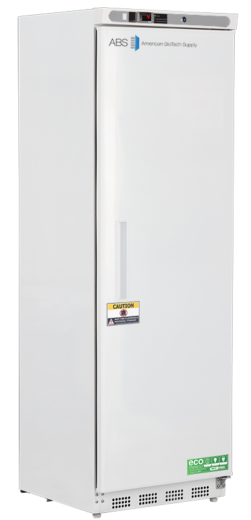

A tall, upright white laboratory freezer with the label “ABS American BioTech Supply” on the door, a vertical handle, digital display at the top, warning caution sticker, and eco-friendly certification near the bottom. The door is closed.
