4 Cu. Ft. Hazardous Location Undercounter Freezer

Product Number: ABT-HC-EFP-04
ALSO AVAILABLE IN THESE SIZES14 17 20 30 CU. FT.

In the fast-paced world of scientific and industrial laboratories, precision and safety are key. Our Hazardous Location Undercounter Freezers are engineered for use in environments where volatile or explosive conditions could exist. Crafted with ATEX and non-sparking components, these freezers are designed to keep you and your substances safe. These units meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines. Engineered with a microprocessor temperature controller, these units provide exceptional precision, recovery, and maintenance. You’ll also experience the power of natural hydrocarbon refrigerants through energy savings and a greener laboratory footprint—all while enjoying stellar system performance.*

*Note: Please be aware that these units come without a plug and require hardwiring in conduit, ensuring a secure connection in your high-risk environment. Our freestanding models also require 4 inches of clearance for proper ventilation and safety.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-EFP-04

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can this freezer hold?

The adjustable operating temperature range is -15°C to -25°C, set through the microprocessor temperature controller.

Temp Controller tab
What are the exterior dimensions and weight?

The exterior measures 23 5/8″ wide, 23 5/8″ deep, and 32 1/4″ high. Product weight is 91 lbs. and shipping weight is 118 lbs.

Specifications tab
Does it come with a power cord I can plug in?

No. The unit is not equipped with a plug and must be hardwired in conduit. It runs on 115V, 60Hz, 1.4 Amps.

Specifications tab
How much clearance does the freezer need around it?

Freestanding models require 4 inches of clearance for proper ventilation and safety.

Summary
What hazardous location ratings does this freezer meet?

It meets NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A, B, C & D, and uses ATEX and non-sparking components.

Details tab
What alarms and monitoring features are included?

The microprocessor controller has a digital temperature display, audible and visual high and low temperature alarms, and remote alarm contacts.

Temp Controller tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-EFP-04

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 4 Cu. Ft. Capacity
  • One solid swing door
  • Two fixed shelves + three removable baskets
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • Exterior materials: white powder coated steel
  • Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Hydrocarbon, natural refrigerant (R600a)
  • Two year parts and labor warranty
  • ETL Listed
  • Utilizes ATEX and non-sparking components for safety
  • Meet NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Groups A,B,C & D.
  • Exterior dimensionsWidth: 23 5/8″Depth: 23 5/8″Height: 32 1/4″
  • Manual defrost
  • Not equipped with plug; must be hardwired in conduit
  • 115V, 60Hz, 1.4 Amps
  • Product weight: 91 lbs.
  • Shipping weight: 118 lbs.
  • Microprocessor Temperature Controller
  • Digital temperature display
  • Remote alarms contacts
  • Audible and visual high and low temperature alarms
  • Adjustable operating temperature range:-15°C to -25°C

Related Products

A white American BioTech Supply refrigerator with digital temperature display. The door has a large yellow warning label for flammable material storage and a smaller red caution label at the bottom. The refrigerator has no visible contents.
ABT-FFP-04 4 Cu. Ft. Standard Undercounter Flammable Storage Freestanding Freezer
Product Number: ABT-FFP-04

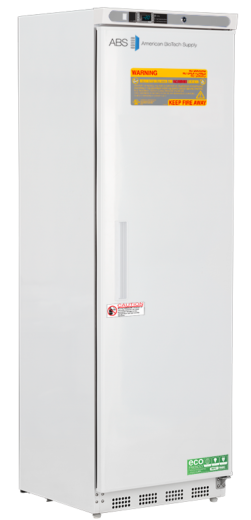

A tall, white, upright laboratory freezer from American BioTech Supply. The door displays several safety stickers, including warnings and an eco-friendly label at the bottom. The freezer has a vertical handle and ventilation slots near the base.
