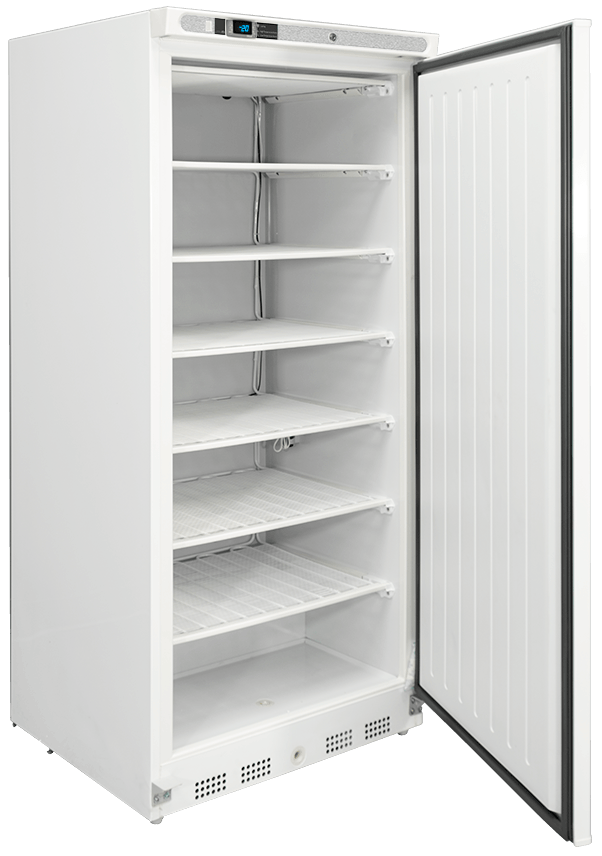

White upright freezer with open door displaying seven white shelves and digital control panel at top. Interior is empty and ready for storage.
ABT-HC-EFP-17 DataSheet 25683 - Hazardous Location Material Storage Refrigerator and Freezer with Microprocessor Temp Control 11212023

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

17 Cu. Ft. Standard Hazardous Location Freezer

Product Number: ABT-HC-EFP-17
ALSO AVAILABLE IN THESE SIZES4 14 20 30 CU. FT.

Our Hazardous Location Freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines. These units are engineered for use in environments where volatile / explosive conditions could potentially exist.  For storage of flammable or volatile materials within typical laboratory or non-volatile environments, see Flammable Material Storage units.

Utilizes ATEX and non-sparking components for safety. Models feature a microprocessor temperature controller, allowing for precise temperature control, recovery and maintenance versus mechanical style thermostats.

Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Please Note: Not equipped with plug; must be hardwired in conduit.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-EFP-17

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can this freezer be set to?

The microprocessor temperature controller has an adjustable operating temperature range of -15°C to -25°C.

Temp Controller tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 30.75″ wide, 29″ deep, and 67.75″ high. Shipping weight is 220 lbs.

Specifications tab
Does the unit come with a power cord?

No. The freezer is not equipped with a plug and must be hardwired in conduit to a 120 VAC power source. Final power connections at the site must be hardwired to meet local codes.

Specifications tab and Datasheet
What are the electrical requirements?

115V, 60Hz, 5.5 Amps, 1/2 HP.

Specifications tab
What hazardous location ratings does this freezer meet?

It meets NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A, B, C & D, and utilizes ATEX and non-sparking components.

Summary
What alarms and monitoring features are included?

The unit has audible and visual high and low temperature alarms, state switching remote alarm contacts, a digital temperature display that is C/F switchable, and external probe access.

Datasheet
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-EFP-17

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 17 Cu. Ft. Capacity
  • One solid swing door, right hinged, not reversible
  • Six fixed shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • Hydrocarbon, natural refrigerant (R290)
  • Two year parts and labor warranty
  • Utilizes ATEX and non-sparking components for safety
  • Meet NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Groups A,B,C & D.
  • Exterior dimensionsWidth: 30.75″Depth: 29″Height: 67.75″
  • Manual defrost
  • Not equipped with plug; must be hardwired in conduit
  • to 120 VAC power source
  • 115V, 60Hz, 5.5 Amps, 1/2 HP
  • ETL listed
  • Shipping weight:220 lbs





  • Microprocessor Temperature Controller
  • Adjustable operating temperature range:-15°C – -25°C

Related Products

A tall, white laboratory refrigerator by American BioTech Supply stands upright. The door has warning labels, including a yellow sign reading “Flammable Material Storage” and “Keep Fire Away.” A handle is centered vertically on the door’s left edge.
ABT-HC-FFP-17 17 Cu. Ft. Standard Flammable Storage Freezer with Natural Refrigerants
Product Number: ABT-HC-FFP-17

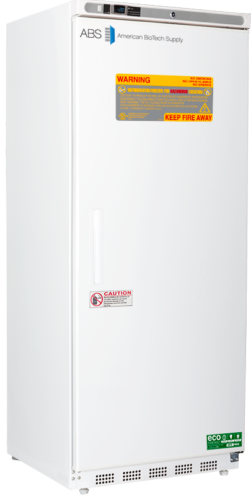

A tall, white, upright laboratory freezer by American BioTech Supply ABS with a handle on the left, digital display on top, warning and caution labels, and ECO logo near the bottom right corner. The front is plain with several safety notices.
