17 Cu. Ft. Standard Flammable Storage Freezer with Natural Refrigerants

Product Number: ABT-HC-FFP-17
ALSO AVAILABLE IN THESE SIZES4 14 20 30 CU. FT.

Flammable storage freezers meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.

Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Please Note: For manual defrost freezers, periodic manual defrosting is required.  Freestanding models require 4″ of clearance around back and sides of unit for proper ventilation.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-FFP-17

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set this freezer to?

The adjustable operating temperature range is -15°C to -25°C.

Temp Controller tab
What are the exterior dimensions and how much clearance does it need?

Exterior dimensions are 30.75″ W x 29” D x 67.75″ H, and the unit requires 4” clearance on the sides and back for adequate ventilation.

Specifications tab
What refrigerant does it use?

It uses natural hydrocarbon refrigerant (R290), which does not contain hydrofluorocarbons and reduces global-warming potential while meeting EPA/SNAP mandates and UL and ASHRAE compliance guidelines.

Summary
What are the electrical requirements?

The unit runs on 115V, 60 Hz, 5.5 Amps, and is ½ HP. The datasheet notes a NEMA 5-15 plug that conforms to UL471 requirements.

Specifications tab
What alarms and monitoring does it have?

It includes a microprocessor temperature controller with digital temperature display and sample simulated probe, audible and visual high and low temperature alarms, and remote alarm contacts.

Temp Controller tab
How is it configured inside and how is the door secured?

The interior has six fixed shelves, and the single solid swing door is right hinged with a keyed door lock and a magnetic door gasket for a positive seal.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-FFP-17

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 17 Cu. Ft. Capacity
  • One solid swing door, right hinged
  • Six fixed shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • Probe access port (3/4″)
  • Powder coat exterior
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R290)
  • Utilizes ATEX and non-sparking components for safety
  • Two year parts and labor warranty



  • Exterior dimensions: 30.75″ W x 29” D x 67.75″H
  • Note: This unit must have 4” clearance on sides and back for adequate ventilation
  • Manual defrost
  • 115V, 60 Hz, 5.5 Amps, ½ HP
  • ETL listed
  • Shipping weight:220 lbs.
  • Microprocessor temperature controller
  • Digital temperature display with sample simulated probe
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • Adjustable operating temperature range:-15°C – -25°C

Related Products

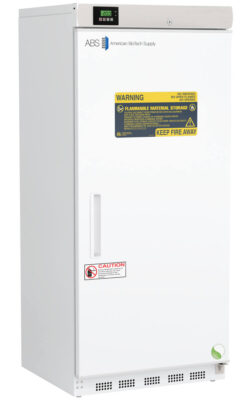

A tall, white laboratory refrigerator with a digital display on top, labeled “ABS American BioTech Supply.” The door has yellow and red warning labels stating, “Flammable Material Storage” and “Keep Fire Away,” as well as a caution notice near the handle.
