14 Cu. Ft. Standard Flammable Storage Freezer with Natural Refrigerants

Product Number: ABT-HC-FFP-14
ALSO AVAILABLE IN THESE SIZES4 17 20 30 CU. FT.

or

Flammable storage freezers meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.

Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL or ETL, ASHRAE compliance guidelines.

Please Note: For manual defrost freezers, periodic manual defrosting is required.  Freestanding models require 4″ of clearance around back and sides of unit for proper ventilation.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-FFP-14

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this freezer operate at?

The adjustable operating temperature range is -15°C to -25°C, set through the microprocessor temperature controller with a digital temperature display.

Temp Controller tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 23.625"W x 24"D x 73"H, and the shipping weight is 195 lbs.

Specifications tab
How much clearance does the unit need?

Freestanding models require 4" of clearance around the back and sides for proper ventilation.

Specifications tab
What refrigerant does this freezer use?

It uses natural hydrocarbon refrigerant (R290), which does not contain hydrofluorocarbons and reduces global-warming potential while meeting EPA/SNAP mandates and UL or ETL, ASHRAE compliance guidelines.

Summary
What alarms are included?

The unit has audible and visual high and low temperature alarms, plus remote alarm contacts.

Temp Controller tab
How many shelves does it come with and what type of door?

It has six fixed shelves and one solid swing door that is right hinged with a keyed door lock and a magnetic door gasket for a positive seal.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-FFP-14

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 14 Cu. Ft. Capacity
  • One solid swing door, right hinged
  • Six fixed shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • Probe access port (3/4″)
  • Powder coat exterior
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R290)
  • Utilizes ATEX and non-sparking components for safety
  • Two year parts and labor warranty



  • Exterior dimensions: 23.625″W x 24” D x 73″H
  • Note: This unit must have 4” clearance on sides and back for adequate ventilation
  • Manual defrost
  • 115V, 60 Hz, 3 Amps, 1/3 HP
  • UL/C-UL or ETL listed
  • Shipping weight: 195 lbs.
  • Microprocessor temperature controller
  • Adjustable operating temperature range:-15°C – -25°
  • Digital temperature display with sample simulated probe
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts

Related Products

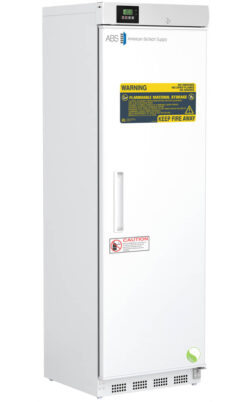

Tall, white laboratory refrigerator with a digital display on top, labeled “American BioTech Supply.” Warning labels indicate flammable material storage and a “Keep Fire Away” sign. A handle runs vertically on the right side of the door.
ABT-HC-FFP-14P 14 Cu. Ft. Premier Flammable Storage Manual Defrost Freezer
Product Number: ABT-HC-FFP-14P
A tall, white, upright laboratory freezer from American BioTech Supply. The door displays several safety stickers, including warnings and an eco-friendly label at the bottom. The freezer has a vertical handle and ventilation slots near the base.
ABT-HC-EFP-14 14 Cu. Ft. Standard Hazardous Location Freezer
Product Number: ABT-HC-EFP-14

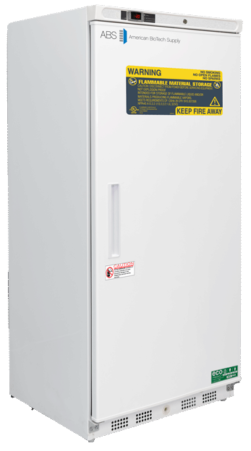

A tall, white laboratory refrigerator by American BioTech Supply stands upright. The door has warning labels, including a yellow sign reading “Flammable Material Storage” and “Keep Fire Away.” A handle is centered vertically on the door’s left edge.
