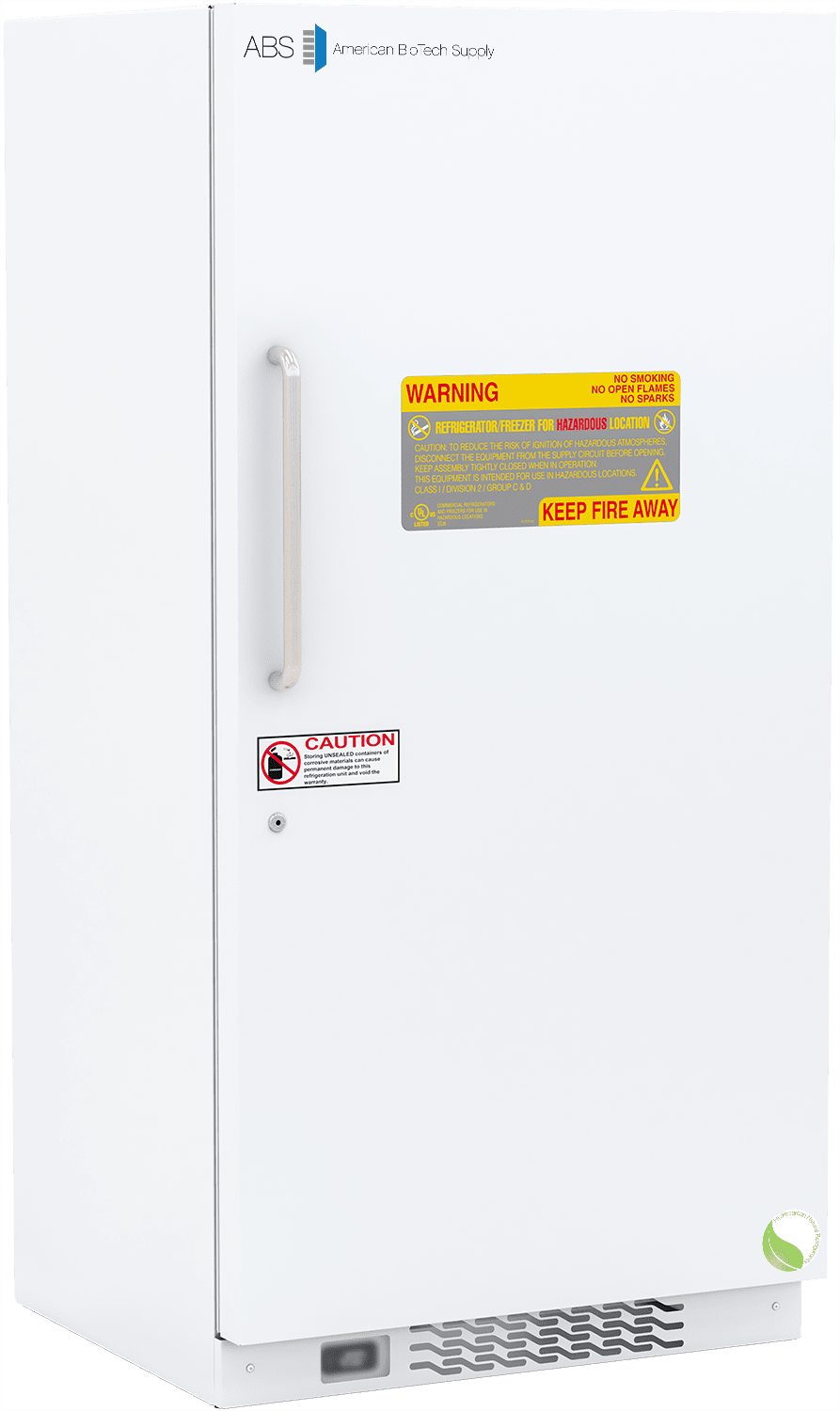

A tall, white laboratory freezer with a vertical handle on the left door. Warning labels, including a yellow “KEEP FIRE AWAY” sign, are displayed on the door. The lower section has vent slats and a small control panel. Brand ABS is at the top.

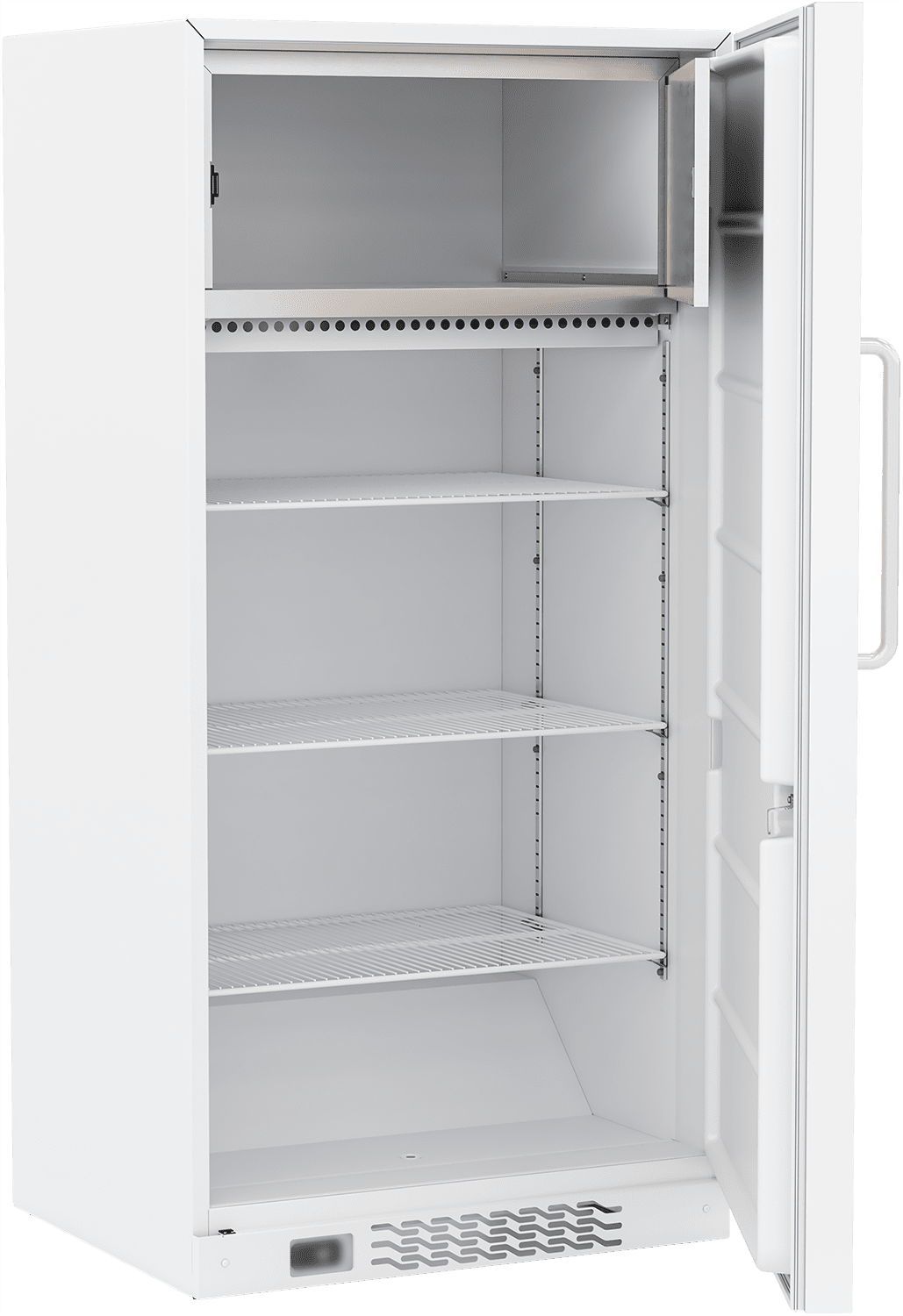

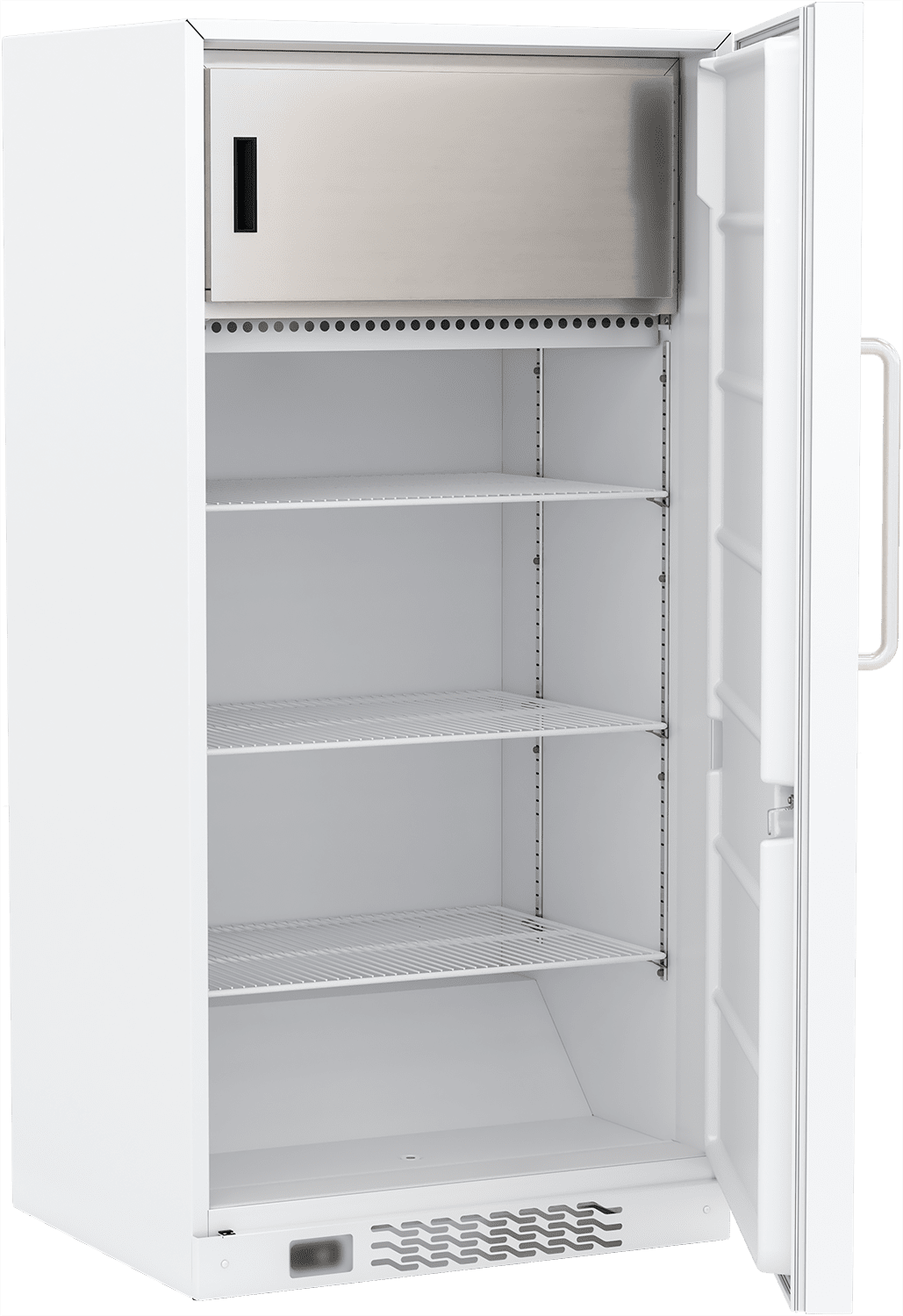

A white, upright refrigerator with an open door revealing three adjustable wire shelves, an empty interior, a vent at the bottom, and a silver compartment at the top. The inner door is plain with a long vertical handle.
Image DataSheet 25683 - Hazardous Location Material Storage Refrigerator and Freezer with Microprocessor Temp Control 11212023

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

30 Cu. Ft. Standard Hazardous Location Refrigerator/Freezer Combination Unit

Product Number: ABT-HC-ERCS-30 ★ NEW PRODUCT

This hazardous location refrigerator/freezer combo unit meets NFPA and OSHA guidelines for the safe storage of volatile materials in potentially hazardous work environments. This model is the ideal choice for industrial environments requiring strict safety protocols. It delivers 30 cubic feet of spacious storage and utilizes EPA SNAP compliant natural refrigerants for environmentally responsible operation. Powered by microprocessor temperature technology, this model delivers precise and stable temperature control.
Please note that this unit must be hardwired for safety. With low energy consumption and high safety standards, this model is a safe and efficient solution for hazardous laboratory locations and industrial settings.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-ERCS-30

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the temperature ranges for the refrigerator and freezer sections?

The refrigerator section operates from 0°C to 10°C and the freezer section operates from -15°C to -20°C.

Refrigeration System tab
What refrigerant does this unit use?

It uses EPA SNAP compliant R290 propane.

Refrigeration System tab
What are the electrical requirements and plug type?

The unit is rated at 3 Amps and uses a NEMA 5-15P plug with a 6 ft long cord. The facility requires 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle. Note that the Summary also states the unit must be hardwired for safety.

Details tab
How much clearance is needed around the unit for installation?

The equipment requires 4" of clearance around the back and sides for proper ventilation. Improper installation will void the warranty and lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What hazardous location certifications does this unit carry?

It is UL listed per UL 60335-1 and UL 60335-2-89 standards and c UL listed per CSA C22.2 No. 120. It meets NFPA and OSHA guidelines for hazardous locations, Class 1 Division II, Groups C&D.

Details tab
What alarms are included and is there a battery backup?

The unit includes audible and visual high/low-temperature alarms, a door ajar alarm, and remote alarm contacts for external alarm connection. Battery backup is non-applicable.

Temp Controller tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-ERCS-30

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity (cu. ft)
30 Cu. Ft. (25 Cu. Ft. Refrigerator/5 Cu. Ft. Freezer
Door
One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Interior
One (1) inner door (Freezer)
Shelves
Three (3) adjustable wire shelves (Refrigerator)
Mounting and Installation
Leveling legs
External probe access
Two (2) 3/4″ probe access port on rear wall
Insulation
EPA compliant high density urethane foam
Exterior materials
Powder coated steel
Access control
Keyed door lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor warranty
Product Weight (lbs)
353
Shipping Weight (lbs)
383
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard. Meets NFPA and OSHA guidelines for hazardous locations, Class 1 Division II, Groups C&D
Freezer Maximum temperature variation
+/- 4.5°C
Refrigerator Maximum temperature variation
+/- 3.5°C
Freezer temperature range
-15°C to -20°C
Refrigerator temperature range
0°C to 10°C
Pull down time to nominal operating temp
150 min (empty)
Energy Consumption (kWh/day)
4 kWh/day
Average Heat Rejection (BTU/hr)
570 BTU/hr
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R290 propane
Condenser
Static – exterior walls of cabinet  with auxiliary fan
Evaporator
Evaporator shelves
Defrost
Manual defrost
Controller technology
Microprocessor temperature controller with variable frequency compressor control
Battery Backup
Non-applicable
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts
Disclaimers
Defrosting of the unit will need to be performed periodically to prevent severe ice build-up and to ensure proper temperature control. Refrigerator temperatures are impacted by the freezer temperature, especially at coldest freezer settings. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change.  Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
