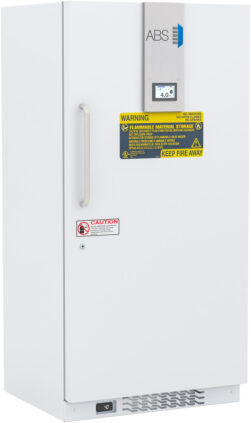

A white, upright ABS laboratory freezer with a silver handle, warning labels, a small digital display showing -20.9°C, and ventilation grilles at the bottom. The freezer is marked for flammable material storage and has a caution sticker.
A tall, white, upright refrigerator with its door open. The fridge has four empty wire shelves and a compartment at the bottom. The door has a beige handle and inner shelves molded into it. The interior appears clean and spacious.
ABT-HC-FFP-30-TS DataSheet

30 cu. ft. Touchscreen Flammable Storage Freezer

Product Number: ABT-HC-FFP-30-TS ★ NEW PRODUCT

This premier touchscreen flammable storage freezer redefines precision and user experience for critical sample storage. This model meets NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. These models offer exceptional temperature uniformity and extensive data logging and charting capabilities for auditing and compliance. Access a 24-hour temperature chart and data logging capabilities through an intuitive touchscreen interface. Experience an extensive array of customizable audible and visual alarms supported by battery backup and remote alarm contacts. These units utilize microprocessor temperature technology, protecting samples down to -25°C. They also feature natural hydrocarbon refrigerants for EPA SNAP compliance and eco-friendly cooling. This freezer provides an energy-efficient and high-performance solution for any laboratory needing flammable storage protection and data logging capabilities.

A minimalist leaf icon with a gradient color transition from blue at the top to green at the bottom. The leaf features a simple, stylized design with a vertical line down the center, resembling a stem, and two side veins.ul

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Description
Storage capacity (cu. ft) 30 Cu. Ft.
Door One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves Four (4) fixed evaporator shelves
Mounting and Installation Leveling legs
External probe access 3/4″ probe access port on rear wall
Insulation EPA compliant high density urethane foam
Exterior materials Powder coated steel
Access control Keyed door lock
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor parts warranty
Product Weight (lbs) 300
Shipping Weight (lbs) 330
Rated Amperage 3.3 Amps
Power Plug/Power Cord NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45
Uniformity (Cabinet air) +/- 3°C
Stability (Cabinet air) +/- 3°C
Maximum temperature variation (Cabinet air) 7°C Total
Energy Consumption (kWh/day) 5.2 kWh/day
Average Heat Rejection (BTU/hr) 740 BTU/hr
Pull down time to nominal operating temp 65 min (empty)
Compressor Hermetic, variable speed
Refrigerant EPA SNAP compliant R290 propane
Condenser Static – exterior walls of cabinet with auxiliary fan
Evaporator Evaporator shelves
Defrost Manual defrost
Controller technology Microprocessor temperature controller with variable frequency compressor control
Battery Backup Temperature display and alarm only (no active cooling)
Display technology Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24- hour temperature chart, and temperature data logging
Adjustable Temperature Range -15° C to -25° C
External alarm connection Remote alarm contacts
Alarms Audible and visual high and low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, resettable 1-point min/max history, alarm validation (audible, visual, and remote alarm), alarm mute with ring back
Display Probe Product simulator bottle with glass bead media
Disclaimers Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change. Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure. Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation. Performance may vary with environmental conditions, product load, or door openings.
