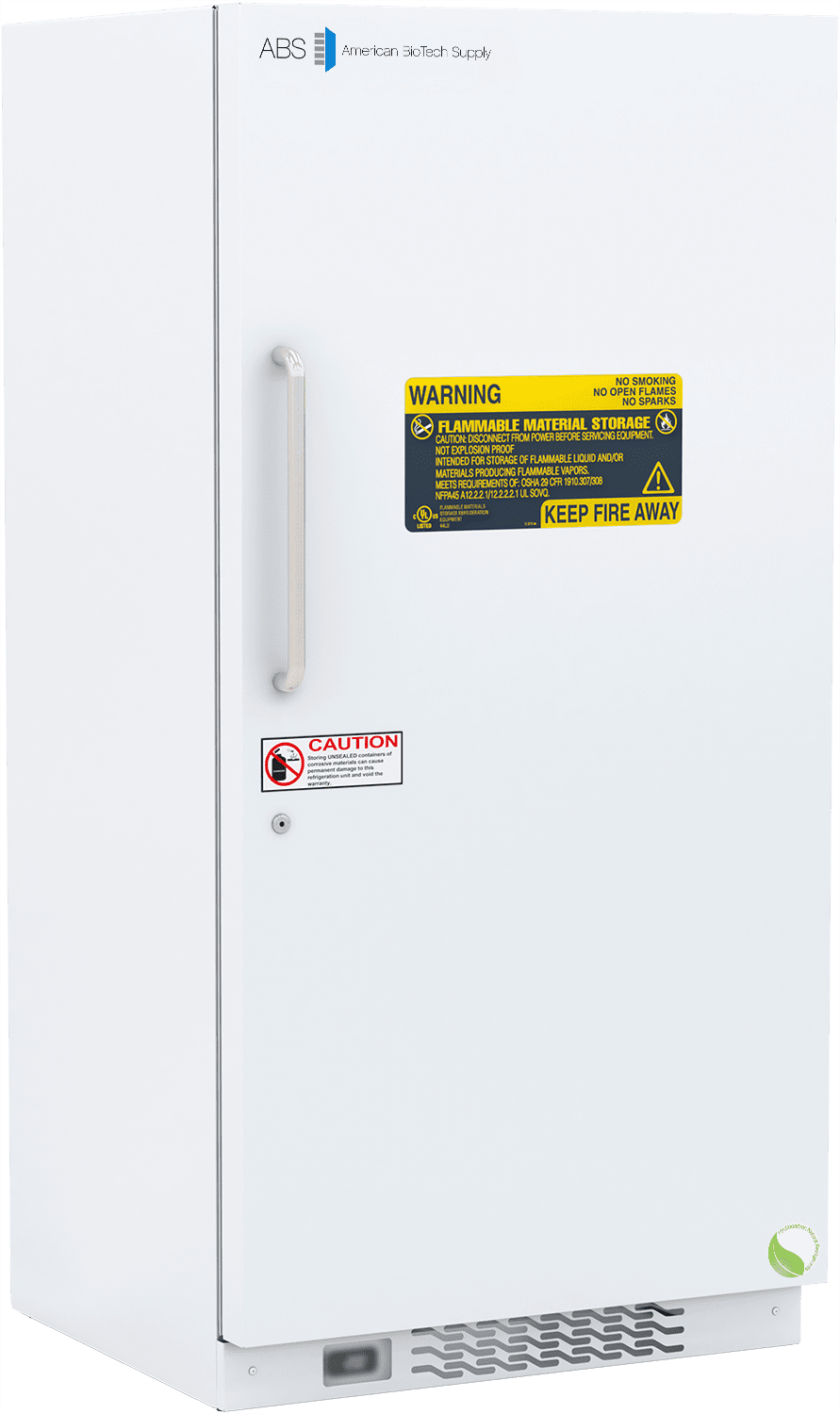

A white, upright laboratory freezer labeled ABS American Biotech Supply. The door has a vertical handle, multiple warning labels including Flammable Material Storage and caution symbols, and a vent at the bottom. The design is clean and industrial.

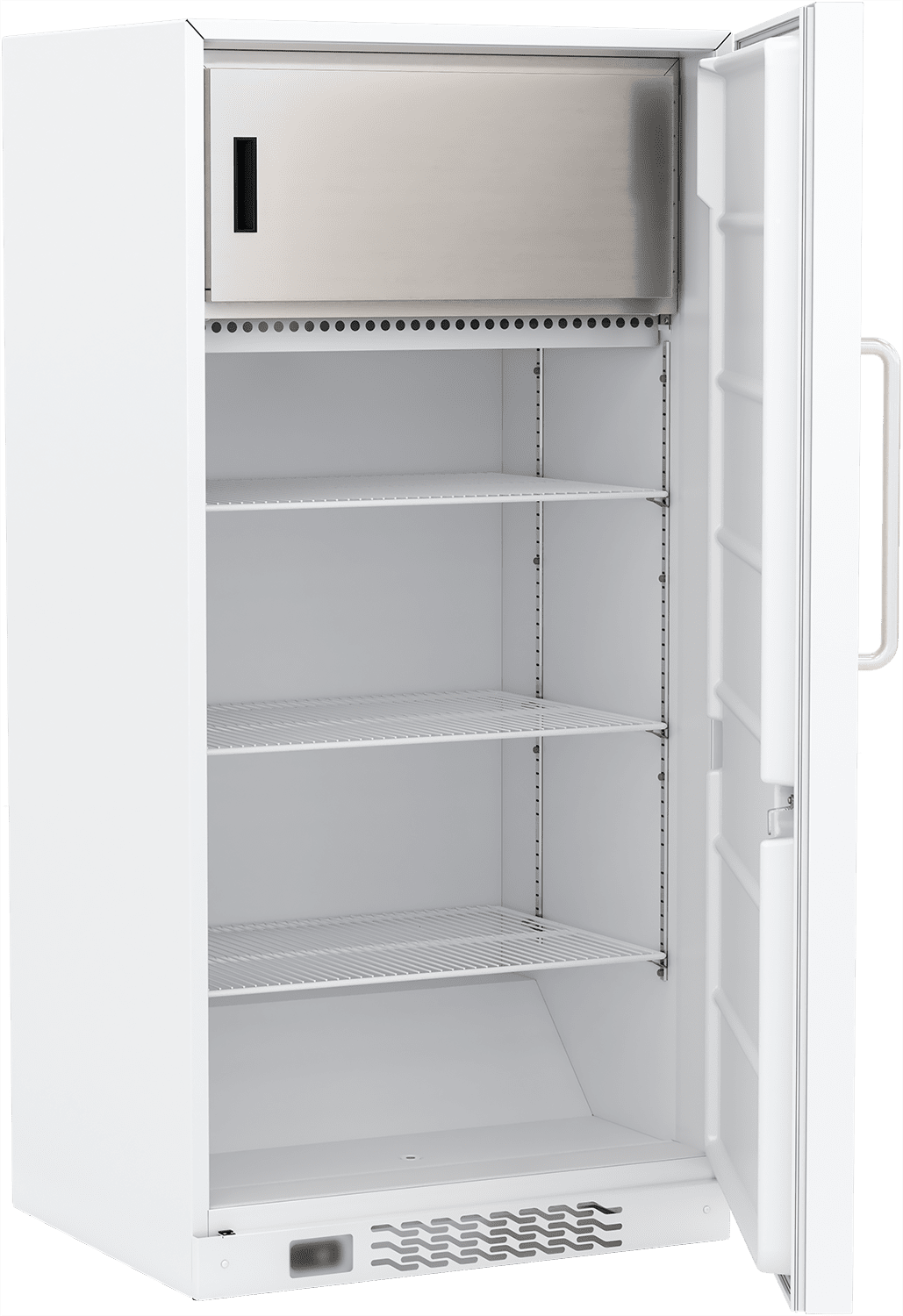

A white upright refrigerator with its door open, revealing three empty wire shelves, a stainless steel compartment at the top, and a white handle on the door. The interior is clean and well-lit, showing the vent at the bottom front of the unit.
Image DataSheet 26183 Manual - 30Cuft HC Freezer & DT Flammable REV 1

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit

Product Number: ABT-HC-FRCS-30 ★ NEW PRODUCT

This standard flammable storage refrigerator/freezer combination unit offers a secure solution for storing volatile materials in laboratory and industrial settings. This model meets NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. Its temperature control is powered by microprocessor technology for improved temperature precision and uniformity. A series of audible and visual alarms safeguards stored contents for added protection. Utilizing hydrocarbon refrigerants, this unit also meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and high safety standards, this model is an efficient and dependable solution for the safe storage of flammable substances.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-FRCS-30

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the temperature ranges for the refrigerator and freezer sections?

The refrigerator section operates at 0°C to 8°C and the freezer section operates at -15°C to -20°C.

Refrigeration System tab
How is the 30 cu ft capacity split between the refrigerator and freezer?

The unit provides 30 Cu. Ft. total, divided into a 25 Cu. Ft. refrigerator and a 5 Cu. Ft. freezer. It includes three (3) adjustable wire shelves in the refrigerator and one (1) inner door for the freezer.

Details tab
How much clearance does this unit need for installation?

The equipment requires 4" of clearance around the back and sides for proper ventilation. Improper installation will void the warranty and can lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What refrigerant does this unit use, and is it environmentally compliant?

It uses EPA SNAP compliant R290 propane refrigerant. The summary also notes that the unit meets EPA SNAP compliance.

Refrigeration System tab
What alarms are included on this unit?

The unit includes audible and visual high/low-temperature alarms, a door ajar alarm, and remote alarm contacts for connection to an external alarm system.

Temp Controller tab
What are the electrical requirements for this refrigerator/freezer?

It is rated at 3 Amps and uses a NEMA 5-15P plug with a 6 ft long cord. The facility must provide 110–120V AC with a 15A breaker and a NEMA 5-15 receptacle.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-FRCS-30

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity (cu. ft)
30 Cu. Ft. (25 Cu. Ft. Refrigerator/5 Cu. Ft. Freezer
Door
One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Interior
One (1) inner door (Freezer)
Shelves
Three (3) adjustable wire shelves (Refrigerator)
Mounting and Installation
Leveling legs
External probe access
Two (2) 3/4″ probe access port on rear wall
Insulation
EPA compliant high density urethane foam
Exterior materials
Powder coated steel
Access control
Keyed door lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor warranty
Product Weight (lbs)
353
Shipping Weight (lbs)
383
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45
Freezer Maximum temperature variation
+/- 4.5°C
Refrigerator Maximum temperature variation
+/- 2.5°C
Freezer temperature range
-15°C to -20°C
Refrigerator temperature range
0°C to 8°C
Pull down time to nominal operating temp
90 min (empty)
Energy Consumption (kWh/day)
4 kWh/day
Average Heat Rejection (BTU/hr)
570 BTU/hr
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R290 propane
Condenser
Static – exterior walls of cabinet  with auxiliary fan
Evaporator
Evaporator shelves
Defrost
Manual defrost
Controller technology
Microprocessor temperature controller with variable frequency compressor control
Battery Backup
Non-applicable
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts
Disclaimers
Defrosting of the unit will need to be performed periodically to prevent severe ice build-up and to ensure proper temperature control. Refrigerator temperatures are impacted by the freezer temperature, especially at coldest freezer settings. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change.  Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
