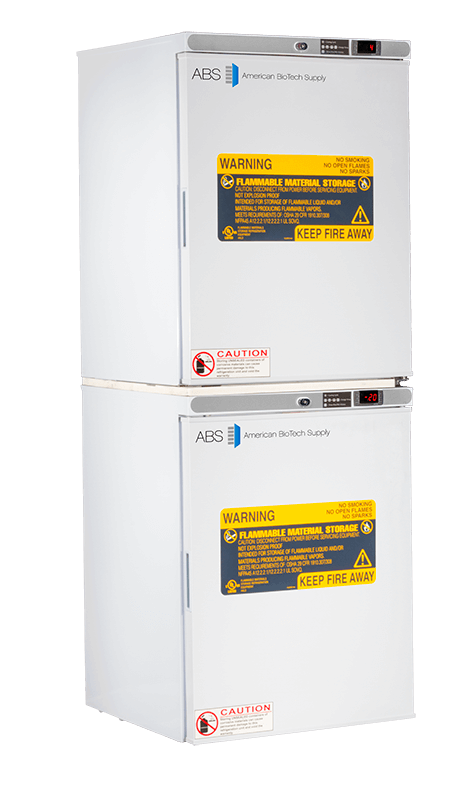

9 cu. ft. Capacity Standard Flammable Refrigerator and Freezer Combination

Product Number: ABT-HC-FRFC10

Green-Leaf-ABS  ul

The Standard  Flammable Storage Refrigerators Meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. There are no electrical components located in the interior of the unit and the compressor’s electrical components have been sealed in a vapor-proof enclosure for additional safety.

The Standard Dual Temp Combination Refrigerator / Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY.

The Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.


Request a Quote
Details
  • 9 Cu. Ft. capacity (5 Ref./4 Freezer)
  • Two exterior solid swing doors right hinged, not reversible
  • Two probe access ports (3/8″); one, refrigerator/one, freezer
  • 3 adjustable shelves refrigerator/2 fixed shelves (with 3 removable baskets) freezer
  • Forced Air Circulation (refrigerator)
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handle, refrigerator and freezer
  • Leveling legs
  • Stacking kit
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty
  • *Please note this unit requires 2 outlets
  • Exterior dimensions:
    Width: 23 5/8″
    Depth: 24 ¼”
    Height: 65 3/8″
  • Manual defrost freezer / cycle defrost refrigerator
  • 115V, 60 Hz, 1.2 Amps Refrigerator and 1.4 Amps Freezer, 1/9 HP Refrigerator and 1/8 HP Freezer
  • UL/C-UL listed
  • Units meet NFPA guidelines 45 and 70
  • Shipping weight: 205 lbs.
  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer
  • Adjustable operating temperature range:
    Refrigerator: 1°C to 10°C
    Freezer: -15°C to -25°C
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer
