14 Cu. Ft. Standard Flammable Storage Refrigerator

Product Number: ABT-HC-FRP-14
ALSO AVAILABLE IN THESE SIZES5 9 17 20 30 CU. FT.

Flammable storage freezers meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.

Our Standard Series refrigerators provide multi-functional features in a costeffective
design. All units run on natural, hydrocarbon refrigerant for
environmental health and energy efficiency.

Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-FRP-14

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this refrigerator operate in?

The adjustable operating temperature range is 1°-10°C, controlled by a microprocessor temperature controller with digital temperature display.

Temp Controller tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 23.625″ W x 24″D x 73″H, and the shipping weight is 200 lbs.

Specifications tab
What electrical requirements does this unit have?

It runs on 115V, 60 Hz, 2.5 Amps, 1/5 HP. The datasheet notes a NEMA 5-15 plug that conforms to UL471 requirements.

Specifications tab / Datasheet
What refrigerant does this unit use?

It uses natural hydrocarbon refrigerant (R600a), which does not contain hydrofluorocarbons and reduces global-warming potential while meeting EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Summary
How is the interior configured for shelving and door?

The unit has one solid swing door, right hinged and not reversible, with a keyed door lock. The interior includes 4 full and 1 half adjustable shelves.

Details tab
What alarms and monitoring features are included?

It has audible and visual high/low temperature alarms, remote alarm contacts, and a digital temperature display with 0.1° resolution. The datasheet also notes 2 probes: 1 in air and 1 in sample bottle.

Temp Controller tab / Datasheet
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-FRP-14

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 14 Cu. Ft. capacity
  • One solid swing door, right hinged, not reversible
  • 4 full / 1 half adjustable
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • One probe access port (3/4″)
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R600a)
  • Utilizes ATEX and non-sparking components for safety
  • Two year parts and labor warranty



  • Exterior dimensions:  23.625″ W x 24″D x 73″H
  • Cycle defrost
  • 115V, 60 Hz, 2.5 Amps, 1/5 HP
  • ETL listed
  • Units meet NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations
  • Shipping weight: 200 lbs.
  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°-10°C
  • Digital Temperature Display
  • Sample simulated digital temperature display; .1° Resolution
  • Audible and visual high/low temperature alarm
  • Remote alarm contacts

Related Products

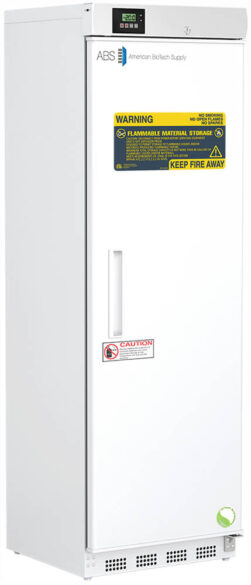

A tall, white laboratory refrigerator with a digital temperature display on top, warning labels about flammable material storage, a vertical handle, and vent grilles at the base. The brand “American BioTech Supply” is visible near the top.
