20 Cu. Ft. Standard Flammable Storage Refrigerator

Product Number: ABT-HC-FRP-20
ALSO AVAILABLE IN THESE SIZES5 9 14 17 30 CU. FT.

Flammable storage refrigerators meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.

Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-FRP-20

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this refrigerator operate at?

The adjustable operating temperature range is 1°-10°C, controlled by a microprocessor temperature controller with a standard digital temperature display at .1° resolution.

Temp Controller tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 30.75″ W x 29″ D x 74.625″ H, and the shipping weight is 260 lbs.

Specifications tab
What are the electrical requirements?

The unit runs on 115V, 60 Hz, draws 2.5 Amps, and has a 1/4 HP compressor. It uses a NEMA 5-15 plug conforming to UL471 requirements.

Specifications tab / Datasheet
Does this fridge meet NFPA requirements for flammable storage?

Yes. It meets NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations, and uses non-sparking and/or ATEX rated components for an intrinsically safe interior for flammables in sealed containers.

Summary
What shelving comes with the unit, and is the door reversible?

It includes 4 full adjustable shelves plus 1 half adjustable shelf. The door is a solid swing door, right hinged, and not reversible.

Details tab
What alarms and monitoring features are included?

The unit has audible and visual high/low temperature alarms, state-switching remote alarm contacts, and one 3/4″ probe access port on the rear wall for external monitoring.

Temp Controller tab / Datasheet
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-FRP-20

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 20 Cu. Ft. capacity
  • One solid swing door, right hinged, not reversible
  • 4 full adjustable shelves / 1 half adjustable shelf
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • One probe access port (3/4″)
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R600a)
  • Utilizes ATEX and non-sparking components for safety
  • Two year parts and labor warranty



  • Exterior dimensions:  30.75″ W x 29″ D x 74.625″H
  • Cycle defrost
  • 115V, 60 Hz, 2.5 Amps, 1/4 HP
  • ETL listed
  • Units meet NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations
  • Shipping weight: 260 lbs.
  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°-10°C
  • Standard Digital Temperature Display
  • Sample simulated digital temperature display; .1° Resolution
  • Audible and visual high/low temperature alarms
  • Remote alarm contacts

Related Products

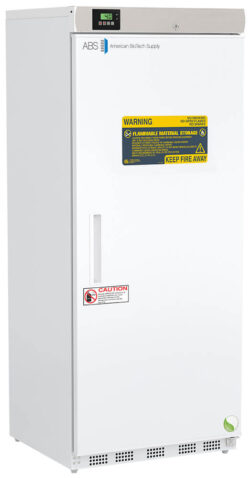

A tall, white American BioTech Supply refrigerator stands upright. Its door displays yellow warning labels about flammable material storage and fire risk, plus a caution sign. A small digital control panel is located at the top left above the door.
ABT-HC-FRP-20P 20 Cu. Ft. Premier Flammable Storage Refrigerator
Product Number: ABT-HC-FRP-20P

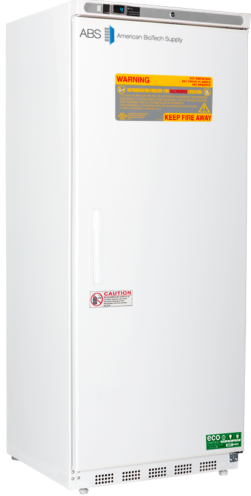

A tall, white laboratory freezer by American BioTech Supply designed as a hazardous location refrigerator, featuring warning and caution labels, a digital display at the top, a vent at the bottom, and an ECO energy sticker on the lower right corner.
ABT-HC-ERP-20 20 Cu. Ft. Standard Hazardous Location Refrigerator
Product Number: ABT-HC-ERP-20

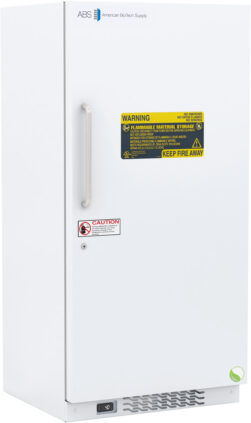

A white upright Standard Flammable Storage Refrigerator with a solid door, vertical left-side handle, and multiple warning labels, including yellow and red signs. Features a vent at the bottom and the American BioTech Supply logo at the top.
ABT-HC-FRS-30 30 Cu. Ft. Standard Flammable Storage Refrigerator
Product Number: ABT-HC-FRS-30

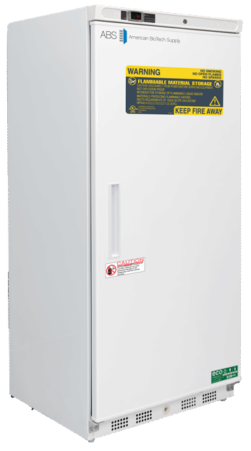

A tall, white, upright laboratory refrigerator with warning labels indicating storage of flammable material. The door has a vertical handle and the top panel displays the American Biotech Supply ABS logo. Vents are visible at the bottom.
