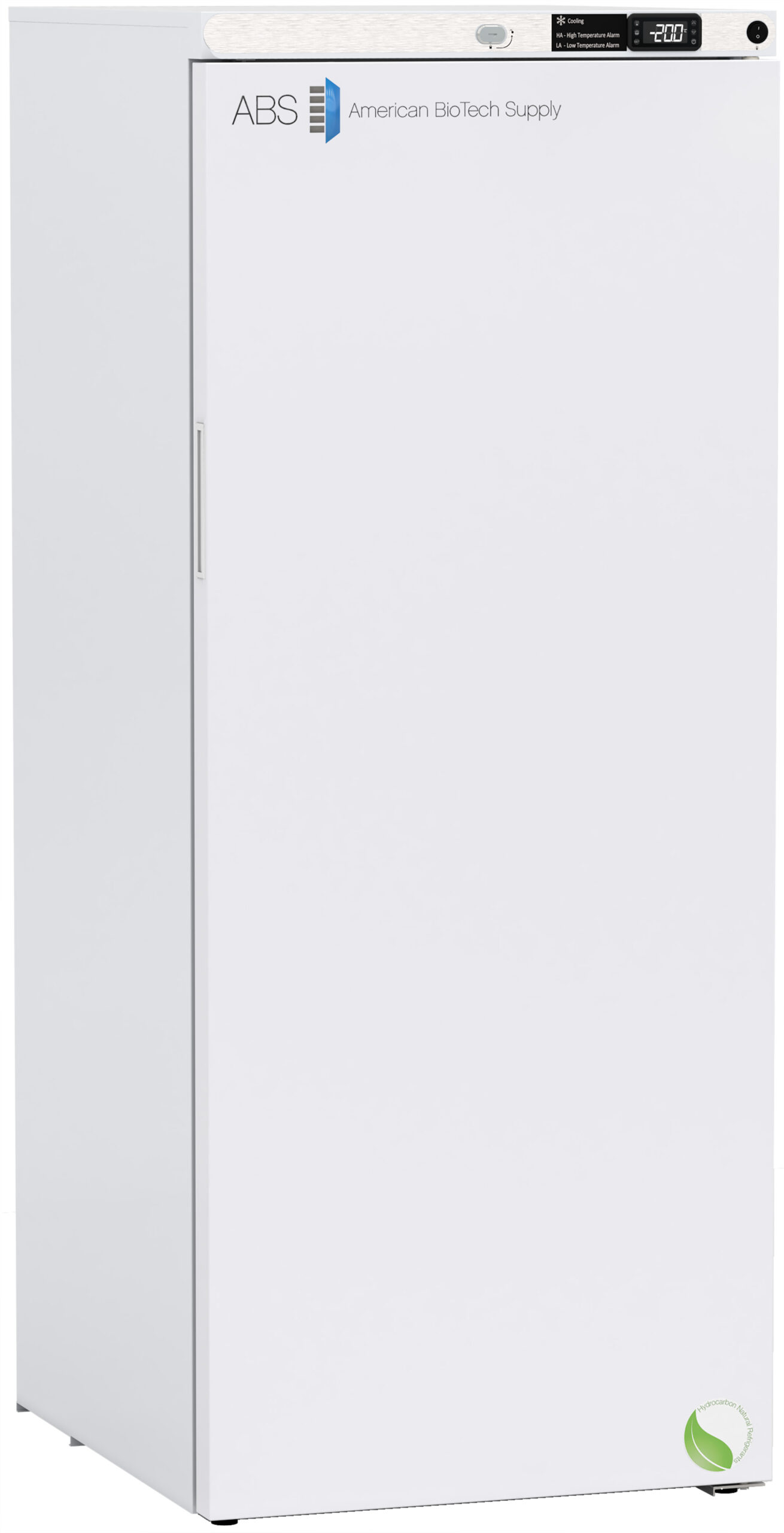

A tall, white upright laboratory freezer with a vertical handle. At the top, there is a digital display with the temperature reading and the “ABS American BioTech Supply” logo. The bottom right has a small green leaf symbol.

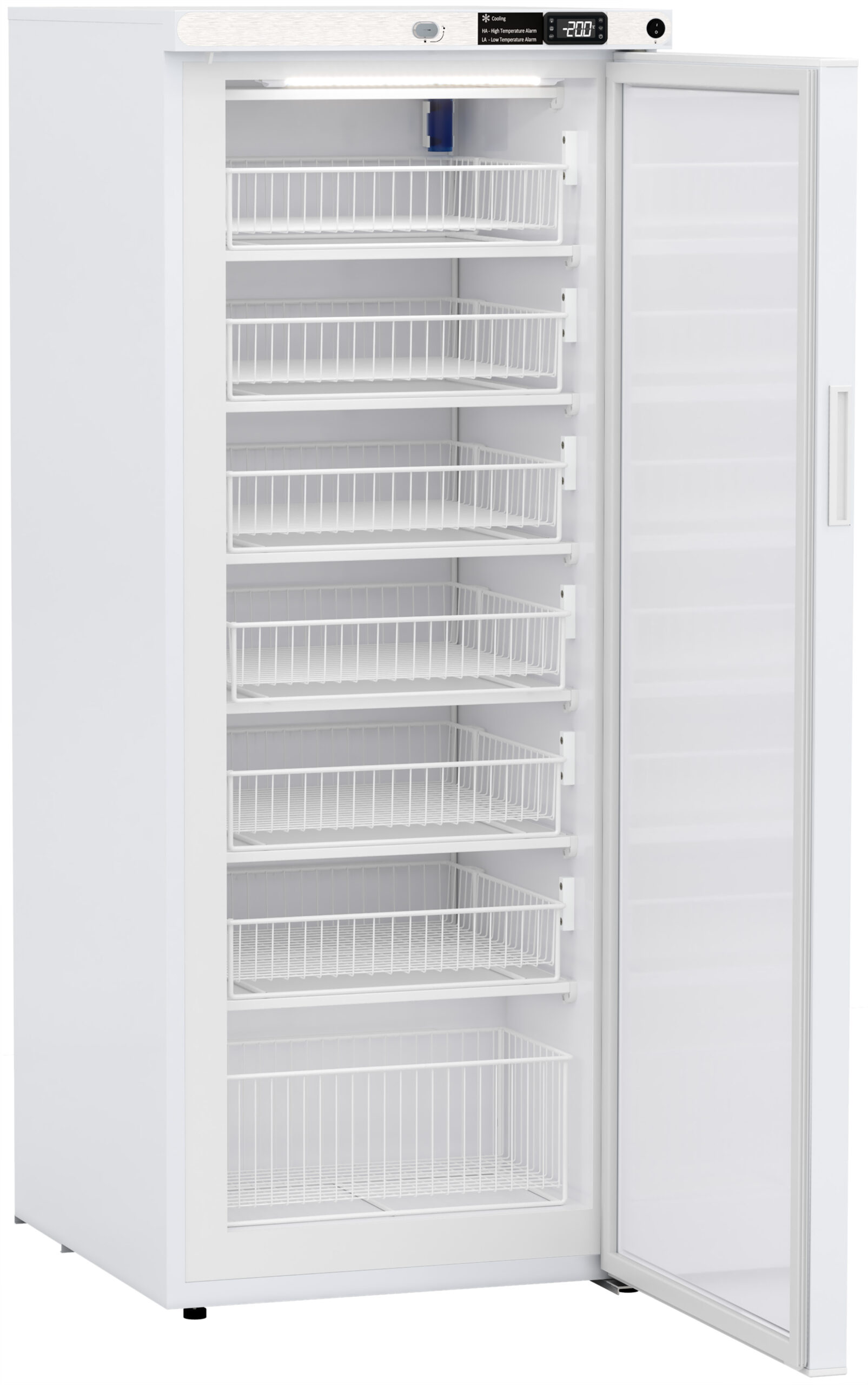

A tall, white medical refrigerator with a transparent door is open, revealing seven metal wire shelves inside. The top right displays a digital temperature panel. The fridge stands on short legs against a white background.
ABT-HC-MFP-10 DataSheet Manual 21634 REV2 - Undercounter and Mid-Size with Dual Probe V4.7 (10.5 FREEZER)

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

10.5 Cu. Ft. Premier Compact Solid Door Freezer

Product Number: ABT-HC-MFP-10 ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES14 15 17 20 30 CU. FT.
FAST TRACKINVENTORY
Fast Track Inventory — 5–8 business day lead time

This premier laboratory freezer is engineered to provide reliable cold storage in a compact footprint. Featuring a 10.5 cu. ft. capacity, this manual defrost freezer combines durable construction with precise temperature management to support daily laboratory operations. Designed with microprocessor temperature technology, this model delivers exceptional temperature uniformity and control. This freezer also utilizes environmentally friendly hydrocarbon refrigerant to deliver efficient cooling performance. When it comes to storage, pull-out shelving and baskets aid efficiency and maximize space. Built for dependable laboratory storage applications, this freezer offers the performance, security, and functionality required for critical sample preservation.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-MFP-10

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this freezer operate in?

The adjustable temperature range is -15°C to -25°C, managed by a microprocessor temperature controller.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior dimensions are 23.75″ wide, 26.125″ deep, and 59″ high. Product weight is 155 lbs. and shipping weight is 200 lbs.

Description tab
How much clearance does the unit need for installation?

It requires 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What refrigerant and defrost type does this freezer use?

It uses HFC-free R600a hydrocarbon refrigerant with a tube and grid condenser and shelf evaporator. Defrost is manual and will need to be performed periodically to prevent severe ice build-up.

Refrigeration System tab
What alarms and monitoring features are included?

The freezer has audible and visual high and low temperature alarms, remote alarm contacts for external alarm connection, and two probes — one in air and one in a bottle with glass beads.

Temp Controller tab
What are the electrical requirements and warranty?

It draws 2.3 rated amps and uses a NEMA 5-15 plug conforming to UL471; facility requirement is 110-120V AC, 15 A minimum. Warranty is two (2) years parts and labor, with a five (5) year compressor parts warranty.

Description tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-MFP-10

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity:
10.5 Cu. Ft.
Door:
One (1) swing solid door, right hinged, with magnetic gasket and stainless steel liner
Baskets:
Six (6) full baskets, One (1) half basket
Drawers:
Non-applicable
Mounting and installation:
Leveling legs
Interior lighting:
Shielded, switched LED lighting, full coverage, balanced spectrum
Airflow management:
Non-applicable
External probe access:
Probe access port (3/4″)
Insulation:
High density urethane foam cabinet insulation
Exterior materials:
White powder coated steel
Access control:
Keyed door lock
General warranty:
Two (2) year parts and labor warranty
Compressor warranty:
Five (5) year compressor parts warranty
Product weight (lbs.):
155
Shipping weight (lbs.):
200
Exterior width (in):
23.75″
Exterior depth (in):
26.125″
Exterior height (in):
59″
Rated Amperage:
2.3
Power Plug/Power Cord:
NEMA 5-15 Plug, conforms to UL471 requirements
Facility Electrical Requirement:
110-120V AC: 15 A (minimum)
Agency Listing and Certification:
ETL Listed
Refrigerant:
HFC-free refrigerant (R600a)
Condenser:
Tube and Grid
Evaporator:
Shelf Evaporator
Defrost:
Manual
Controller technology:
Microprocessor temperature controller
Adjustable temperature range:
-15°C to -25°C
External alarm connection:
Remote alarm contacts
Display probe:
2 ea. probes one in air and one in bottle with glass beads
Alarms:
Audible and visual high and low temperature alarms
Performance Note(s):
Non-applicable
Disclaimer(s):
Indoor use only, +18C to+26C (+65F to +78F), <70% RH. Specifications are subject to change. Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
