TempLog Premier
A white upright laboratory freezer with a digital display showing -30.9°C, a metallic handle, a caution sign about authorized personnel, vents at the bottom, and small wheels. The brand name ABS is displayed near the top. A tall, white commercial refrigerator with an open door, revealing four stainless steel shelves and a vented panel at the bottom. The fridge stands on four caster wheels and has a vertical handle on the right side of the door.
A white upright laboratory freezer with a digital display showing -30.9°C, a metallic handle, a caution sign about authorized personnel, vents at the bottom, and small wheels. The brand name ABS is displayed near the top.

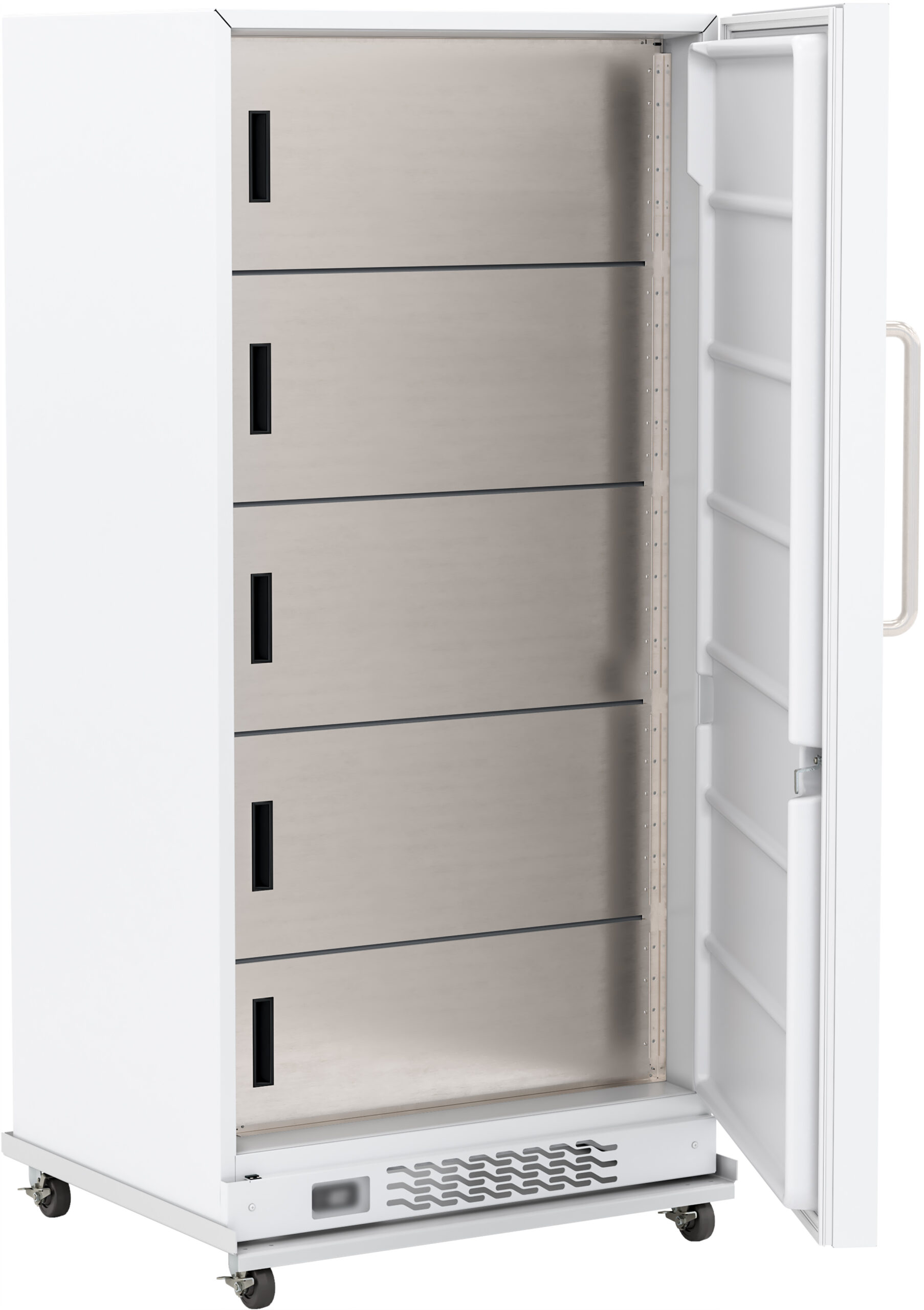

A tall, white commercial refrigerator with an open door, revealing four stainless steel shelves and a vented panel at the bottom. The fridge stands on four caster wheels and has a vertical handle on the right side of the door.

30 cu. ft. TempLog Premier Touchscreen Manual Defrost Laboratory Freezer -30C

Product Number: ABT-HC-MFP-3030-TS

This premier manual defrost touchscreen freezer redefines precision and user experience for critical sample storage. These models offer exceptional temperature uniformity and extensive data logging and charting capabilities for auditing and compliance. Access a 24-hour temperature chart and data logging capabilities through an intuitive touchscreen interface. Experience an extensive array of customizable audible and visual alarms supported by battery backup and remote alarm contacts. These units utilize microprocessor temperature technology, protecting samples down to -33°C. They also feature natural hydrocarbon refrigerants for EPA SNAP compliance and eco-friendly cooling. This freezer provides an energy-efficient and high-performance solution for any laboratory needing precise temperature control and data logging capabilities.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-MFP-3030-TS

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this freezer?

The adjustable temperature range is -27°C to -33°C, controlled by a microprocessor temperature controller with variable frequency compressor control.

Temp Controller tab
How much clearance does the unit need, and what are the room conditions for use?

The unit requires 4" of clearance around the back and sides for proper ventilation. It is for indoor use only at +18°C to +26°C (+65°F to +78°F) and <70% RH; improper installation will void the warranty.

Temp Controller tab
What alarms does the touchscreen controller provide?

It includes audible and visual high and low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, resettable 1-point min/max history, alarm validation (audible, visual, and remote), alarm mute with ring back, and customizable alarm time delay settings. Battery backup supports the temperature display and alarm only, with no active cooling.

Temp Controller tab
What are the electrical requirements and plug type?

The facility must provide 110–120V AC with a 15A breaker and a NEMA 5-15 receptacle. The unit draws 3.3 Amps and comes with a NEMA 5-15P plug on a 6 ft long cord.

Description tab
What refrigerant does this freezer use?

It uses EPA SNAP compliant R290 propane, a natural hydrocarbon refrigerant, with a hermetic variable speed compressor and a static condenser on the exterior cabinet walls with an auxiliary fan.

Performance tab
What warranty coverage is included?

The unit comes with a two (2) year parts and labor general warranty and a five (5) year compressor parts warranty.

Description tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-MFP-3030-TS

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
30 Cu. Ft.
Door
One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Interior
Five (5) inner fast-freeze compartments with doors for temperature maintenance
Shelves
Four (4) fixed evaporator shelves
Mounting and Installation
Caster platform
External probe access
3/4″ probe access port on rear wall
Insulation
EPA compliant high density urethane foam
Exterior materials
Powder coated steel
Access control
Keyed door lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor parts warranty
Product Weight (lbs)
330
Shipping Weight (lbs)
330
Rated Amperage
3.3 Amps
Power Plug/Power Cord
NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard.
Uniformity (Cabinet air)
+/- 2.5°C
Stability (Cabinet air)
+/- 3.5°C
Maximum temperature variation (Cabinet air)
7.5°C Total
Energy Consumption (kWh/day)
7.7 kWh/day
Average Heat Rejection (BTU/hr)
1100 BTU/hr
Pull down time to nominal operating temp
120 min (empty)
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R290 propane
Condenser
Static – exterior walls of cabinet with auxiliary fan
Evaporator
Evaporator shelves
Defrost
Manual defrost
Controller technology
Microprocessor temperature controller with variable frequency compressor control
Battery Backup
Temperature display and alarm only (no active cooling)
Display technology
Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24- hour temperature chart, and temperature data logging
Adjustable Temperature Range
-27° C to -33° C
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high and low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, resettable 1-point min/max history, alarm validation (audible, visual, and remote alarm), alarm mute with ring back, and customizable alarm time delay settings
Display Probe
Product simulator bottle with glass bead media
Disclaimers
Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change. Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure. Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation. Performance may vary with environmental conditions, product load, or door openings.
