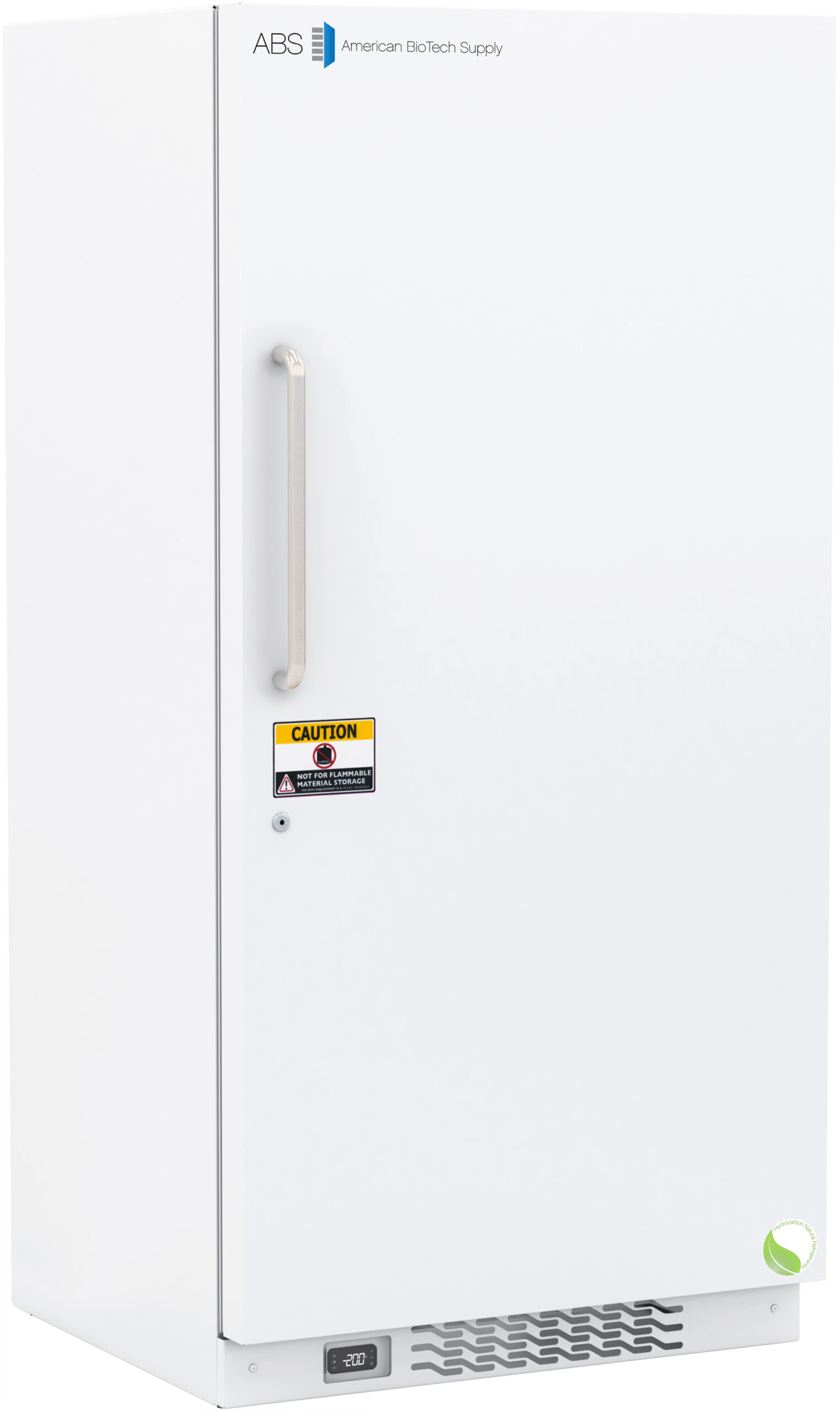

A tall, white, upright laboratory freezer with a vertical handle on the left side of the door. There is a caution sticker, a small digital display near the bottom, ventilation grilles, and an “American BioTech Supply” logo at the top.
A tall, white upright freezer with its door open, revealing four empty wire shelves inside. The door has a vertical handle and some shelves, and there is a small digital temperature display near the base of the freezer.
ABT-HC-MFS-30 DataSheet

30 Cu. Ft. Standard Manual Defrost Laboratory Freezer

Product Number: ABT-HC-MFS-30

This standard manual defrost freezer offers 30 cubic feet of versatile storage for laboratory environments. Its temperature control is powered by microprocessor technology, protecting samples down to -25°C. A series of audible and visual alarms safeguards stored contents. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and environmental benefits, this model is an efficient and dependable solution for general laboratory applications.

A minimalist leaf icon with a gradient color transition from blue at the top to green at the bottom. The leaf features a simple, stylized design with a vertical line down the center, resembling a stem, and two side veins.ul

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Description
Storage capacity (cu. ft) 30 Cu. Ft.
Door One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves Four (4) fixed evaporator shelves
Mounting and Installation Leveling legs
External probe access 3/4″ probe access port on rear wall
Insulation EPA compliant high density urethane foam
Exterior materials Powder coated steel
Access control Keyed door lock
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor parts warranty
Product Weight (lbs) 300
Shipping Weight (lbs) 330
Rated Amperage 3.3 Amps
Power Plug/Power Cord NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard.
Uniformity (Cabinet air) +/- 3°C
Stability (Cabinet air) +/- 3°C
Maximum temperature variation (Cabinet air) 7°C Total
Energy Consumption (kWh/day) 4.9 kWh/day
Average Heat Rejection (BTU/hr) 690 BTU/hr
Pull down time to nominal operating temp 65 min (empty)
Compressor Hermetic, variable speed
Refrigerant EPA SNAP compliant R290 propane
Condenser Static – exterior walls of cabinet with auxiliary fan
Evaporator Evaporator shelves
Defrost Manual defrost
Controller technology Microprocessor temperature controller with variable frequency compressor control
Battery Backup N/A
Display technology Digital temperature display, sample simulated digital temperature display; .1° resolution
Adjustable Temperature Range -15° C to -25° C
External alarm connection Remote alarm contacts
Alarms Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts
Display Probe Product simulator bottle with glass bead media
Disclaimers Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change. Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure. Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation. Performance may vary with environmental conditions, product load, or door openings.
