25 Cu. Ft. Premier Stainless Steel Laboratory Freezer (-20°C Operation) Left Hinged

Product Number: ABT-HC-SSF-25-LH
ALSO AVAILABLE IN THESE SIZES23 25 49 CU. FT.

These 25 cu. ft. freezers are built to last with their durable stainless-steel construction and
energy-efficient performance. Designed for laboratories and medical facilities, these units
deliver the accuracy and precision you need to support your critical substances.

Experience exceptional microprocessor temperature control and enjoy environmentally
friendly refrigerants for energy savings and sustainability. Choose this future-focused
freezer to take your lab to the next level of performance.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-SSF-25-LH

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this freezer?

The adjustable temperature range is -25°C to -15°C, controlled by a microprocessor temperature controller.

Temp Controller tab
What are the exterior dimensions?

External width is 27.625″, external depth is 32.25″, and external height is 84.5″.

Specifications tab
How much does the unit weigh and what does it ship at?

Product weight is 280 lbs and shipping weight is 305 lbs.

Details tab
What are the electrical requirements?

The freezer requires 115V, 60 Hz with a rated amperage of 7 Amps, and uses a NEMA 5-15 plug that conforms to UL471 requirements.

Details tab
What refrigerant and defrost type does it use?

It uses EPA SNAP compliant R290 refrigerant and auto defrost with an electric heating element. The electric heater assists in frost and ice removal but can raise temperatures within the freezer.

Specifications tab
What warranty is included?

The unit carries a two (2) year parts and labor warranty and a five (5) year compressor parts warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-SSF-25-LH

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
25 Cu. Ft.
Door
One solid, insulated, left hinged, stainless steel
Shelves
Four modular PVC coated wire shelves
Freezer Compartments
Non-applicable
Baskets
Non-Applicable
Mounting
Four, 3.5″ Casters, front locking
Interior lighting
6500K LED Strip mounted above door opening
Airflow management
Specialized plenum to improve uniformity
External probe access
3/4″ Probe access port
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
Ferritic stainless steel exterior
Access Control
Keyed Door Lock
General warranty
Two (2) year parts and labor warranty
Compressor Parts Warranty
Five (5) year compressor parts warranty
Product Weight (lbs)
280
Shipping Weight (lbs)
305
Rated Amperage
7 Amps
Power Plug/Power Cord
NEMA 5-15 Plug, conforms to UL471 requirements
Facility Electrical Requirement
115V, 60 Hz
Agency Listing and Certification
ETL Listed
Refrigerant
EPA SNAP compliant R290
  Ext Width (in)
Ext Depth (in)
Ext Height (in)
Defrost

27.625″ 32.25″
84.5″
Auto defrost with electric heating element
Controller technology
Microprocessor temperature controller
Display technology
Segmented display with LED indicators
Adjustable Temperature Range
-25°C to -15°C
External alarm connection
State switching remote alarm contacts
Alarms Display probe
Audible and visual high and low temperature alarms, door open Controller with glass bead media
Compressor
1 HP, Hermetic
Condenser
Tube and fin construction with fan
Evaporator
Tube and fin construction with forced draft cooling system
Disclaimers
Indoor use only, +18C to +26C (+65F to +78F), <70% RH Specifications are subject to change
Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of
the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures
within the freezer.

Related Products

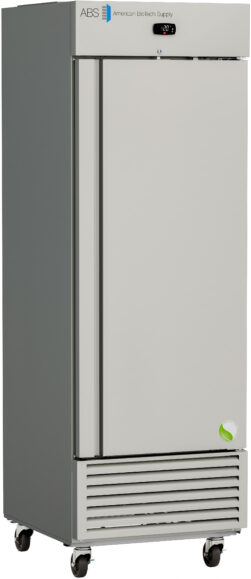

A tall, silver, single-door laboratory refrigerator by American BioTech Supply, shown on four wheels. The unit features a digital temperature display above the door and a vented lower front panel. The overall design is sleek and industrial.
