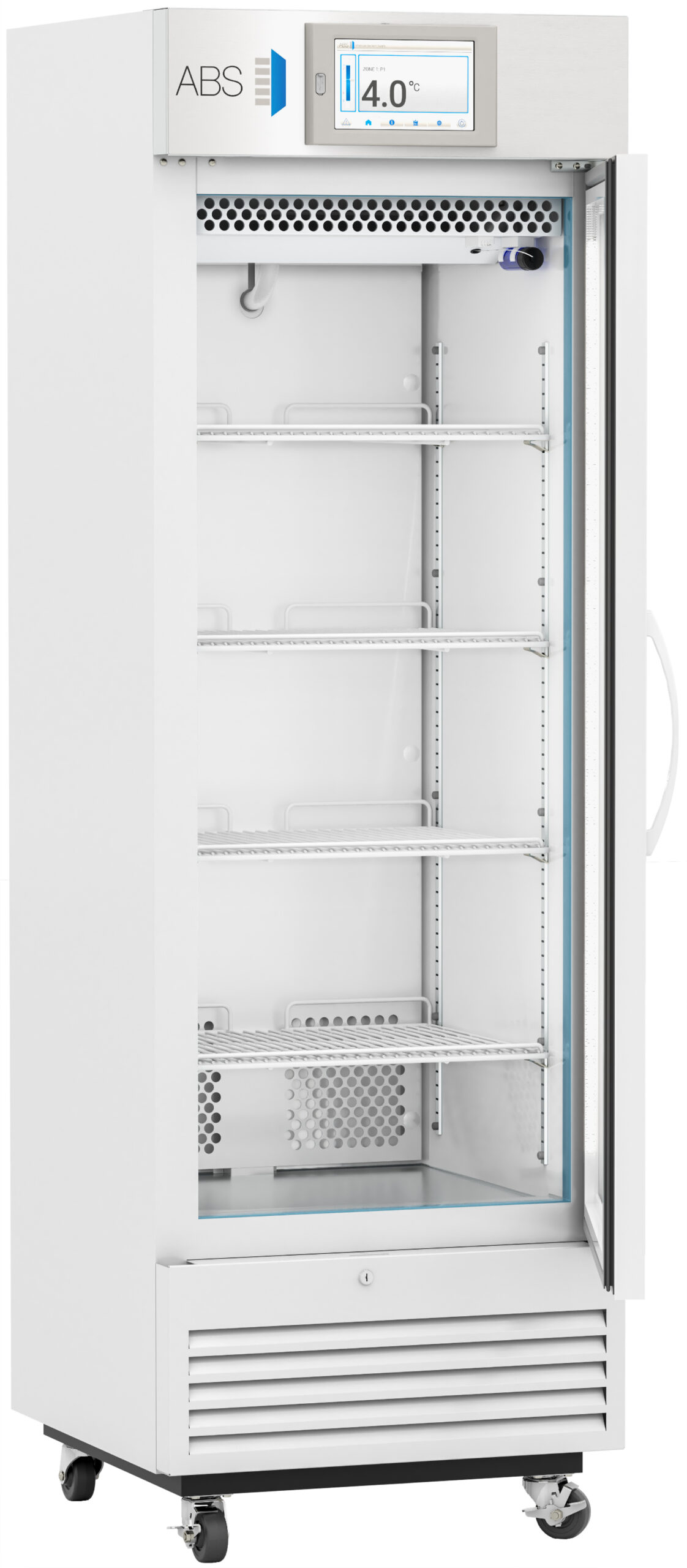

A tall, white, glass-door laboratory refrigerator on wheels with five adjustable wire shelves, a digital temperature display reading 4.0°C, vents at the top and bottom, a side handle, and the door open to show the empty interior.
ABT-VS-LP-16-TS DataSheet

16 Cu. Ft. Touchscreen Glass Door Laboratory Refrigerator

Product Number: ABT-VS-LP-16-TS

A minimalist leaf icon with a gradient color transition from blue at the top to green at the bottom. The leaf features a simple, stylized design with a vertical line down the center, resembling a stem, and two side veins.Black and white certification logo with INTERTEK at the top, a stylized ETL in the center, and the letters C on the left and US on the right, indicating compliance with Canadian and U.S. safety standards.

These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings. They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, a self-closing glass door, a keyed access lock, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Product Inquiry
Description
Storage capacity 16 Cu. Ft.
Door One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Four (4) adjustable shelves (adjustable in ½” increments)
Mounting and Installation Swivel casters – locking front casters
Interior lighting LED interior lights are safety shielded and switch controlled
Airflow Management Forced draft air circulation – Patented air flow technology
External probe access Probe access port (3/4″) on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials White powder coated steel
Access control Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty Three (3) year parts and labor warranty
Compressor warranty Seven (7) year compressor warranty
Product Weight (lbs) 245
Shipping Weight (lbs) 294
Rated Amperage 2 Amps
Power Plug/Power Cord NEMA 5-15 plug
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed: Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Compressor Hermetic, Variable speed
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle defrost
Exterior Width 25″
Exterior Depth 28.875″
Exterior Height 79″
Weight 245 lbs.
Digital Communication 4-20mA Output
Controller technology Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level (dBA): 40 dBA or less installed
Display technology 8″ touchscreen featuring: Security and Access: Multi-Level Password Protection: User, Supervisor, and Admin roles for access and control. Advanced
Controls: Customizable Passwords/PINs: Ensures tailored access for your team. Calibration Adjustments: Fine-tune temperature offsets for precise
measurements. Visual and User Interface: Intuitive Touch Screen: Pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable
Display Settings: Screen brightness, real-time temperature comparison to alarm points.
Stability – simulator ballast (°C): +/- 0.2° C
Average heat rejection (BTU/h): 330 BTU/h
Max temp variation – cabinet air (°C): +/- 1.0° C
Pull down time to nominal operating temp
<30 min (empty)
Adjustable Temperature Range 2° C to 15° C
Alarms: Audible & Visual Alarms: Customizable sounds and volumes; silent mode with visual persistence. Alarm Delays: Adjustable settings for door, temperature, and
power loss alarms to prevent nuisance alerts. Ring-Back Functionality: Audible alarms re-engage after a preset delay if the condition persists.
Battery Backup: High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
Energy consumption (KWh/day): 1.2 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
