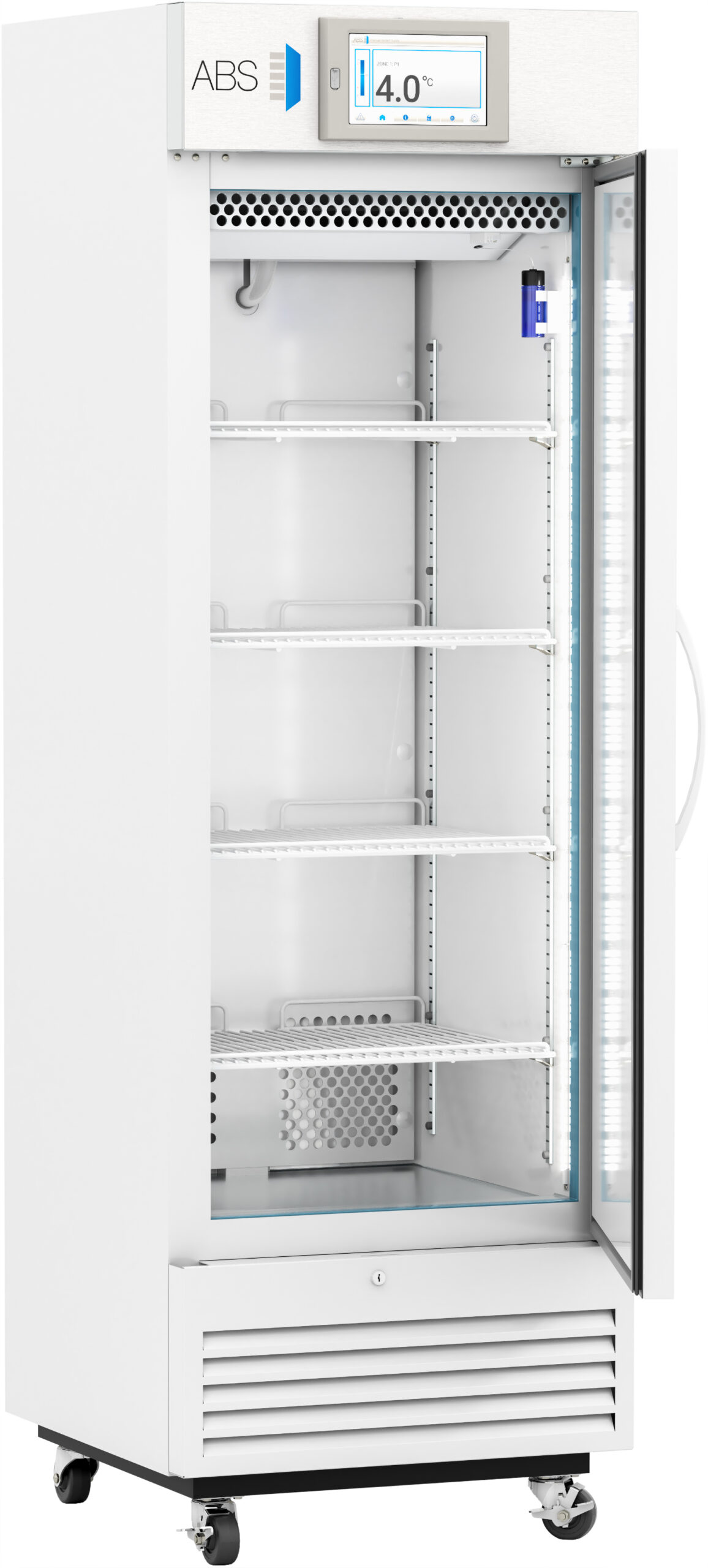

A tall, white laboratory refrigerator with a glass door stands open, revealing five empty wire shelves. A digital display on top shows a temperature of 4.0°C. The unit has wheels and a vent at the bottom, with interior lighting and a visible thermometer inside.
ABT-VS-16S-TS DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

16 Cu. Ft. TempLog Premier Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-16S-TS ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 23 26 36 49 72 CU. FT.

These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings. They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, a self-closing solid door, a keyed access lock, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-16S-TS

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The adjustable temperature range is 2° C to 15° C, with resolution of 0.1° C/0.2° F and C°/F° switchable display.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior dimensions are 25″ wide, 28.875″ deep, and 79″ tall. Product weight is 237 lbs. and shipping weight is 277 lbs.

Details tab
How much clearance does it need for installation?

The refrigerator requires a minimum 2” of clearance at the back and sides of the unit for proper ventilation.

Temp Controller tab
What refrigerant and defrost type does it use?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with cycle defrost.

Refrigeration System tab
What are the electrical requirements?

The unit runs on 110–120V AC with a 15A breaker and a NEMA 5-15 receptacle. Rated amperage is 2.

Details tab
What warranty is included?

It comes with a three (3) year parts and labor warranty and a seven (7) year compressor warranty.

Details tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-16S-TS

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity
   16 Cu. Ft.
Door
   One (1) swing solid door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
   Four(4) adjustable shelves (adjustable in ½” increments)
Mounting and Installation
   Swivel casters – locking front casters
Interior lighting
   LED interior lights are safety shielded and switch controlled
External probe access
   Probe access port (3/4″) on rear wall
Airflow Management
   Forced draft air circulation – Patented air flow technology
Exterior materials
   White powder coated steel
Insulation
   Cabinet is foamed-in-place with EPA compliant high density urethane foam
Access Control
   Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
   Three (3) year parts and labor warranty
Compressor warranty
   Seven (7) year compressor warranty
Product Weight (lbs.)
   237
Shipping Weight (lbs.)
   277
Rated Amperage
   2
 Exterior Width (in)
  25″
 Exterior Depth (in)
  28.875″
 Exterior Height (in)
  79″
Rated Amperage
  NEMA 5-15 plug
Power Plug/Power Cord
  110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed.
Compressor
Hermetic, Variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle defrost
Controller technology
   Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level (dBA)
   40 dBA or less installed
Display      technology
8″ touchscreen featuring: Security and Access: Multi-Level Password Protection: User, Supervisor, and Admin roles for access and control. Advanced Controls: Customizable Passwords/PINs: Ensures tailored access for your team. Calibration Adjustments: Fine-tune temperature offsets for precise measurements. Visual and User Interface: Intuitive Touch Screen: Pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable Display Settings: Screen brightness, real-time temperature comparison to alarm points.
Stability – simulator ballast (°C):
   +/- 0.2° C
Average heat rejection (BTU/h)
  330 BTU/h
Max temp variation – cabinet air (°C)
   +/- 1.0° C
Adjustable Temperature Range
   2° C to 15° C
External alarm connection
   Remote alarm contacts
Digital Communication
   4-20mA Output
Battery Backup
   High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
Energy consumption (KWh/day)
1.2 KWh/day
Display probe
   Product simulator bottle with glass bead media
Pull down time to nominal operating temp
   < 30 min (empty)
Alarms
Audible & Visual Alarms: Customizable sounds and volumes; silent mode with visual persistence. Alarm Delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-Back Functionality: Audible alarms re-engage after a preset delay if the condition persists.
Disclaimer(s)
Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings

Related Products

A tall, white medical refrigerator with a glass door, digital temperature display reading 4.0°C, four empty wire shelves, and ventilation at the bottom. The unit is on wheels and has a handle on the left side of the door.
ABT-VS-LP-16-TS 16 Cu. Ft. TempLog Premier Touchscreen Glass Door Laboratory Refrigerator with Variable Speed Compressor
Product Number: ABT-VS-LP-16-TS
A tall, white, single-door laboratory refrigerator on wheels features a digital display reading 4.0°C at the top, a vertical handle, ventilation grilles at the bottom, and a small green leaf logo near the lower right corner.
ABT-VS-23S-TS 23 Cu. Ft. TempLog Premier Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor
Product Number: ABT-VS-23S-TS

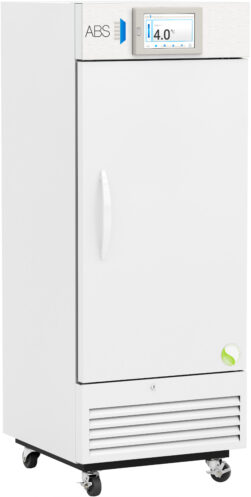

A tall, white laboratory refrigerator with a digital control panel displaying 4.0°C, a single vertical handle on the front, ventilation grilles at the bottom, brand label “ABS” on top, and four wheels for mobility.
