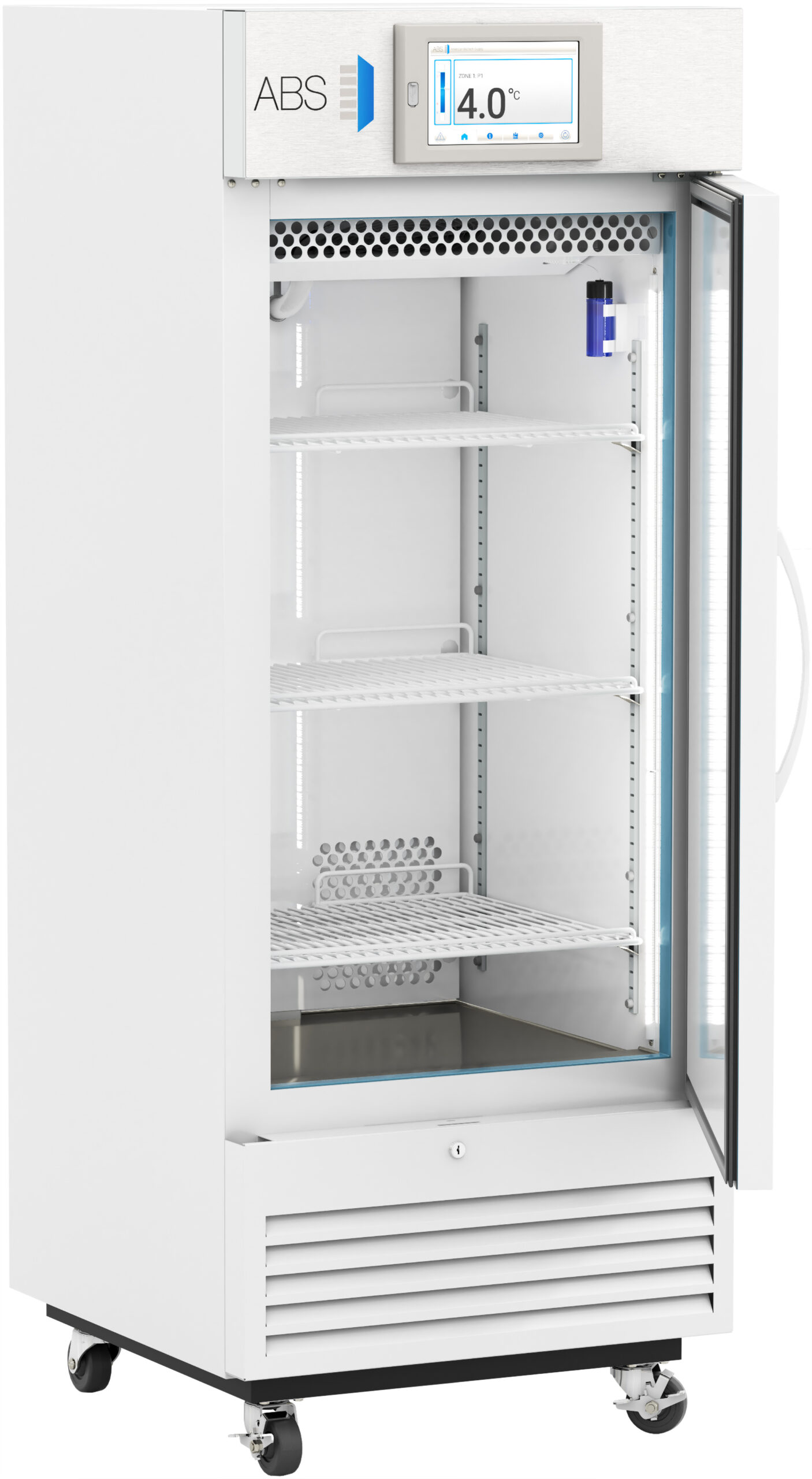

A tall, white medical refrigerator with a transparent glass door is open, revealing three empty wire shelves inside. The digital display on top shows a temperature of 4.0°C. The unit is on wheels and labeled “ABS” in the upper left corner.
ABT-VS-12S-TS DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

12 Cu. Ft. TempLog Premier Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-12S-TS ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES16 23 26 36 49 72 CU. FT.

These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings. They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, a self-closing solid door, a keyed access lock, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-12S-TS

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range on this refrigerator?

The adjustable temperature range is 2° C to 15° C, with a resolution of 0.1° C/0.2° F and C°/F° switchable display. Stability is +/- 0.2° C based on the simulator ballast, and max cabinet air temperature variation is +/- 1.0° C.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior is 25″ wide, 29″ deep, and 66″ high. Product weight is 187 lbs and shipping weight is 227 lbs.

Details tab
How much clearance does it need for installation?

The refrigerator requires a minimum 2″ of clearance at the back and sides for proper ventilation.

Temp Controller tab
What refrigerant does it use and how does it defrost?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with a hermetic variable speed compressor. Defrost is cycle defrost.

Refrigeration System tab
What alarms and remote monitoring options are included?

It has customizable audible and visual alarms with silent mode, adjustable alarm delays for door, temperature, and power loss, and ring-back functionality. External connectivity includes remote alarm contacts and 4-20mA output, plus a high capacity 12V battery backup for controller temperature and alarm display and logging only (no cooling active).

Temp Controller tab
What are the electrical requirements?

The unit is rated at 2 Amps and uses a NEMA 5-15 plug. The facility must provide 110 – 120V AC, a 15A breaker, and a NEMA 5-15 receptacle.

Details tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-12S-TS

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity
12 Cu. Ft.
Door
One (1) swing solid door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Three (3) adjustable shelves (adjustable in ½” increments)
Drawers
Non-applicable
Mounting and Installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation – Patented air flow technology
External probe access
Probe access port (3/4″) on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
Three (3) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product Weight (lbs)
187
Shipping Weight (lbs)
227
Exterior Width (in)
25″
Exterior Depth (in)
29″
Exterior Height (in)
66″
Rated Amperage
2 Amps
Power Plug/Power Cord
NEMA 5-15 plug
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed.
Compressor
Hermetic, Variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle defrost



Controller technology
Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
 Noise pressure       level (dBA)
40 dBA or less installed
 Display         technology
8″ touchscreen featuring: Security and Access: Multi-Level Password Protection: User, Supervisor, and Admin roles for access and control. Advanced Controls: Customizable Passwords/PINs: Ensures tailored access for your team. Calibration Adjustments: Fine-tune temperature offsets for precise measurements. Visual and User Interface: Intuitive Touch Screen: Pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable Display Settings: Screen brightness, real-time temperature comparison to alarm points
Stability – simulator ballast (°C)
+/- 0.2° C
Average heat    rejection (BTU/h)
 330 BTU/h
Max temp        variation-cabinet air(°C)
+/- 1.0° C
Adjustable Temperature Range
2° C to 15° C
External alarm connection
Remote alarm contacts
Digital    Communication
4-20mA Output
Battery Backup
High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
Energy consumption (KWh/day)
1.2 KWh/day
Display probe
Product simulator bottle with glass bead media
Pull down time to nominal operating  temp
< 30 min (empty)
Alarms
Audible & Visual Alarms: Customizable sounds and volumes; silent mode with visual persistence. Alarm Delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-Back Functionality: Audible alarms re-engage after a preset delay if the condition persists.
Disclaimer(s):
Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
